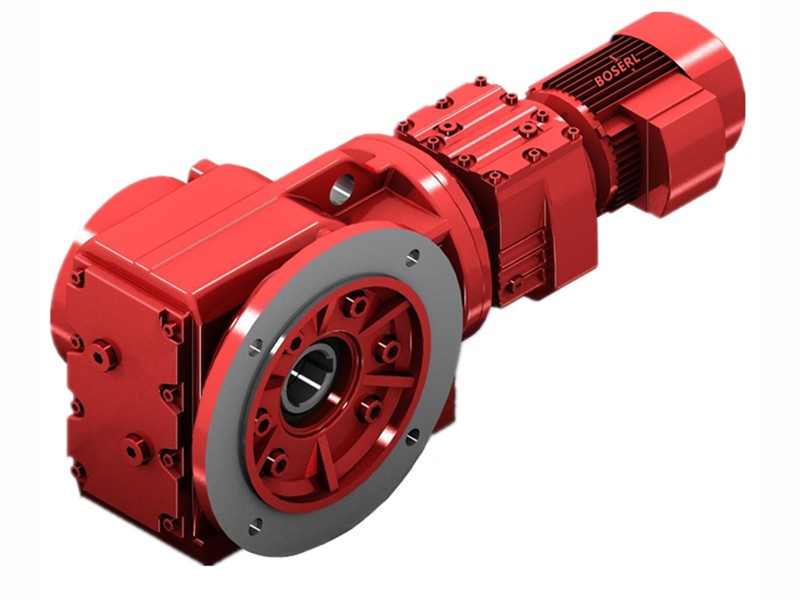

KAF87RF57-Y0.75KWDetailed Information
Keyword: how much kw power does it have
KAF87RF57-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y0.75KW | 726 | 0.75KW | 2.00r/min | 3270N.m | 119kg | 26500N | 0.80 |
| KAF87RF57-Y0.75KW | 638 | 0.75KW | 2.20r/min | 2890N.m | 119kg | 27000N | 0.95 |
| KAF87RF57-Y0.75KW | 562 | 0.75KW | 2.60r/min | 2530N.m | 119kg | 27500N | 1.05 |
| KAF87RF57-Y0.75KW | 474 | 0.75KW | 3.00r/min | 2130N.m | 119kg | 27900N | 1.25 |
| KAF87RF57-Y0.75KW | 426 | 0.75KW | 3.40r/min | 1910N.m | 119kg | 28100N | 1.40 |
| KAF87RF57-Y0.75KW | 373 | 0.75KW | 3.80r/min | 1680N.m | 119kg | 28300N | 1.60 |
| KAF87RF57-Y0.75KW | 330 | 0.75KW | 4.40r/min | 1470N.m | 119kg | 28500N | 1.85 |
| KAF87RF57-Y0.75KW | 294 | 0.75KW | 4.90r/min | 1310N.m | 119kg | 28600N | 2.0 |
| KAF87RF57-Y0.75KW | 250 | 0.75KW | 5.70r/min | 1130N.m | 119kg | 28700N | 2.4 |
| KAF87RF57-Y0.75KW | 236 | 0.75KW | 6.10r/min | 1070N.m | 119kg | 28700N | 2.5 |
| KAF87RF57-Y0.75KW | 201 | 0.75KW | 7.10r/min | 910N.m | 119kg | 28800N | 3.0 |
Kaf87rf57-y90m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y90M4 | 330 | 1.5KW | 4.30r/min | 3020N.m | 126kg | 26900N | 0.90 |
| KAF87RF57-Y90M4 | 294 | 1.5KW | 4.90r/min | 2700N.m | 126kg | 27300N | 1.00 |
| KAF87RF57-Y90M4 | 250 | 1.5KW | 5.70r/min | 2320N.m | 126kg | 27700N | 1.15 |
| KAF87RF57-Y90M4 | 236 | 1.5KW | 6.00r/min | 2190N.m | 126kg | 27900N | 1.25 |
| KAF87RF57-Y90M4 | 201 | 1.5KW | 7.10r/min | 1860N.m | 126kg | 28200N | 1.45 |
| KAF87RF57-Y90M4 | 183 | 1.5KW | 7.80r/min | 1690N.m | 126kg | 28300N | 1.60 |
K87rf57-y0. 75 kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka87brf57-y0. 75kw bottom foot hollow axis fitted with tilt gear - umbrella gear reduction power
Kv87brf57-y0. 75kw bottom foot flow axis with tilt gears - umbrella gear reduction power
Kh87brf57-y0. 75kw foot hollow axle locks installed with tilt gears -Right-angle shaft reducer motor
Frf87rf57-y0. 75 kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf87rf57-y0. 75 kwb5 installation of tilt gears - umbrella gear reduction power
Frf87rf57-y0. 75 kwb5 installation of tilt gear - umbrella gear-reducing power
Khf87rf57-y0. 75 kwb5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87rf57-y0. 75kw hollow axle slash gears - umbrella gear reduction power
Kv87rf57-y0. 75kw spaced axles with tilt gears - umbrella gear reduction power
Kh87rf57-y0. 75kw hollow axle locks the slant gears - an umbrella gear-reducing motor
Installation of tilt gears on kt87rf57-y0. 75kw hollow axis - umbrella gear-reducing power
Kaz87rf57-y0. 75 kwb14 installation of tilt gear - umbrella gear reduction power
Installation of an oscillating gear - an umbrella gear-reducing power plant on the flannel axle kvz87rf57-y0. 75 kwb14
Dhz87rf57-y0. 75 kwb14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

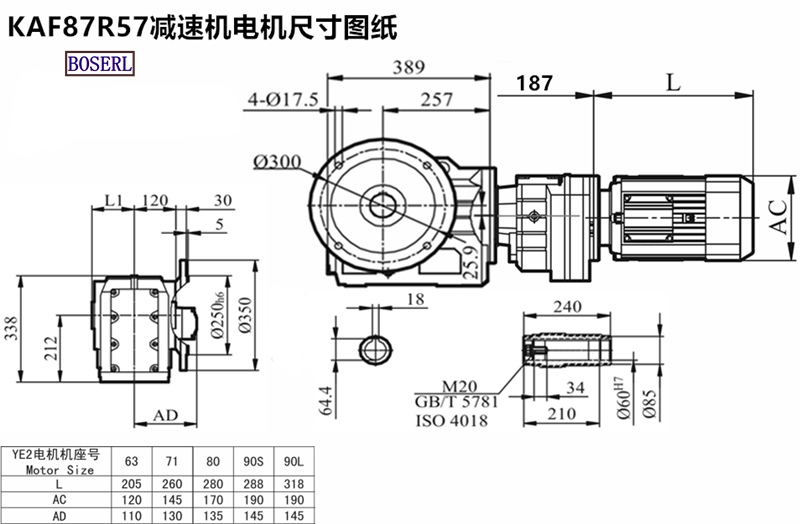

KAF87RF57-Y0.75KWInduction Motor 3Ph motors installed size drawings
Kaf87rf57-y0. 75kw power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: The size of the 75kw electric power with a hollow cup speed-retarder kaf87rf57-y0. 75kw kaf87rf57-y90m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF87RF57Y0.75KW减速机样本 |
|
| KAF87RF57Y0.75KW减速机三维图纸 |
|
