KF107DM132MC4Detailed Information

prevnext

KF107DM132MC4

TEL：Email:[email protected]

详细信息

Keywords: 75kw power-motion decelerator_kf107dm132mc4_kf107dm132ml4

KF107DM132MC4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF107DM132MC4	143.47	7.5KW	10rpm	7110N.m	320Kg	65000N	1.15
KF107DM132MC4	121.46	7.5KW	12rpm	6020N.m	320Kg	65000N	1.35
KF107DM132MC4	112.41	7.5KW	13rpm	5570N.m	320Kg	65000N	1.45
KF107DM132MC4	100.75	7.5KW	14rpm	4990N.m	320Kg	65000N	1.6
KF107DM132MC4	90.96	7.5KW	16rpm	4500N.m	320Kg	64100N	1.75
KF107DM132MC4	82.61	7.5KW	17rpm	4090N.m	320Kg	63100N	1.95
KF107DM132MC4	73.3	7.5KW	20rpm	3630N.m	320Kg	61800N	2.2
KF107DM132MC4	66.52	7.5KW	22rpm	3290N.m	320Kg	60700N	2.4
KF107DM132MC4	57.17	7.5KW	25rpm	2830N.m	320Kg	59000N	2.8
KF107DM132MC4	49.9	7.5KW	29rpm	2470N.m	320Kg	57300N	3.2
KF107DM132MC4	42.33	7.5KW	34rpm	2090N.m	320Kg	55300N	3.5
KF107DM132MC4	37	7.5KW	39rpm	1830N.m	320Kg	53700N	3.9

Kf107dm132ml4reducing motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF107DM132ML4	143.47	7.5KW	10rpm	7110N.m	320Kg	65000N	1.15
KF107DM132ML4	121.46	7.5KW	12rpm	6020N.m	320Kg	65000N	1.35
KF107DM132ML4	112.41	7.5KW	13rpm	5570N.m	320Kg	65000N	1.45
KF107DM132ML4	100.75	7.5KW	14rpm	4990N.m	320Kg	65000N	1.6
KF107DM132ML4	90.96	7.5KW	16rpm	4500N.m	320Kg	64100N	1.75
KF107DM132ML4	82.61	7.5KW	17rpm	4090N.m	320Kg	63100N	1.95
KF107DM132ML4	73.3	7.5KW	20rpm	3630N.m	320Kg	61800N	2.2
KF107DM132ML4	66.52	7.5KW	22rpm	3290N.m	320Kg	60700N	2.4
KF107DM132ML4	57.17	7.5KW	25rpm	2830N.m	320Kg	59000N	2.8
KF107DM132ML4	49.9	7.5KW	29rpm	2470N.m	320Kg	57300N	3.2
KF107DM132ML4	42.33	7.5KW	34rpm	2090N.m	320Kg	55300N	3.5
KF107DM132ML4	37	7.5KW	39rpm	1830N.m	320Kg	53700N	3.9

Type of kf107dm132mc4 slow-down machine:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

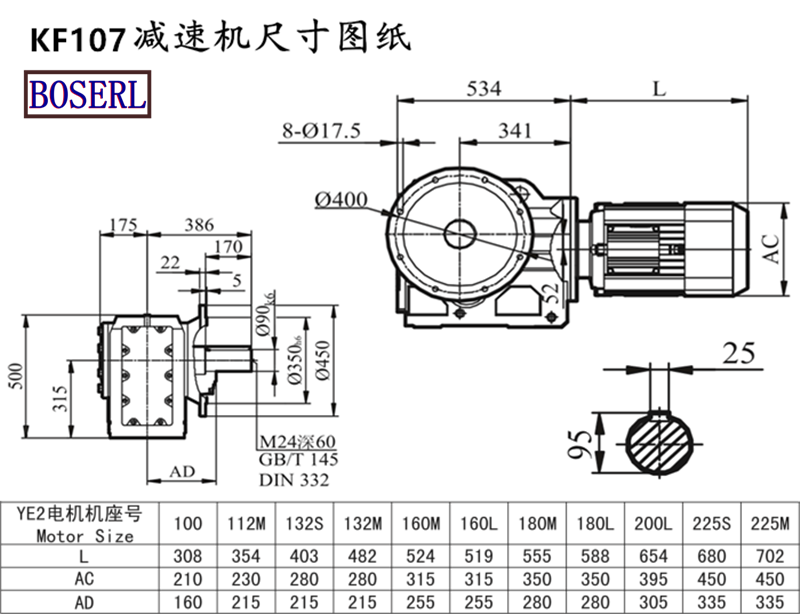

Installation of size drawings for kf107dm132mc4 reduction motor s:

Showcasing of the kf107dm132mc4ing plant: see the plant for appointment three days in advance

Micro move motorPresentation of application cases:

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
