KF107R77DM132L4Detailed Information
Keyword: 0. 8 kw for electron prop-pattern gear-retarder _kf107r77dm132l4_kf107r77drrs80n4
KF107R77DM132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF107R77DM132L4 | 222 | 5.5KW | 6.60r/min | 7400N.m | 346kg | 65000N | 1.10 |
| KF107R77DM132L4 | 196 | 5.5KW | 7.40r/min | 6550N.m | 346kg | 65000N | 1.20 |
| KF107R77DM132L4 | 174 | 5.5KW | 8.40r/min | 5860N.m | 346kg | 65000N | 1.25 |
| KF107R77DM132L4 | 154 | 5.5KW | 9.40r/min | 5190N.m | 346kg | 65000N | 1.40 |
| KF107R77DM132L4 | 140 | 5.5KW | 10.0r/min | 4710N.m | 346kg | 65000N | 1.55 |
Kf107r77drs80n4 deviation motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF107R77DRS80N4 | 1713 | 0.75KW | 0.84r/min | 7710N.m | 302kg | 65000N | 1.05 |
| KF107R77DRS80N4 | 1554 | 0.75KW | 0.92r/min | 7000N.m | 302kg | 65000N | 1.15 |
| KF107R77DRS80N4 | 1336 | 0.75KW | 1.10r/min | 6020N.m | 302kg | 65000N | 1.35 |
| KF107R77DRS80N4 | 1166 | 0.75KW | 1.20r/min | 5250N.m | 302kg | 65000N | 1.50 |
| KF107R77DRS80N4 | 1030 | 0.75KW | 1.40r/min | 4540N.m | 302kg | 65000N | 1.75 |
| KF107R77DRS80N4 | 904 | 0.75KW | 1.60r/min | 3960N.m | 302kg | 65000N | 2.00 |
| KF107R77DRS80N4 | 793 | 0.75KW | 1.80r/min | 3560N.m | 302kg | 65000N | 2.20 |
| KF107R77DRS80N4 | 696 | 0.75KW | 2.10r/min | 3100N.m | 302kg | 65000N | 2.60 |
| KF107R77DRS80N4 | 615 | 0.75KW | 2.30r/min | 2690N.m | 302kg | 65000N | 3.00 |
KF107R77DM132L4Speeding machine type:
K107r77dm132l4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka107br77dm132l4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv107br77dm132l4 foot larvae axis installed with tilt gears - umbrella gear-reducing motors
Kh107 br77dm132l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 107r77dm132l4b5 installation of tilt gears - umbrella gear reduction power
Kaf107r77dm132l4b5 installation of tilt gears - umbrella gear reduction power
Kvf107r77dm132l4b5-franco cardiac axles fitted with tilt gears - umbrella gear reduction power
Khf107r77dm132l4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power
Ka107r77dm132l4 hollow axle tilt gears - umbrella gear reduction power
The kv107r77dm132l4 space cores are equipped with tilt gears - an umbrella gear-reducing motor
Kh107r77dm132l4 empty axle locks slashing gears - umbrella gear reduction power
The kt107r77dm132l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz107r77dm132l4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dm132l4b14 flannel cores installed slashing gears - umbrella gear reduction power
Khz107r77dm132l4b14 french axle locks fitted with tilt gears - umbrella gear-reducing motors

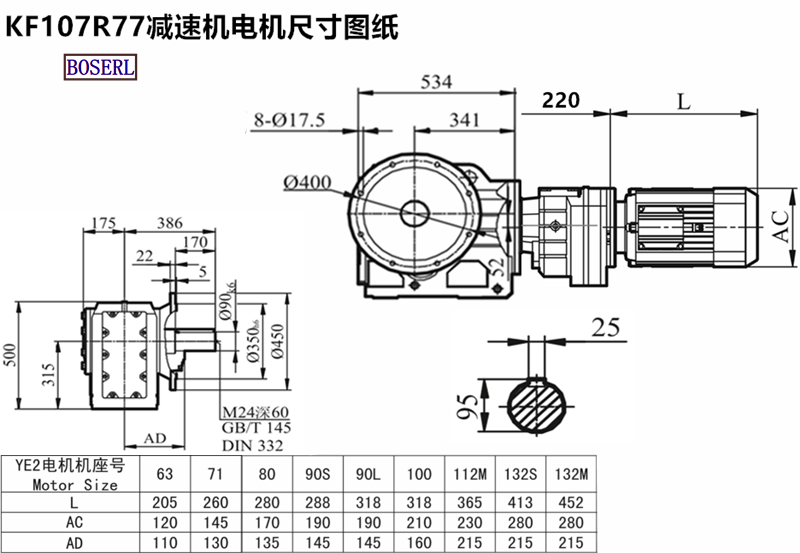

KF107R77DM132L4Induction Motor 3Ph motors installed size drawings
Kf107r77dm132l4 power plant, three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 8kw for the electron prop-patron gear-retarder kf107r77dm132l4 kf107r77drs80n4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF107R77DM132L4减速机样本 |
|
| KF107R77DM132L4减速机三维图纸 |
|
