KF107R77DM132MC4Detailed Information
Keyword: 0. 85 kw for the electron prop-pattern gear-retarder _kf107r77dm132mc4_kf107r77drs80k4
KF107R77DM132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF107R77DM132MC4 | 222 | 5.5KW | 6.60r/min | 7400N.m | 346kg | 65000N | 1.10 |
| KF107R77DM132MC4 | 196 | 5.5KW | 7.40r/min | 6550N.m | 346kg | 65000N | 1.20 |
| KF107R77DM132MC4 | 174 | 5.5KW | 8.40r/min | 5860N.m | 346kg | 65000N | 1.25 |
| KF107R77DM132MC4 | 154 | 5.5KW | 9.40r/min | 5190N.m | 346kg | 65000N | 1.40 |
| KF107R77DM132MC4 | 140 | 5.5KW | 10.0r/min | 4710N.m | 346kg | 65000N | 1.55 |
Kf107r77drs80k4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF107R77DRS80K4 | 2977 | 0.55KW | 0.46r/min | 9950N.m | 301kg | 65000N | 0.80 |
| KF107R77DRS80K4 | 2599 | 0.55KW | 0.53r/min | 8690N.m | 301kg | 65000N | 0.90 |
| KF107R77DRS80K4 | 2286 | 0.55KW | 0.60r/min | 7590N.m | 301kg | 65000N | 1.05 |
| KF107R77DRS80K4 | 1939 | 0.55KW | 0.71r/min | 6440N.m | 301kg | 65000N | 1.25 |
| KF107R77DRS80K4 | 1713 | 0.55KW | 0.81r/min | 5820N.m | 301kg | 65000N | 1.35 |
| KF107R77DRS80K4 | 1554 | 0.55KW | 0.89r/min | 5280N.m | 301kg | 65000N | 1.50 |
| KF107R77DRS80K4 | 1336 | 0.55KW | 1.00r/min | 4540N.m | 301kg | 65000N | 1.75 |
| KF107R77DRS80K4 | 1166 | 0.55KW | 1.20r/min | 3960N.m | 301kg | 65000N | 2.00 |
| KF107R77DRS80K4 | 1030 | 0.55KW | 1.30r/min | 3400N.m | 301kg | 65000N | 2.40 |
| KF107R77DRS80K4 | 904 | 0.55KW | 1.50r/min | 2960N.m | 301kg | 65000N | 2.70 |
| KF107R77DRS80K4 | 793 | 0.55KW | 1.70r/min | 2680N.m | 301kg | 65000N | 3.00 |
| KF107R77DRS80K4 | 696 | 0.55KW | 2.00r/min | 2330N.m | 301kg | 65000N | 3.40 |
| KF107R77DRS80K4 | 615 | 0.55KW | 2.20r/min | 2010N.m | 301kg | 65000N | 4.00 |
KF107R77DM132MC4Speeding machine type:
K107r77dm132mc4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka107br77dm132mc4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv107br77dm132mc4 foot cores are equipped with tilt gears - umbrella gear reduction power
Kh107 br77dm132mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 107r77dm132mc4b5 installation of tilt gear - umbrella gear reduction power
Kaf107r77dm132mc4b5 installation of tilt gears - umbrella gear reduction power
Kvf107r77dm132mc4b5 installation of tilt gears - umbrella gear-reducing power
Khf107r77dm132mc4b5 french axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka107r77dm132mc4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv107r77dm132mc4 space cores fitted with tilt gears - umbrella gear reduction power
Kh107r77dm132mc4 sky axe locked tilt gear - umbrella gear deviation engine
The kt107r77dm132mc4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz107r77dm132mc4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dm132mc4b14 installation of tilt gears - umbrella gear reduction power
Khz107r77dm132mc4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

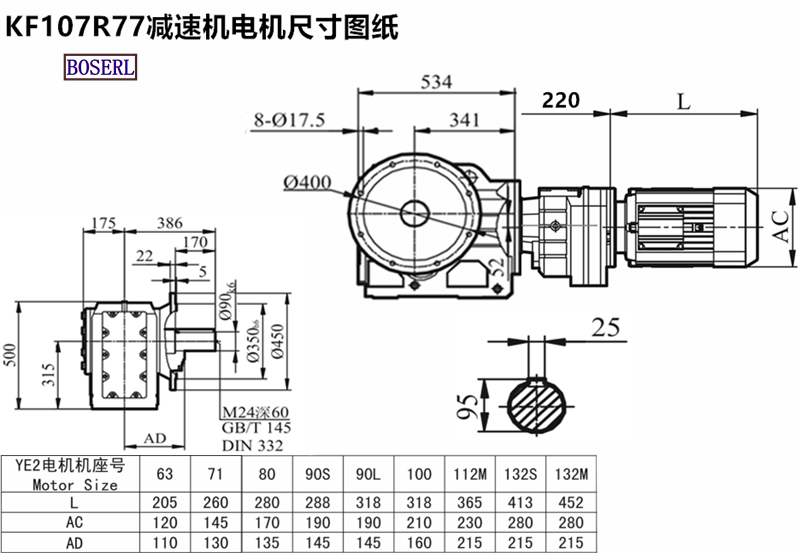

KF107R77DM132MC4Induction Motor 3Ph motors installed size drawings
Kf107r77dm132mc4ing electric power plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
