KF157R107DM160MC4Detailed Information
Keywords: 18. 5 kw for the electric cone gearreducing box_kf157r107dm160mc4_kf157r107drrs180l4
KF157R107DM160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DM160MC4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DM160MC4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DM160MC4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DM160MC4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DM160MC4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DM160MC4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DRS180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DRS180L4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KF157R107DRS180L4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KF157R107DRS180L4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KF157R107DM160MC4Speeding machine type:
K157r107dm160mc4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka157br107dm160mc4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br107dm160mc4 bottom feet flow axis installation of tilt gear - umbrella gear deviation engine
Kh157 br107dm160mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r107dm160mc4b5 installation of tilt gears - umbrella gear reduction power
Frf157r107dm160mc4b5 installation of tilt gear - umbrella gear reduction power
Khf157r107dm160mc4b5 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka157r107dm160mc4 tilt gears - umbrella gear reduction power
The kv157r107dm160mc4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r107dm160mc4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dm160mc4 hollow axle - umbrella gear reduction power
Kaz157r107dm160mc4b14 installation of tilt gears - umbrella gear-reducing power
Kvz157r107dm160mc4b14 francoons installed slash gears - umbrella gear reduction power
Khz157r107dm160mc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

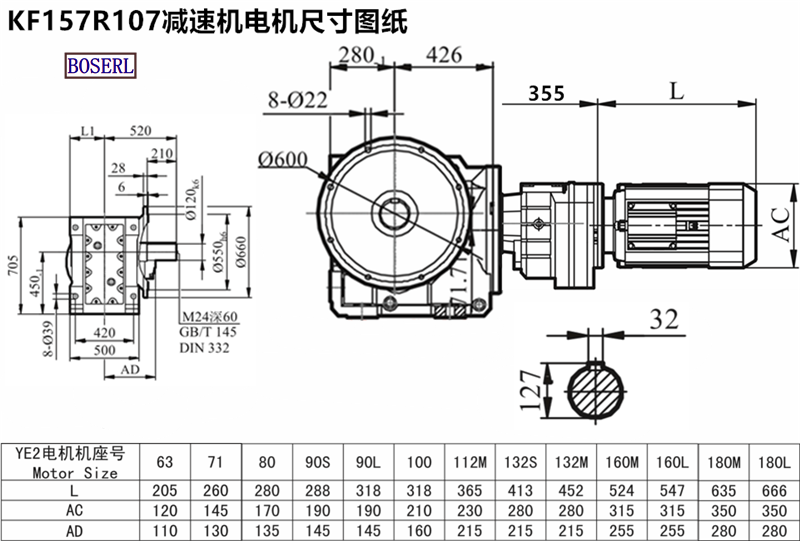

KF157R107DM160MC4Induction Motor 3Ph motors installed size drawings
KF157R107DM160MC4We need to make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 18. 5kw for electric cone gear speed reduction box kf157r107dm160mc4 kf157r107drrs180l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF157R107DM160MC4减速机样本 |
|
| KF157R107DM160MC4减速机三维图纸 |
|
