KF157R107DR160M4Detailed Information
Keywords: 5. 5 kw for electric cone gear reduction box_kf157r107dr160m4_kf157r107dve180m4
KF157R107DR160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DR160M4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DR160M4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DR160M4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DR160M4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DR160M4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DR160M4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DVE180M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DVE180M4 | 187 | 18.5KW | 7.80r/min | 20600N.m | 935kg | 110700N | 0.85 |
| KF157R107DVE180M4 | 157 | 18.5KW | 9.30r/min | 17500N.m | 935kg | 112400N | 1.05 |
| KF157R107DVE180M4 | 122 | 18.5KW | 12.0r/min | 13700N.m | 935kg | 113900N | 1.30 |
| KF157R107DVE180M4 | 107 | 18.5KW | 14.0r/min | 11900N.m | 935kg | 112000N | 1.50 |
KF157R107DR160M4Speeding machine type:
K157r107dr160m4 bottom foot is fitted with tilt gear - umbrella gear reduction power
Ka157br107dr160m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv157 br107dr160m4 foot larvae axis installation of tilt gear - umbrella gear reduction power
Kh157 br107dr160m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 157r107dr160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dr160m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Frf157r107dr160m4b5 installation of tilt gears - umbrella gear reduction power
Khf157r107dr160m4b5 franium axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dr160m4 hollow axle tilt gears - umbrella gear reduction power
Kv157r107dr160m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r107dr160m4 hollow axle locks slashing gears - umbrella gear deceleration power
Installation of tilt gears on kt157r107dr160m4 hollow axle - umbrella gear reduction power
Kaz157r107dr160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dr160m4b14 installation of tilt gear - umbrella gear deviation power
Khz157r107dr160m4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

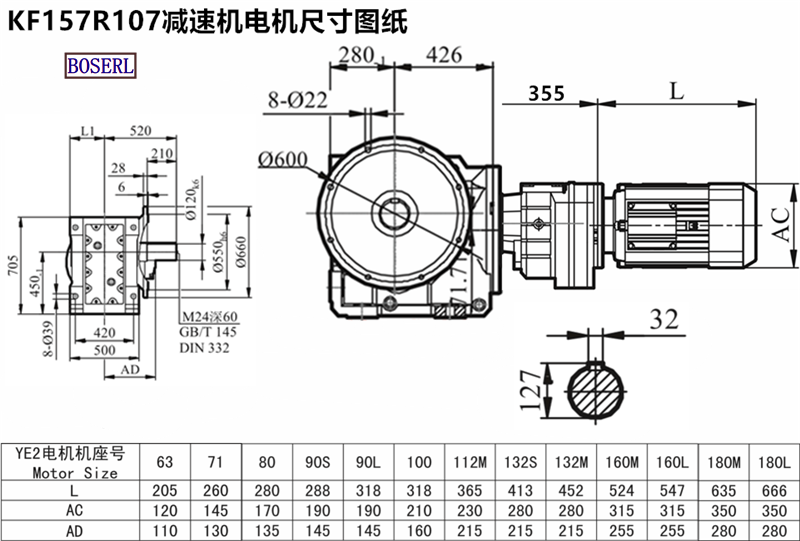

KF157R107DR160M4Induction Motor 3Ph motors installed size drawings
Kf157r107dr160m4 deviation electric power plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
