KF157R107DR180LC4Detailed Information
Keywords: 2. 2 kw for electric cone gearreducing box_kf157r107dr180lc4_kf157r107dve160s4
KF157R107DR180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DR180LC4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KF157R107DR180LC4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KF157R107DR180LC4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KF157R107DVE160S4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DVE160S4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DVE160S4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DVE160S4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DVE160S4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DVE160S4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DVE160S4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DR180LC4Speeding machine type:
K157r107dr180lc4 bottom foot is fitted with tilt gear - umbrella gear reduction power
Ka157br107dr180lc4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv157 br107dr180lc4 foot larvae axis installation of tilt gear - umbrella gear-reducing motor
Kh157 br107dr180lc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dr180lc4b5 installation of tilt gear - umbrella gear-reducing power
Kaf157r107dr180lc4b5 french aerocardial axle is equipped with tilt gears - an umbrella gear reduction power
Frf157r107dr180lc4b5 installation of tilt gear - umbrella gear reduction power
Khf157r107dr180lc4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dr180lc4 sky axis tilt gear - umbrella gear deviation engine
Kv157r107dr180lc4 space cores fitted with tilt gears - umbrella gear-reducing motors
Kh157r107dr180lc4 sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on kt157r107dr180lc4 hollow axle - umbrella gear reduction power
Kaz157r107dr180lc4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear deviation electrics on the franco cardiac axe
Dhz157r107dr180lc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

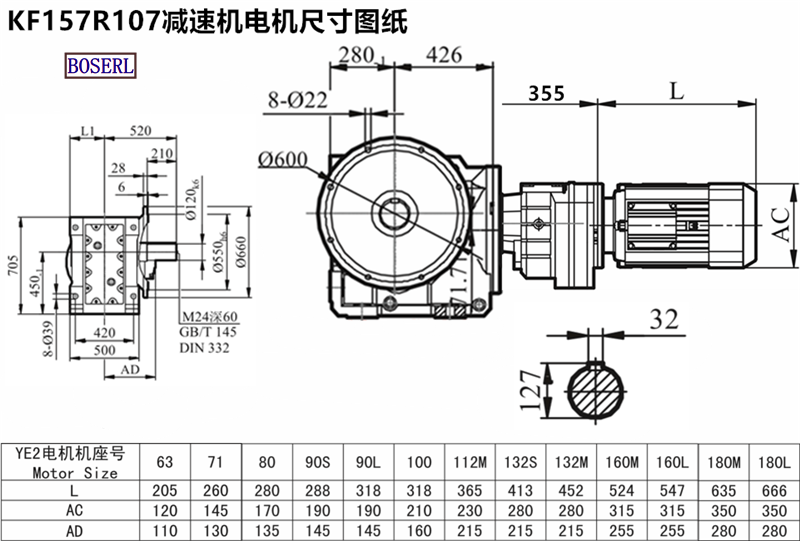

KF157R107DR180LC4Induction Motor 3Ph motors installed size drawings
Kf157r107dr180lc4 deviation electric power plant, three days' appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 2. 2kw for electric cone gear speed-reducing box kf157r107dr180lc4 kf157r107dve160s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF157R107DR180LC4减速机样本 |
|
| KF157R107DR180LC4减速机三维图纸 |
|
