KF157R107DT160MC4Detailed Information
Keywords: 0. 75 kw to service the electric cone gear-reducing box_kf157r107dt160mc4_kf157r107dre180l4
KF157R107DT160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DT160MC4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DT160MC4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DT160MC4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DT160MC4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DT160MC4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DT160MC4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DRE180L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DRE180L4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KF157R107DRE180L4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KF157R107DRE180L4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KF157R107DT160MC4Speeding machine type:
K157r107dt160mc4 bottom foot with tilt gears - umbrella gear reduction power
Ka157br107dt160mc4 foot hollow axles with tilt gears - umbrella gear-reducing power
Kv157 br107dt160mc4 foot cores fitted with slash gears - umbrella gear reduction power
Kh157 br107dt160mc4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r107dt160mc4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dt160mc4b5 installation of tilt gear - umbrella gear reduction power
Kvf157r107dt160mc4b5 frandra keys installation of tilt gears - umbrella gear deviation electric
Khf157r107dt160mc4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dt160mc4 hollow axle tilt gear - umbrella gear deceleration power
The kv157r107dt160mc4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r107dt160mc4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Kt157r107dt160mc4 tilt gear - umbrella gear reduction power
Kaz157r107dt160mc4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dt160mc4b14 installation of slashed gears - umbrella gear reduction power
Khz157r107dt160mc4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

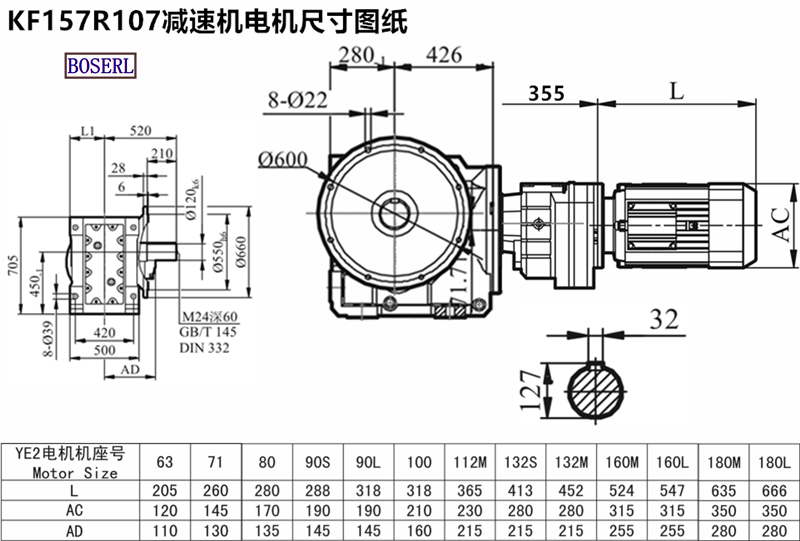

KF157R107DT160MC4Induction Motor 3Ph motors installed size drawings
Kf157r107dt160mc4 power deviation plant, three days' appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
