KF157R107DT160S4Detailed Information
Keyword: 0. 8 kw for the electric cone gearreducing box _kf157r107dt160s4_kf157r107dre180lc4
KF157R107DT160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DT160S4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DT160S4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DT160S4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DT160S4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DT160S4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DT160S4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
Kf157r107dre180lc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DRE180LC4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KF157R107DRE180LC4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KF157R107DRE180LC4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KF157R107DT160S4Speeding machine type:
K157r107dt160s4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br107dt160s4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv157 br107dt160s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh157 br107dt160s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf157r107dt160s4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r107dt160s4b5 installation of tilt gears - umbrella gear reduction power
Installation of tilt gears on the frf157r107dt160s4b5 cardiac axle - an umbrella gear reduction power
Khf157r107dt160s4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dt160s4 hollow axle tilt gear - umbrella gear reduction power
The kv157r107dt160s4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh157r107dt160s4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dt160s4 empty-centre axis - umbrella gear reduction power
Kaz157r107dt160s4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dt160s4b14 franco-axis installation of tilt gears - umbrella gear-reducing power
Khz157r107dt160s4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

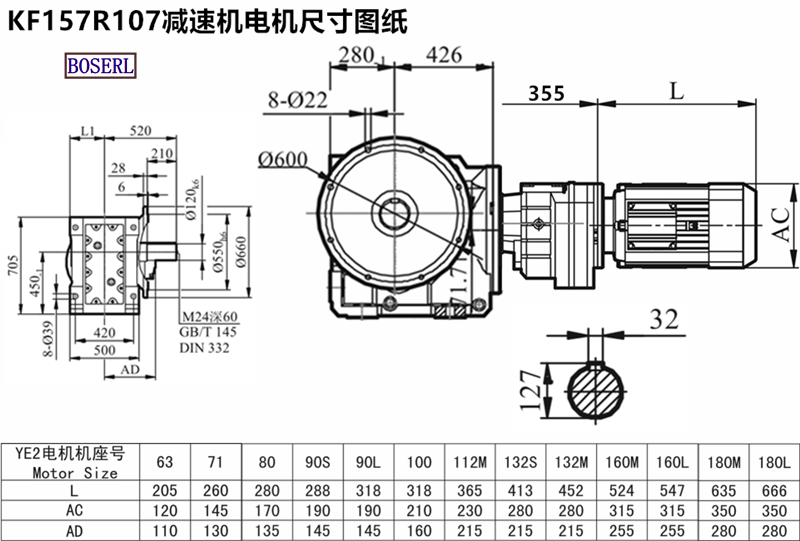

KF157R107DT160S4Induction Motor 3Ph motors installed size drawings
Kf157r107dt160s4 deviation electric power plant, three days' advance appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
