KF157R107DT180L4Detailed Information
Keyword: 0. 85 kw for the electric cone gearreducing box_kf157r107dt180l4_kf157r107dre160mc4
KF157R107DT180L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DT180L4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KF157R107DT180L4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KF157R107DT180L4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KF157R107DRE160MC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DRE160MC4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DRE160MC4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DRE160MC4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DRE160MC4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DRE160MC4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DRE160MC4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DT180L4Speeding machine type:
K157r107dt180l4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br107dt180l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv157 br107dt180l4 foot cores are equipped with tilt gears - umbrella gear reduction power
Kh157 br107dt180l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 157r107dt180l4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dt180l4b5 installation of tilt gear - umbrella gear reduction power
Kvf157r107dt180l4b5franco-axis fitted with tilt gears - an umbrella gear-reducing motor
Khf157r107dt180l4b5farland axle locks equipped with tilt gears - umbrella gear-reducing power
Ka157r107dt180l4 hollow axial tilt gears - umbrella gear reduction power
Kv157r107dt180l4 installation of tilt gears - umbrella gear reduction power
Kh157r107dt180l4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dt180l4 hollow axle - umbrella gear reduction power
Kaz157r107dt180l4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axle kvz157r107dt180l4b14
Khz157r107dt180l4b14farland axial axle locks fitted with tilt gears - umbrella gear reduction power

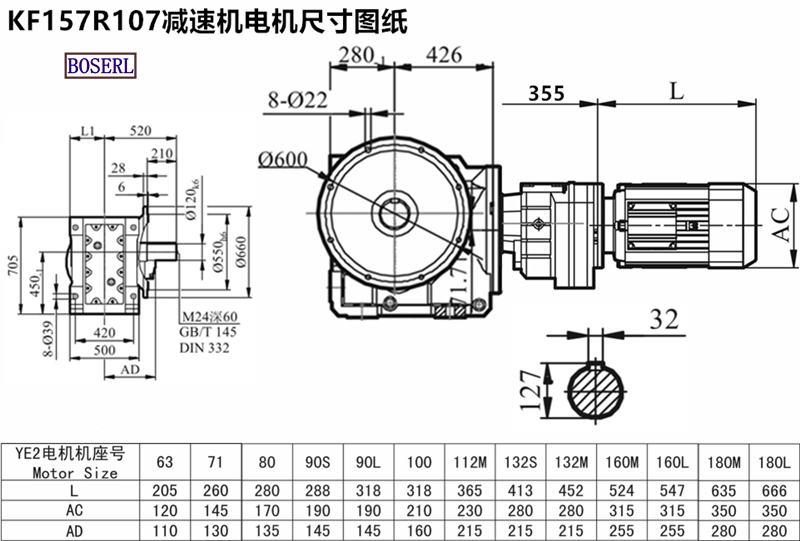

KF157R107DT180L4Induction Motor 3Ph motors installed size drawings
Kf157r107dt180l4 power-reducing plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 85kw 伺k157r107dt180l4 kf157r107dre160mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF157R107DT180L4减速机样本 |
|
| KF157R107DT180L4减速机三维图纸 |
|
