KF157R107DT180M4Detailed Information
Keyword: 0. 9 kw for electric cone gear reduction box_kf157r107dt180m4_kf157r107dre160m4
KF157R107DT180M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DT180M4 | 187 | 18.5KW | 7.80r/min | 20600N.m | 935kg | 110700N | 0.85 |
| KF157R107DT180M4 | 157 | 18.5KW | 9.30r/min | 17500N.m | 935kg | 112400N | 1.05 |
| KF157R107DT180M4 | 122 | 18.5KW | 12.0r/min | 13700N.m | 935kg | 113900N | 1.30 |
| KF157R107DT180M4 | 107 | 18.5KW | 14.0r/min | 11900N.m | 935kg | 112000N | 1.50 |
KF157R107DRE160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF157R107DRE160M4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KF157R107DRE160M4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KF157R107DRE160M4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KF157R107DRE160M4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KF157R107DRE160M4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KF157R107DRE160M4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KF157R107DT180M4Speeding machine type:
K157r107dt180m4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br107dt180m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv157 br107dt180m4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh157 br107dt180m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dt180m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dt180m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf157r107dt180m4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf157r107dt180m4b5farland axle locks equipped with tilt gears - umbrella gear-reducing power
Ka157r107dt180m4 hollow axle tilt gears - umbrella gear reduction power
Kv157r107dt180m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r107dt180m4 sky axe locked tilt gear - umbrella gear deviation engine
Kt157r107dt180m4 hollow axle is equipped with tilt gears - umbrella gear reduction power
Kaz157r107dt180m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axis kvz157r107dt180m4b14
Dhz157r107dt180m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

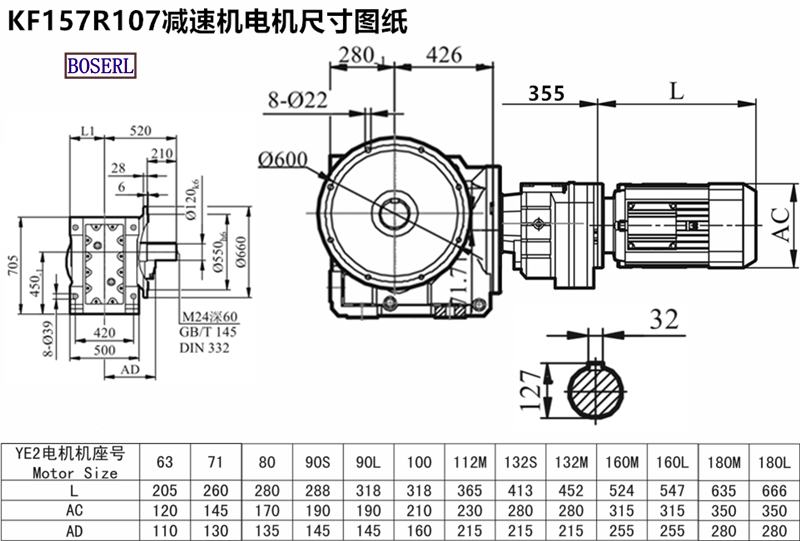

KF157R107DT180M4Induction Motor 3Ph motors installed size drawings
Kf157r107dt180m4 deviation power plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
