KF37DRS63S4Detailed Information

KF37DRS63S4
prevnext

KF37DRS63S4

TEL：Email:[email protected]
  1. 详细信息

Keyword: send 5 tons of loader reduction machine_kf37drs63s4_kf37dr63s4

KF37DRS63S4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DRS63S4106.380.12kw13rpm88N.m16kg6500N2.3
KF37DRS63S497.810.12kw14rpm81N.m16kg6530N2.5
KF37DRS63S483.690.12kw16rpm70N.m16kg6570N2.9
KF37DRS63S472.540.12kw19rpm60N.m16kg6600N3.3
KF37DRS63S467.80.12kw20rpm56N.m16kg6610N3.6
KF37DRS63S458.60.12kw24rpm49N.m16kg6430N4.1
KF37DRS63S449.790.12kw28rpm41N.m16kg6130N4.8
KF37DRS63S444.460.12kw31rpm37N.m16kg5930N5.4
KF37DRS63S437.970.12kw36rpm32N.m16kg5660N6.4
KF37DRS63S435.570.12kw39rpm30N.m16kg5550N6.8
KF37DRS63S429.960.12kw46rpm25N.m16kg5270N8
KF37DRS63S428.830.12kw48rpm24N.m16kg5200N8.4
KF37DRS63S424.990.12kw55rpm21N.m16kg4980N9.6
KF37DRS63S423.360.12kw59rpm19N.m16kg4880N10
KF37DRS63S420.190.12kw68rpm17N.m16kg4660N11
KF37DRS63S417.150.12kw80rpm14N.m16kg4430N13
KF37DRS63S415.310.12kw90rpm13N.m16kg4280N14
KF37DRS63S413.080.12kw105rpm11N.m16kg4070N15
KF37DRS63S412.140.12kw114rpm10N.m16kg3970N16

KF37DR63S4Speed-down electrical parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DR63S4106.380.12kw13rpm88N.m16kg6500N2.3
KF37DR63S497.810.12kw14rpm81N.m16kg6530N2.5
KF37DR63S483.690.12kw16rpm70N.m16kg6570N2.9
KF37DR63S472.540.12kw19rpm60N.m16kg6600N3.3
KF37DR63S467.80.12kw20rpm56N.m16kg6610N3.6
KF37DR63S458.60.12kw24rpm49N.m16kg6430N4.1
KF37DR63S449.790.12kw28rpm41N.m16kg6130N4.8
KF37DR63S444.460.12kw31rpm37N.m16kg5930N5.4
KF37DR63S437.970.12kw36rpm32N.m16kg5660N6.4
KF37DR63S435.570.12kw39rpm30N.m16kg5550N6.8
KF37DR63S429.960.12kw46rpm25N.m16kg5270N8
KF37DR63S428.830.12kw48rpm24N.m16kg5200N8.4
KF37DR63S424.990.12kw55rpm21N.m16kg4980N9.6
KF37DR63S423.360.12kw59rpm19N.m16kg4880N10
KF37DR63S420.190.12kw68rpm17N.m16kg4660N11
KF37DR63S417.150.12kw80rpm14N.m16kg4430N13
KF37DR63S415.310.12kw90rpm13N.m16kg4280N14
KF37DR63S413.080.12kw105rpm11N.m16kg4070N15
KF37DR63S412.140.12kw114rpm10N.m16kg3970N16

KF37DRS63S4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

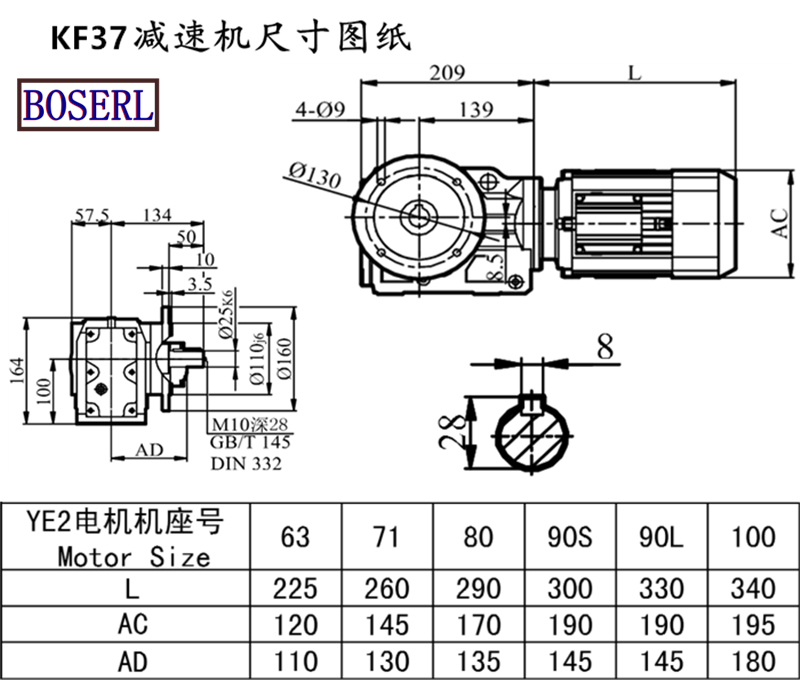

KF37DRS63S4Induction Motor 3Ph motors installed size drawings



KF37DRS63S4At thereducing plant: three days in advance

Micro move motorPresentation of application cases:

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW


标签:  A 5-ton loader speed reduction machine, kf37drs63s4 kf37dr63s4
tags： A 5-ton loader speed reduction machine, kf37drs63s4   kf37dr63s4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
KF37DRS63S4减速机样本 Click to download
KF37DRS63S4三维图纸 Click to download
