KF37DT71D4Detailed Information

KF37DT71D4
prevnext

KF37DT71D4

TEL：Email:[email protected]
  1. 详细信息

Keywords: rotation of 2 tons of loader reduction machine_kf37dt71d4_kf37dt71ms4

KF37DT71D4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DT71D458.60.55kw24rpm220N.m20kg4840N0.9
KF37DT71D449.790.55kw28rpm190N.m20kg4780N1.05
KF37DT71D444.460.55kw31rpm169N.m20kg4730N1.2
KF37DT71D437.970.55kw36rpm144N.m20kg4630N1.4
KF37DT71D435.570.55kw39rpm135N.m20kg4580N1.5
KF37DT71D429.960.55kw46rpm114N.m20kg4460N1.75
KF37DT71D428.830.55kw48rpm110N.m20kg4420N1.8
KF37DT71D424.990.55kw55rpm95N.m20kg4310N2.1
KF37DT71D423.360.55kw59rpm89N.m20kg4250N2.2
KF37DT71D420.190.55kw68rpm77N.m20kg4120N2.4
KF37DT71D417.150.55kw80rpm65N.m20kg3970N2.8
KF37DT71D415.310.55kw90rpm58N.m20kg3860N3
KF37DT71D413.080.55kw105rpm50N.m20kg3720N3.3
KF37DT71D412.140.55kw114rpm46N.m20kg3650N3.5
KF37DT71D410.490.55kw132rpm40N.m20kg3510N4
KF37DT71D48.910.55kw155rpm34N.m20kg3360N4.7
KF37DT71D47.96
0.55kw173rpm30N.m20kg3260N5.1
KF37DT71D46.8
0.55kw203rpm26N.m20kg3120N5.8
KF37DT71D46.370.55kw217rpm24N.m20kg3060N6
KF37DT71D45.360.55kw257rpm20N.m20kg2910N6.9
KF37DT71D43.980.55kw347rpm15N.m20kg2670N8.3

Kf37dt71ms4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DT71MS458.60.55kw24rpm220N.m20kg4840N0.9
KF37DT71MS449.790.55kw28rpm190N.m20kg4780N1.05
KF37DT71MS444.460.55kw31rpm169N.m20kg4730N1.2
KF37DT71MS437.970.55kw36rpm144N.m20kg4630N1.4
KF37DT71MS435.570.55kw39rpm135N.m20kg4580N1.5
KF37DT71MS429.960.55kw46rpm114N.m20kg4460N1.75
KF37DT71MS428.830.55kw48rpm110N.m20kg4420N1.8
KF37DT71MS424.990.55kw55rpm95N.m20kg4310N2.1
KF37DT71MS423.360.55kw59rpm89N.m20kg4250N2.2
KF37DT71MS420.190.55kw68rpm77N.m20kg4120N2.4
KF37DT71MS417.150.55kw80rpm65N.m20kg3970N2.8
KF37DT71MS415.310.55kw90rpm58N.m20kg3860N3
KF37DT71MS413.080.55kw105rpm50N.m20kg3720N3.3
KF37DT71MS412.140.55kw114rpm46N.m20kg3650N3.5
KF37DT71MS410.490.55kw132rpm40N.m20kg3510N4
KF37DT71MS48.910.55kw155rpm34N.m20kg3360N4.7
KF37DT71MS47.96
0.55kw173rpm30N.m20kg3260N5.1
KF37DT71MS46.8
0.55kw203rpm26N.m20kg3120N5.8
KF37DT71MS46.370.55kw217rpm24N.m20kg3060N6
KF37DT71MS45.360.55kw257rpm20N.m20kg2910N6.9
KF37DT71MS43.980.55kw347rpm15N.m20kg2670N8.3

Type of kf37dt71d4 decelerator:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

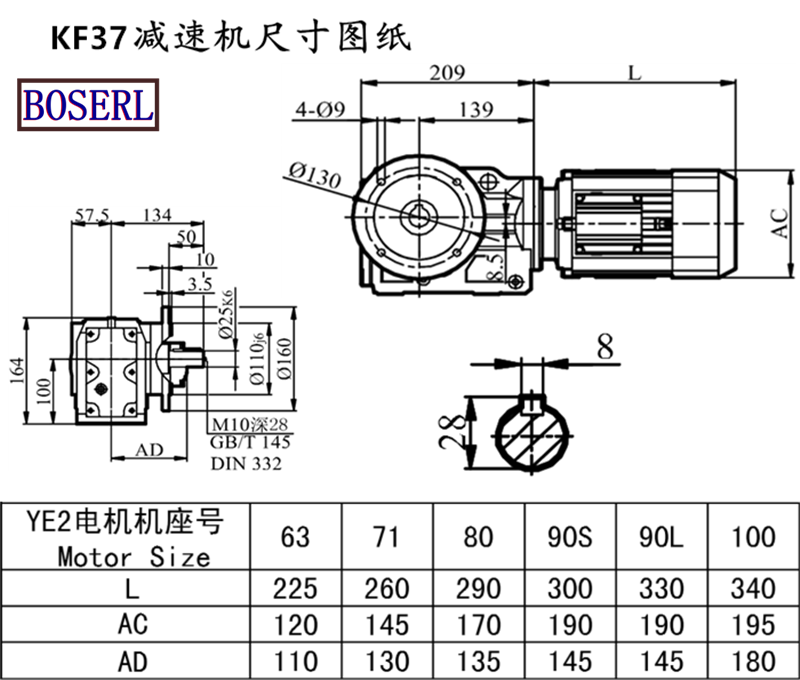

Installation of size drawings for kf37dt71d4reducing motor



Showcasing of kf37dt71d4reducing plant: three days in advance at the factory

Micro move motorPresentation of application cases:


Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW


标签:  Rotation of 2 tons of loader speed reduction machine kf37dt71d4 kf37dt71ms4
tags： Rotation of 2 tons of loader speed reduction machine kf37dt71d4   kf37dt71ms4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
KF37DT71D4减速机样本 Click to download
KF37DT71D4三维图纸 Click to download
