KF37DVE63L4Detailed Information

KF37DVE63L4
prevnext

KF37DVE63L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: a 4-ton loader retarder_kf37dve63l4_kf37dre63l4

KF37DVE63L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DVE63L4106.380.25kw12rpm195N.m17kg5690N1
KF37DVE63L497.810.25kw13rpm180N.m17kg5860N1.1
KF37DVE63L483.690.25kw16rpm154N.m17kg6090N1.3
KF37DVE63L472.540.25kw18rpm133N.m17kg6240N1.5
KF37DVE63L467.80.25kw19rpm124N.m17kg6220N1.6
KF37DVE63L458.60.25kw22rpm108N.m17kg6030N1.85
KF37DVE63L449.790.25kw26rpm91N.m17kg5810N2.2
KF37DVE63L444.460.25kw29rpm82N.m17kg5650N2.4
KF37DVE63L437.970.25kw34rpm70N.m17kg5430N2.9
KF37DVE63L435.570.25kw37rpm65N.m17kg5340N3.1
KF37DVE63L429.960.25kw43rpm55N.m17kg5100N3.6
KF37DVE63L428.830.25kw45rpm53N.m17kg5050N3.8
KF37DVE63L424.990.25kw52rpm46N.m17kg4860N4.4
KF37DVE63L423.360.25kw56rpm43N.m17kg4770N4.6
KF37DVE63L420.190.25kw64rpm37N.m17kg4580N5
KF37DVE63L417.150.25kw76rpm32N.m17kg4370N5.7
KF37DVE63L415.310.25kw85rpm28N.m17kg4220N6.2
KF37DVE63L413.080.25kw99rpm24N.m17kg4030N6.9
KF37DVE63L412.140.25kw107rpm22N.m17kg3940N7.2
KF37DVE63L410.490.25kw124rpm19N.m17kg3780N8.3
KF37DVE63L48.910.25kw146rpm16N.m17kg3590N9.8
KF37DVE63L47.96
0.25kw163rpm15N.m17kg3470N11
KF37DVE63L46.8
0.25kw191rpm12N.m17kg3300N12
KF37DVE63L46.370.25kw204rpm12N.m17kg3240N12

KF37DRE63L4Speed-down electrical parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF37DRE63L4106.380.25kw12rpm195N.m17kg5690N1
KF37DRE63L497.810.25kw13rpm180N.m17kg5860N1.1
KF37DRE63L483.690.25kw16rpm154N.m17kg6090N1.3
KF37DRE63L472.540.25kw18rpm133N.m17kg6240N1.5
KF37DRE63L467.80.25kw19rpm124N.m17kg6220N1.6
KF37DRE63L458.60.25kw22rpm108N.m17kg6030N1.85
KF37DRE63L449.790.25kw26rpm91N.m17kg5810N2.2
KF37DRE63L444.460.25kw29rpm82N.m17kg5650N2.4
KF37DRE63L437.970.25kw34rpm70N.m17kg5430N2.9
KF37DRE63L435.570.25kw37rpm65N.m17kg5340N3.1
KF37DRE63L429.960.25kw43rpm55N.m17kg5100N3.6
KF37DRE63L428.830.25kw45rpm53N.m17kg5050N3.8
KF37DRE63L424.990.25kw52rpm46N.m17kg4860N4.4
KF37DRE63L423.360.25kw56rpm43N.m17kg4770N4.6
KF37DRE63L420.190.25kw64rpm37N.m17kg4580N5
KF37DRE63L417.150.25kw76rpm32N.m17kg4370N5.7
KF37DRE63L415.310.25kw85rpm28N.m17kg4220N6.2
KF37DRE63L413.080.25kw99rpm24N.m17kg4030N6.9
KF37DRE63L412.140.25kw107rpm22N.m17kg3940N7.2
KF37DRE63L410.490.25kw124rpm19N.m17kg3780N8.3
KF37DRE63L48.910.25kw146rpm16N.m17kg3590N9.8
KF37DRE63L47.96
0.25kw163rpm15N.m17kg3470N11
KF37DRE63L46.8
0.25kw191rpm12N.m17kg3300N12
KF37DRE63L46.370.25kw204rpm12N.m17kg3240N12

KF37DVE63L4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

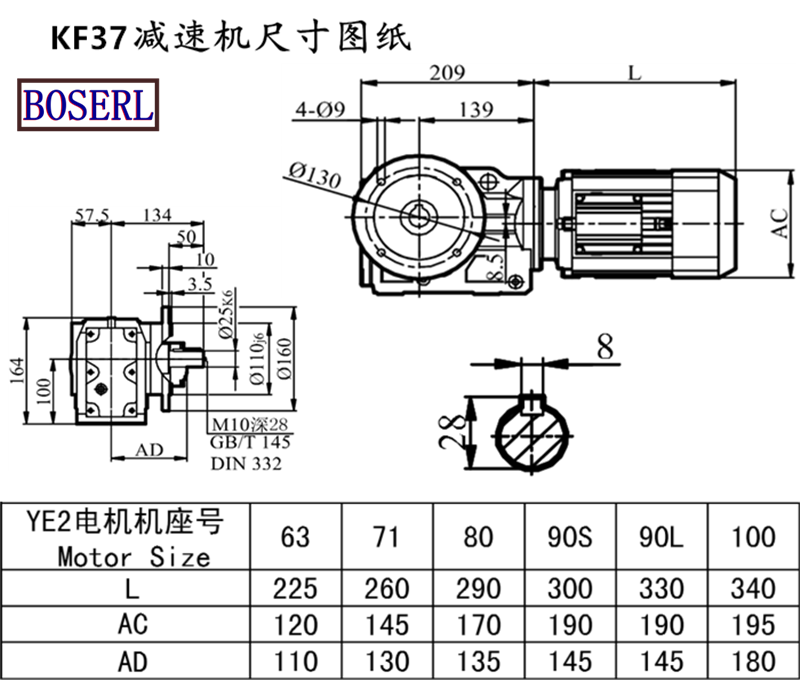

KF37DVE63L4Induction Motor 3Ph motors installed size drawings



KF37DVE63L4At thereducing plant: three days in advance

Micro move motorPresentation of application cases:

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
