Kf57 gear speed reduction motorDetailed Information
Keyword: kf57 gear deviator motor_kf57y0. 25kw_kf57y0. 37kw_kf57 gear deviator_kf57 gear deviator manufacturer_kf57 gang deviator manufacturer
KF57Y0.25KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF57Y0.25KW | 145.14 | 0.25KW | 9rpm | 265N.m | 29Kg | 9410N | 2.2 |
| KF57Y0.25KW | 123.85 | 0.25KW | 10rpm | 225N.m | 29Kg | 9540N | 2.6 |
| KF57Y0.25KW | 108.29 | 0.25KW | 12rpm | 199N.m | 29Kg | 9640N | 3 |
| KF57Y0.25KW | 102.88 | 0.25KW | 13rpm | 189N.m | 29Kg | 9670N | 3.2 |
| KF57Y0.25KW | 90.26 | 0.25KW | 14rpm | 166N.m | 29Kg | 9740N | 3.6 |
| KF57Y0.25KW | 76.56 | 0.25KW | 17rpm | 141N.m | 29Kg | 9810N | 4.3 |
Kf57y0. 37kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF57Y0.37KW | 145.14 | 0.37KW | 9.5rpm | 370N.m | 31Kg | 9000N | 1.6 |
| KF57Y0.37KW | 123.85 | 0.37KW | 11rpm | 315N.m | 31Kg | 9220N | 1.9 |
| KF57Y0.37KW | 108.29 | 0.37KW | 13rpm | 275N.m | 31Kg | 9370N | 2.2 |
| KF57Y0.37KW | 102.88 | 0.37KW | 13rpm | 260N.m | 31Kg | 9420N | 2.3 |
| KF57Y0.37KW | 90.26 | 0.37KW | 15rpm | 230N.m | 31Kg | 9530N | 2.6 |
| KF57Y0.37KW | 76.56 | 0.37KW | 18rpm | 196N.m | 31Kg | 9640N | 3.1 |
| KF57Y0.37KW | 69.12 | 0.37KW | 20rpm | 177N.m | 31Kg | 9700N | 3.4 |
Kf57 gear-reducing motor type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

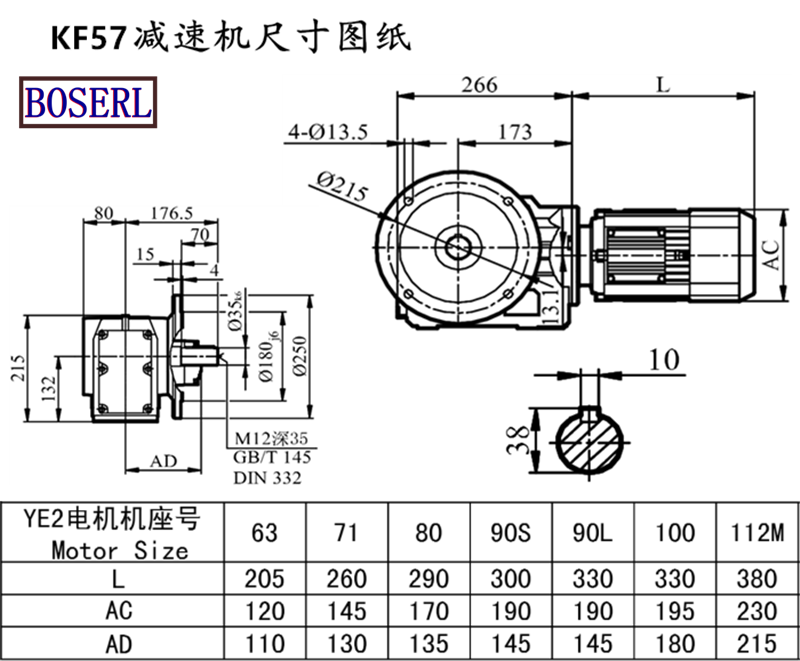

Installation of size drawings for the motor of the kf57 gear reduction machine
Showcasing of the motor production plant for the kf57 gear reduction machine: three days' advance appointment for the factory
Micro move motorPresentation of application cases:
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
