Kf57 gear deviation box etherDetailed Information

Kf57 gear deviation box ether
prevnext

Kf57 gear deviation box ether

TEL：Email:[email protected]
  1. 详细信息

Keyword: kf57 gear-reducing box electric unit_ kf57y100m4_kf57y90s4_kf57 gear-reducing box_kf57y90l4_kf57 gear-reducing box manufacturer_kf57 gear-reducing box manufacturer

KF57Y90L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF57Y90L444.432.2KW32rpm665N.m44Kg4450N0.9
KF57Y90L438.492.2KW36rpm575N.m44Kg7820N1.05
KF57Y90L435.72.2KW39rpm535N.m44Kg8140N1.1
KF57Y90L430.282.2KW46rpm450N.m44Kg8260N1.3
KF57Y90L427.342.2KW51rpm410N.m44Kg8170N1.45
KF57Y90L424.052.2KW58rpm360N.m44Kg8040N1.65
KF57Y90L422.712.2KW62rpm340N.m44Kg7980N1.75
KF57Y90L419.342.2KW72rpm290N.m44Kg7770N2
KF57Y90L417.572.2KW80rpm260N.m44Kg7640N2.1
KF57Y90L415.222.2KW92rpm225N.m44Kg7440N2.3
KF57Y90L413.25
2.2KW106rpm199N.m44Kg7230N2.6
KF57Y90L411.922.2KW117rpm179N.m44Kg6900N2.3
KF57Y90L411.262.2KW124rpm169N.m44Kg6820N2.5

Kf57y90s4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF57Y90S460.811.5KW23rpm620N.m42Kg7450N0.95
KF57Y90S457.421.5KW24rpm585N.m42Kg7730N1
KF57Y90S448.891.5KW29rpm500N.m42Kg8420N1.2
KF57Y90S444.431.5KW32rpm450N.m42Kg8640N1.3
KF57Y90S438.491.5KW36rpm390N.m42Kg8910N1.5
KF57Y90S435.71.5KW39rpm365N.m42Kg9030N1.65
KF57Y90S430.281.5KW46rpm305N.m42Kg9200N1.95
KF57Y90S427.341.5KW51rpm275N.m42Kg9020N2.2
KF57Y90S424.051.5KW58rpm245N.m42Kg8790N2.4
KF57Y90S422.711.5KW62rpm230N.m42Kg8680N2.6
KF57Y90S419.341.5KW72rpm198N.m42Kg8380N2.9

Kf57y100m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
KF57Y100M430.283KW46rpm615N.m49Kg7180N0.95
KF57Y100M427.343KW51rpm555N.m49Kg7190N1.05
KF57Y100M424.053KW58rpm490N.m49Kg7180N1.2
KF57Y100M422.713KW62rpm460N.m49Kg7160N1.3
KF57Y100M419.343KW72rpm395N.m49Kg7080N1.45
KF57Y100M417.573KW80rpm355N.m49Kg7020N1.55
KF57Y100M415.223KW92rpm310N.m49Kg6890N1.7
KF57Y100M413.25
3KW106rpm270N.m49Kg6750N1.9
KF57Y100M411.923KW117rpm240N.m49Kg6420N1.7
KF57Y100M411.263KW124rpm230N.m49Kg6360N1.8
KF57Y100M49.593KW146rpm196N.m49Kg6200N2.1
KF57Y100M48.713KW161rpm178N.m49Kg6090N2.2
KF57Y100M47.553KW186rpm154N.m49Kg5920N2.4
KF57Y100M46.57
3KW213rpm134N.m49Kg5750N2.6
KF57Y100M44.693KW298rpm96N.m49Kg5320N3.1

KF57 gear-reducing box electricsType:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

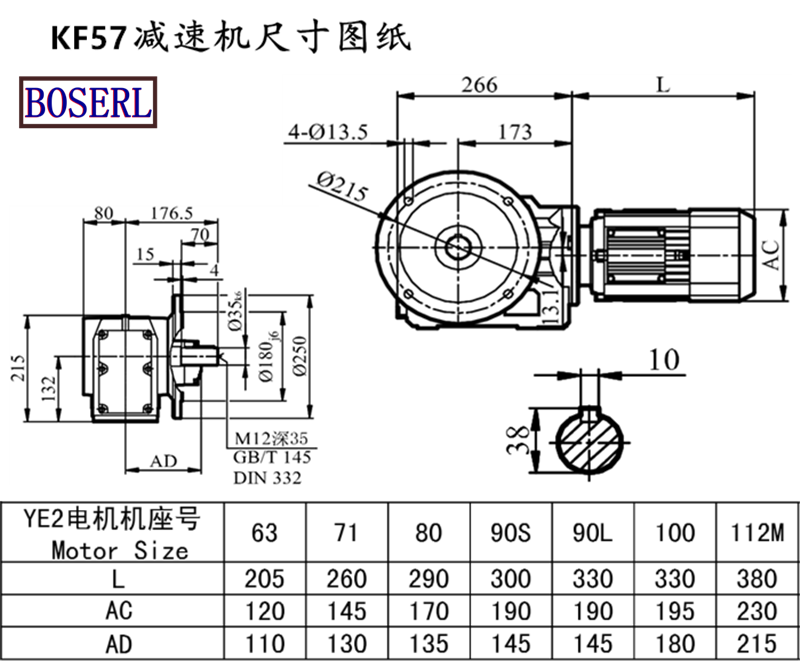

Installation of size drawings for the kf57 gear-reducing tank electric unit



Showcasing of the kf57 gear-retarder power plant: three days in advance

Micro move motorPresentation of application cases:

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
