Kf57 speed reduction motorDetailed Information
Keyword: kf57 deviation engine_kf57y012kw_kf57y0. 18kw_kf57 deviation machine_kf57 deviation factory_kf57 deviation plant
KF57Y0.12KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF57Y0.12KW | 145.14 | 0.12KW | 9.5rpm | 120N.m | 28Kg | 9870N | 5 |
| KF57Y0.12KW | 123.85 | 0.12KW | 11rpm | 103N.m | 28Kg | 9920N | 5.8 |
| KF57Y0.12KW | 108.29 | 0.12KW | 13rpm | 90N.m | 28Kg | 9950N | 6.7 |
| KF57Y0.12KW | 102.88 | 0.12KW | 13rpm | 85N.m | 28Kg | 9960N | 7 |
| KF57Y0.12KW | 90.26 | 0.12KW | 15rpm | 75N.m | 28Kg | 9990N | 8 |
K57y0. 18kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF57Y0.18KW | 145.14 | 0.18KW | 9.1rpm | 189N.m | 28Kg | 9670N | 3.2 |
| KF57Y0.18KW | 123.85 | 0.18KW | 11rpm | 161N.m | 28Kg | 9750N | 3.7 |
| KF57Y0.18KW | 108.29 | 0.18KW | 12rpm | 141N.m | 28Kg | 9810N | 4.3 |
| KF57Y0.18KW | 102.88 | 0.18KW | 13rpm | 134N.m | 28Kg | 9830N | 4.5 |
| KF57Y0.18KW | 90.26 | 0.18KW | 15rpm | 118N.m | 28Kg | 9880N | 5.1 |
| KF57Y0.18KW | 76.56 | 0.18KW | 17rpm | 100N.m | 28Kg | 9920N | 6 |
KF57 Deviation motorType:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

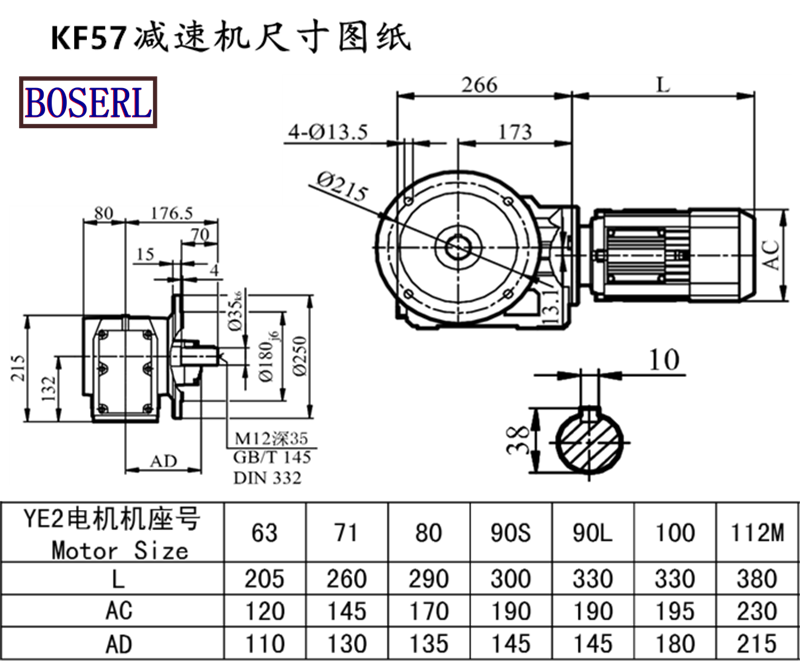

Installation of size drawings for kf57 reduction motor s
Kf57 power modinal production plant show: see the plant three days in advance
Micro move motorPresentation of application cases:
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
