Kf67 speed reduction motorDetailed Information
Keyword: kf67 reduction engine_kf67y0. 18kw_kf67y0. 25kw_kf67 reduction machine_kf67 reduction plant
KF67Y0.18KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67Y0.18KW | 144.79 | 0.18KW | 9.1rpm | 188N.m | 34Kg | 13000N | 4.4 |
| KF67Y0.18KW | 123.54 | 0.18KW | 11rpm | 161N.m | 34Kg | 13000N | 5.1 |
| KF67Y0.18KW | 108.03 | 0.18KW | 12rpm | 141N.m | 34Kg | 13000N | 5.8 |
KF67Y0.25KWSpeed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67Y0.25KW | 144.79 | 0.25KW | 9rpm | 265N.m | 35Kg | 13000N | 3.1 |
| KF67Y0.25KW | 123.54 | 0.25KW | 11rpm | 225N.m | 35Kg | 13000N | 3.6 |
| KF67Y0.25KW | 108.03 | 0.25KW | 12rpm | 198N.m | 35Kg | 13000N | 4.1 |
| KF67Y0.25KW | 102.62 | 0.25KW | 13rpm | 188N.m | 35Kg | 13000N | 4.4 |
Kf67 electric motor type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

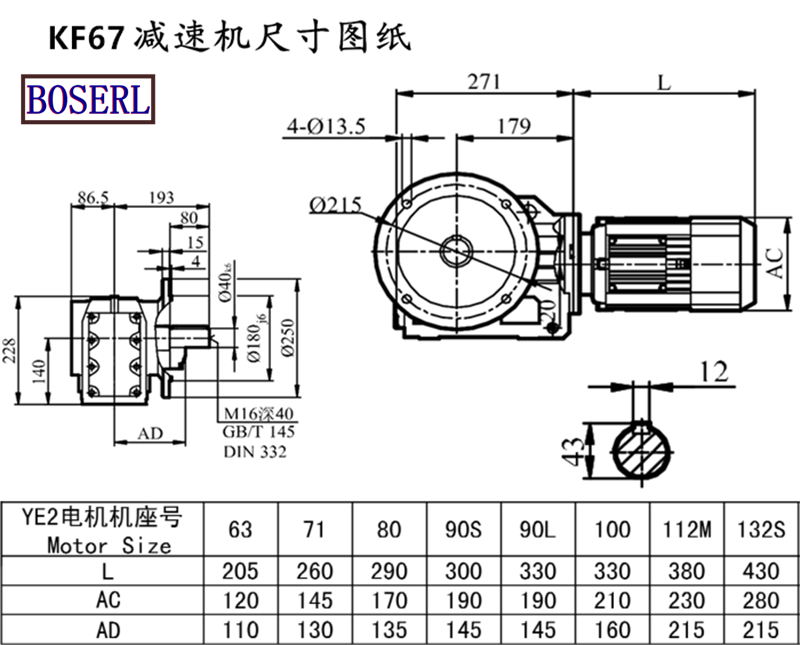

Installation of size drawings for kf67 reduction motor s
Showcasing of kf67 power-reducing power plant: three days' advance appointment for the factory
Micro move motorPresentation of application cases:
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: Kf67 speed reduction motor kf67y0. 18 kw kf67y0. 25 kw kf67 speed reduction machine kf67 speed reduction manufacturer
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF67减速机电动机样本 |
|
| KF67Y0.18KW三维图纸 |
|
