KF67R37DM71D4Detailed Information
Keywords: 1. 1 kw to service the turbo-pattern brake machine _kf67r37dm71d4_kf67r37drrs63s4
KF67R37DM71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DM71D4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DM71D4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DM71D4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DM71D4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DM71D4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DM71D4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DM71D4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DM71D4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DM71D4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
Kf67r37drrs63s4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRS63S4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DRS63S4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DRS63S4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DRS63S4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DRS63S4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DRS63S4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DRS63S4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DRS63S4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DRS63S4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DRS63S4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DRS63S4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DRS63S4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DRS63S4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DRS63S4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DRS63S4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
KF67R37DM71D4Speeding machine type:
K67r37dm71d4 bottom foot is fitted with tilt gear - umbrella gear-reducing power
Ka67br37dm71d4 foot hollow axis with slash gears - umbrella gear reduction power
The kv67br37dm71d4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing motor
The kh67br37dm71d4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dm71d4b5 installation of tilt gears - umbrella gear reduction power
Kaf67r37dm71d4b5franic air heart axis installation of tilt gear - umbrella gear deviation engine
Frf67r37dm71d4b5 installation of tilt gears - umbrella gear reduction power
Khf67r37dm71d4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka67r37dm71d4 tilt gears - an umbrella gear decelerator
The kv67r37dm71d4 space cores are equipped with tilt gears - an umbrella gear-reducing motor
Kh67r37dm71d4 sky axes locked tilt tilt gear - umbrella gear deviation engine
The kt67r37dm71d4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz67r37dm71d4b14 installation of tilt gear - umbrella gear reduction power
Kvz67r37dm71d4b14francocardial axis installation of tilt gears - umbrella gear reduction power
Khz67r37dm71d4b14 french axle locks fitted with tilt gears - an umbrella gear-reducing motor

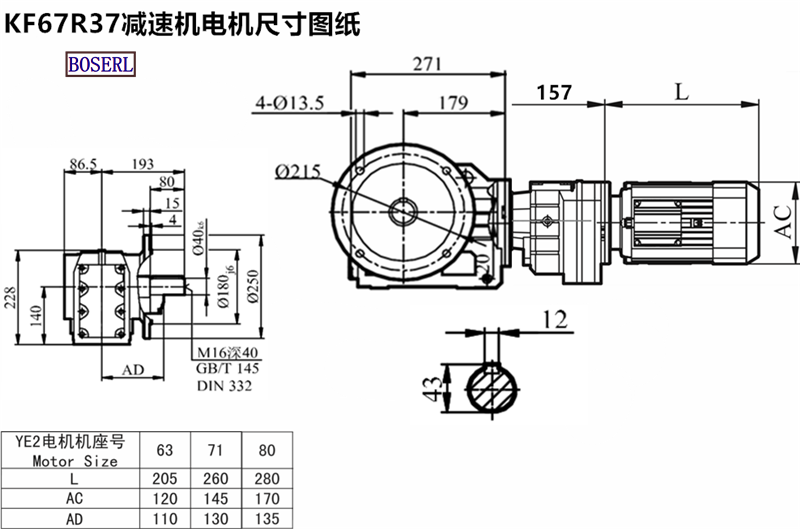

KF67R37DM71D4Induction Motor 3Ph motors installed size drawings
Kf67r37dm71d4 power-reducing plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
