KF67R37DM71M4Detailed Information
Keywords: 5. 5 kw for an electrical umbrella gear-retarder_kf67r37dm71m4_kf67r37dre63m4
KF67R37DM71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DM71M4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DM71M4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DM71M4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DM71M4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DM71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DM71M4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DM71M4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DM71M4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DM71M4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
Kf67r37dre63m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRE63M4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DRE63M4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DRE63M4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DRE63M4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DRE63M4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DRE63M4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DRE63M4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DRE63M4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DRE63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DRE63M4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DRE63M4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DRE63M4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DRE63M4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DRE63M4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DRE63M4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
KF67R37DM71M4Speeding machine type:
K67r37dm71m4 bottom foot fitted with slash gears - umbrella gear-reducing power
Ka67br37dm71m4 foot hollow axle is fitted with tilt gears - umbrella gear reduction power
The kv67br37dm71m4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh67br37dm71m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dm71m4b5 installation of tilt gears - umbrella gear-reducing power
Kaf67r37dm71m4b5 french aerocentric axis with tilt gears - an umbrella gear-reducing power plant
Kvf67r37dm71m4b5francocardiograms fitted with tilt gears - umbrella gear-reducing power
Khf67r37dm71m4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka67r37dm71m4 hollow axle tilt gears - umbrella gear reduction power
Kv67r37dm71m4 space cores fitted with tilt gears - umbrella gear-reducing motors
Kh67r37dm71m4 hollow axle locks the wheel slashing gears - an umbrella gear decelerator
The kt67r37dm71m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz67r37dm71m4b14 installation of tilt gear - umbrella gear-reducing power
Kvz67r37dm71m4b14francocardial axis installation of tilt gears - umbrella gear-reducing power
Khz67r37dm71m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

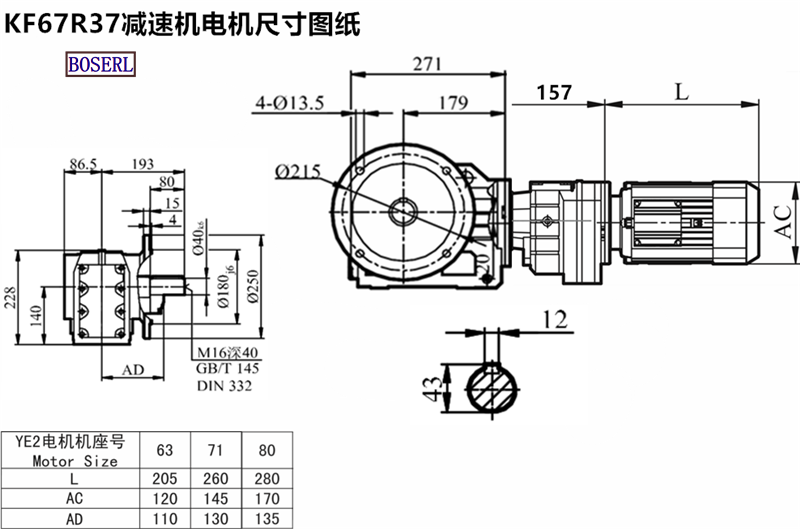

KF67R37DM71M4Induction Motor 3Ph motors installed size drawings
Kf67r37dm71m4reducing power plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
