1. 2kw to service an electrical umbrella gear reduction machine

KF67R37DT71S4Detailed Information

prevnext

KF67R37DT71S4

TEL：Email:[email protected]

详细信息

Keywords: 1. 2 kw for turbo-patron gear reduction machine_kf67r37dt71s4_kf67r37dr63ms4

KF67R37DT71S4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF67R37DT71S4	613	0.25KW	2.10r/min	970N.m	51.5kg	5680N	0.85
KF67R37DT71S4	542	0.25KW	2.40r/min	860N.m	51.5kg	9920N	0.95
KF67R37DT71S4	471	0.25KW	2.80r/min	775N.m	51.5kg	10700N	1.05
KF67R37DT71S4	420	0.25KW	3.10r/min	665N.m	51.5kg	11500N	1.25
KF67R37DT71S4	361	0.25KW	3.60r/min	590N.m	51.5kg	11900N	1.4
KF67R37DT71S4	323	0.25KW	4.00r/min	520N.m	51.5kg	12300N	1.55
KF67R37DT71S4	279	0.25KW	4.70r/min	440N.m	51.5kg	12600N	1.85
KF67R37DT71S4	246	0.25KW	5.30r/min	390N.m	51.5kg	12800N	2.10
KF67R37DT71S4	217	0.25KW	6.00r/min	345N.m	51.5kg	13000N	2.40

Kf67r37dr63ms4reducing motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF67R37DR63MS4	1351	0.12KW	1.00r/min	960N.m	47kg	6940N	0.85
KF67R37DR63MS4	1171	0.12KW	1.20r/min	820N.m	47kg	10300N	1.00
KF67R37DR63MS4	1034	0.12KW	1.30r/min	720N.m	47kg	11100N	1.15
KF67R37DR63MS4	903	0.12KW	1.50r/min	600N.m	47kg	11900N	1.35
KF67R37DR63MS4	793	0.12KW	1.70r/min	570N.m	47kg	12100N	1.45
KF67R37DR63MS4	697	0.12KW	2.00r/min	455N.m	47kg	12600N	1.80
KF67R37DR63MS4	613	0.12KW	2.20r/min	400N.m	47kg	12800N	2.00
KF67R37DR63MS4	542	0.12KW	2.60r/min	350N.m	47kg	13000N	2.30
KF67R37DR63MS4	471	0.12KW	2.90r/min	325N.m	47kg	13000N	2.50
KF67R37DR63MS4	420	0.12KW	3.30r/min	270N.m	47kg	13000N	3.00
KF67R37DR63MS4	361	0.12KW	3.80r/min	245N.m	47kg	13000N	3.30
KF67R37DR63MS4	323	0.12KW	4.30r/min	215N.m	47kg	13000N	3.80
KF67R37DR63MS4	279	0.12KW	5.00r/min	181N.m	47kg	13000N	4.50
KF67R37DR63MS4	246	0.12KW	5.60r/min	159N.m	47kg	13000N	5.20
KF67R37DR63MS4	217	0.12KW	6.40r/min	139N.m	47kg	13000N	5.90

KF67R37DT71S4Speeding machine type:

K67r37dt71s4 bottom foot with slash gears - umbrella gear reduction power

Ka67br37dt71s4 foot hollow axles with tilt gears - umbrella gear-reducing power

The kv67br37dt71s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor

Kh67br37dt71s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf67r37dt71s4b5 installation of tilt gears - umbrella gear reduction power

Kaf67r37dt71s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power

Kvf67r37dt71s4b5franco-axis installation of tilt gears - umbrella gear-reducing power

Khf67r37dt71s4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power

Ka67r37dt71s4 hollow axial tilt gears - umbrella gear reduction power

Kv67r37dt71s4 hollow gears - umbrella gear deviation engine

Kh67r37dt71s4 empty axle locks slashing gears - umbrella gear reduction power

Installation of tilt gears on kt67r37dt71s4 hollow axle - umbrella gear reduction power

Kaz67r37dt71s4b14 installation of tilt gear - umbrella gear reduction power

Kvz67r37dt71s4b14 installation of tilt gears - umbrella gear deviation engine

Khz67r37dt71s4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

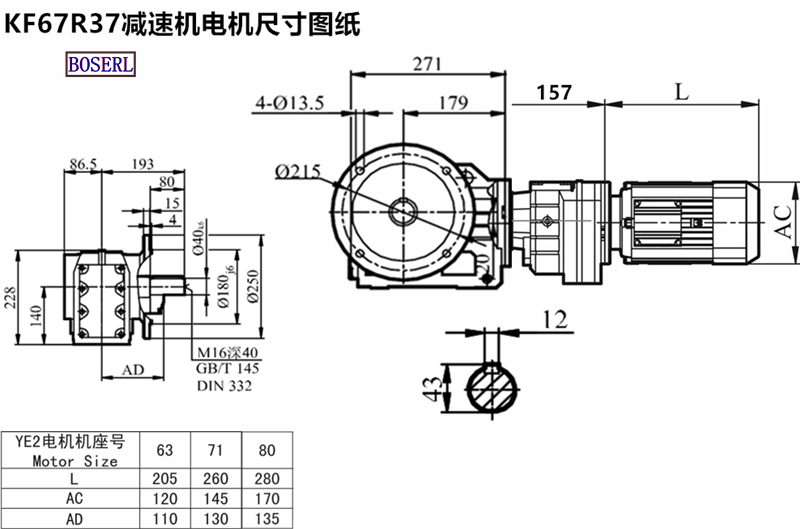

KF67R37DT71S4Induction Motor 3Ph motors installed size drawings

Kf67r37dt71s4 deviation electric power plant, three days' appointmentMicro move motor

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
