KF67R37DV71D4Detailed Information
Keywords: 1. 5 kw for turbo-patron gear reduction machine_kf67r37dv71d4_kf67r37drrn63s4
KF67R37DV71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DV71D4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DV71D4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DV71D4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DV71D4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DV71D4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DV71D4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DV71D4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DV71D4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DV71D4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
Kf67r37drn63s4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRN63S4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DRN63S4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DRN63S4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DRN63S4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DRN63S4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DRN63S4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DRN63S4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DRN63S4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DRN63S4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DRN63S4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DRN63S4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DRN63S4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DRN63S4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DRN63S4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DRN63S4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
KF67R37DV71D4Speeding machine type:
K67r37dv71d4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka67br37dv71d4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv67br37dv71d4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh67br37dv71d4 bottom foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf67r37dv71d4b5 installation of tilt gears - umbrella gear reduction power
Kaf67r37dv71d4b5farland aerocentric axis with tilt gears - umbrella gear-reducing power
Kvf67r37dv71d4b5francocardoaxis installed with tilt gears - umbrella gear-reducing motors
Khf67r37dv71d4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka67r37dv71d4 hollow axle slash gears - umbrella gear reduction power
The kv67r37dv71d4 spaced axle is equipped with tilt gears - an umbrella gear-reducing motor
Kh67r37dv71d4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt67r37dv71d4 hollow axle - umbrella gear reduction power
Kaz67r37dv71d4b14 french aerocentric axles with tilt gears - an umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors - franco-kv67r37dv71d4b14
Khz67r37dv71d4b14farland axle locks with tilt gears - an umbrella gear-reducing power plant

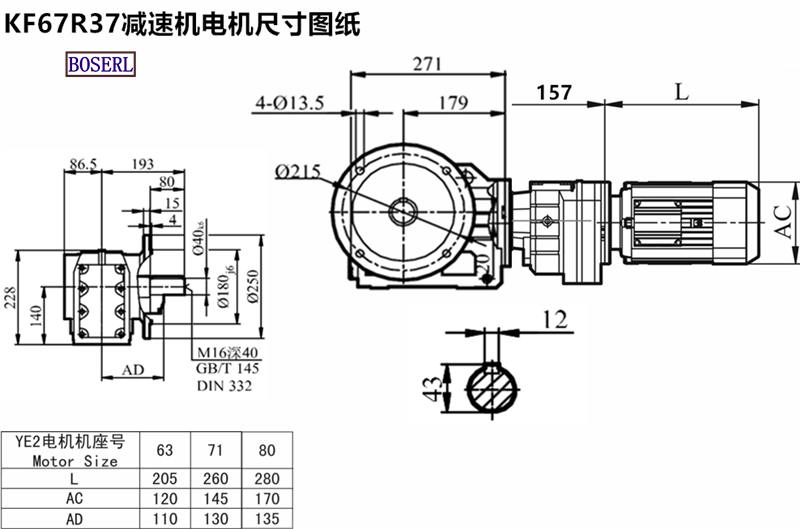

KF67R37DV71D4Induction Motor 3Ph motors installed size drawings
Kf67r37dv71d4 power-reducing plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
