KF67R37DV71M4Detailed Information
Keywords: 15kw for an electrical umbrella gear-retarder_kf67r37dv71m4_kf67r37drrn63m4
KF67R37DV71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DV71M4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DV71M4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DV71M4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DV71M4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DV71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DV71M4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DV71M4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DV71M4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DV71M4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
Kf67r37drn63m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRN63M4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DRN63M4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DRN63M4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DRN63M4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DRN63M4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DRN63M4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DRN63M4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DRN63M4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DRN63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DRN63M4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DRN63M4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DRN63M4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DRN63M4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DRN63M4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DRN63M4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
KF67R37DV71M4Speeding machine type:
K67r37dv71m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka67br37dv71m4 foot hollow axis with tilt gear - umbrella gear-reducing power
Kv67br37dv71m4 foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh67br37dv71m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf67r37dv71m4b5 installation of tilt gears - umbrella gear reduction power
Kaf67r37dv71m4b5farland axis installation of tilt gears - umbrella gear reduction power
Frf67r37dv71m4b5 installation of tilt gear - umbrella gear-reducing power
Khf67r37dv71m4b5franish axle locks fitted with tilt gears - umbrella gear-reducing power
Ka67r37dv71m4 hollow axle tilt gears - an umbrella gear reduction power
Kv67r37dv71m4 spaced axles with tilt gears - umbrella gear-reducing power
Kh67r37dv71m4 empty axle locks slashing gears - umbrella gear deceleration power
Kt67r37dv71m4 empty heart axes installation of tilt gear - umbrella gear deviation power
Kaz67r37dv71m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axle
Khz67r37dv71m4b14farland axle locks with tilt gears - an umbrella gear-reducing motor

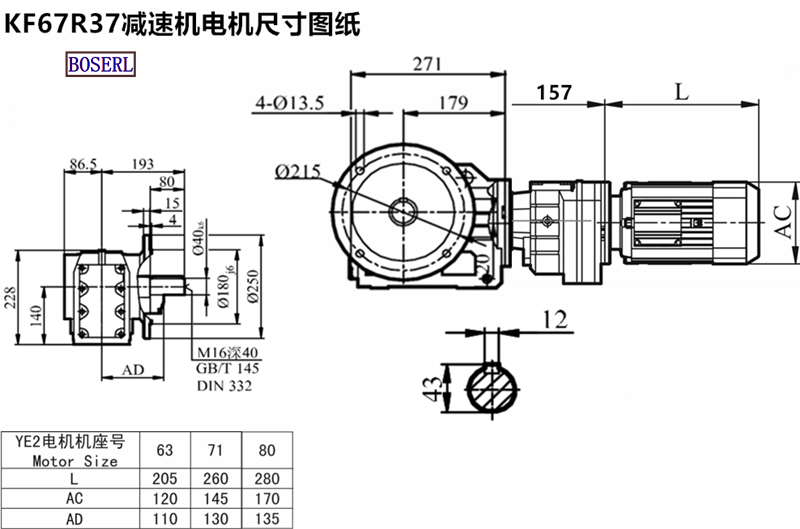

KF67R37DV71M4Induction Motor 3Ph motors installed size drawings
Kf67r37dv71m4reducing power plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
