KF67R37DVE63M4Detailed Information
Keywords: 4. 7 kw to service the turbo-patron gear reduction machine _kf67r37dve63m4_kf67r37dt71m4
KF67R37DVE63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DVE63M4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DVE63M4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DVE63M4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DVE63M4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DVE63M4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DVE63M4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DVE63M4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DVE63M4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DVE63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DVE63M4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DVE63M4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DVE63M4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DVE63M4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DVE63M4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DVE63M4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
KF67R37DT71M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DT71M4 | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| KF67R37DT71M4 | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| KF67R37DT71M4 | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| KF67R37DT71M4 | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| KF67R37DT71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| KF67R37DT71M4 | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| KF67R37DT71M4 | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| KF67R37DT71M4 | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| KF67R37DT71M4 | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
KF67R37DVE63M4Speeding machine type:
K67r37dve63m4 foot is fitted with tilt gears - umbrella gear reduction power
Ka67br37dve63m4 bottom-foot hollow axis is equipped with tilt gears - umbrella gear reduction power
Kv67br37dve63m4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
The kh67br37dve63m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf67r37dve63m4b5 installation of tilt gears - umbrella gear reduction power
Kaf67r37dve63m4b5farland axis installation of tilt gears - umbrella gear-reducing power
Frf67r37dve63m4b5 installation of tilt gear - umbrella gear deviation engine
Khf67r37dve63m4b5farland axle locks with tilt gears - an umbrella gear-reducing power plant
Ka67r37dve63m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv67r37dve63m4 sky axis installation of tilt gear - umbrella gear deviation engine
Kh67r37dve63m4 hollow axle locks the slashing gears - the umbrella gear reduction power
The kt67r37dve63m4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz67r37dve63m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the frandra axis
Khz67r37dve63m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

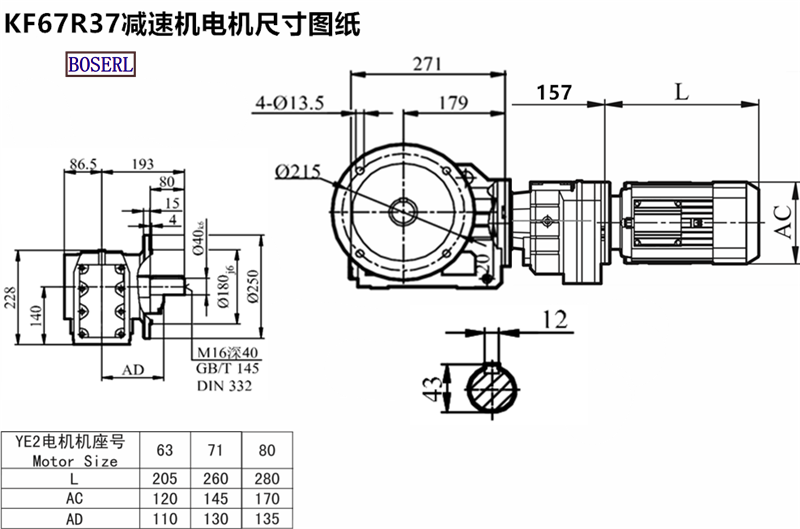

KF67R37DVE63M4Induction Motor 3Ph motors installed size drawings
Kf67r37dve63m4 deviation power plant, three days' advance appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
