KF67R37DVE63S4Detailed Information
Keyword: 2. 9kw for the electric turbo-turber _kf67r37dve63s4_kf67r37dre80n4
KF67R37DVE63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DVE63S4 | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| KF67R37DVE63S4 | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| KF67R37DVE63S4 | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| KF67R37DVE63S4 | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| KF67R37DVE63S4 | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| KF67R37DVE63S4 | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| KF67R37DVE63S4 | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| KF67R37DVE63S4 | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| KF67R37DVE63S4 | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| KF67R37DVE63S4 | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| KF67R37DVE63S4 | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| KF67R37DVE63S4 | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| KF67R37DVE63S4 | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| KF67R37DVE63S4 | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| KF67R37DVE63S4 | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
Kf67r37dre80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF67R37DRE80N4 | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| KF67R37DRE80N4 | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| KF67R37DRE80N4 | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| KF67R37DRE80N4 | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |
KF67R37DVE63S4Speeding machine type:
K67r37dve63s4 bottom foot is fitted with tilt gears - umbrella gear decelerator
Ka67br37dve63s4 foot hollow axis is equipped with tilt gears - umbrella gear reduction power
Kv67br37dve63s4 bottom foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh67br37dve63s4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf67r37dve63s4b5 installation of tilt gears - umbrella gear deceleration power
Kaf67r37dve63s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf67r37dve63s4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf67r37dve63s4b5farland axle locks fitted with tilt gears - an umbrella gear-reducing motor
Ka67r37dve63s4 hollow axle tilt gears - an umbrella gear-reducing power plant
Kv67r37dve63s4 spaced axles with tilt gears - umbrella gear reduction power
Kh67r37dve63s4 empty axle locks the slashing gears - the umbrella gear-reducing power
The kt67r37dve63s4 hollow axis is equipped with tilt gears - an umbrella gear decelerator
Kaz67r37dve63s4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears on the franco-axis-axis-synthetic gear deviation electrics
Khz67r37dve63s4b14farland air-cystolic axe locks fitted with tilt gears - umbrella gear-reducing motors

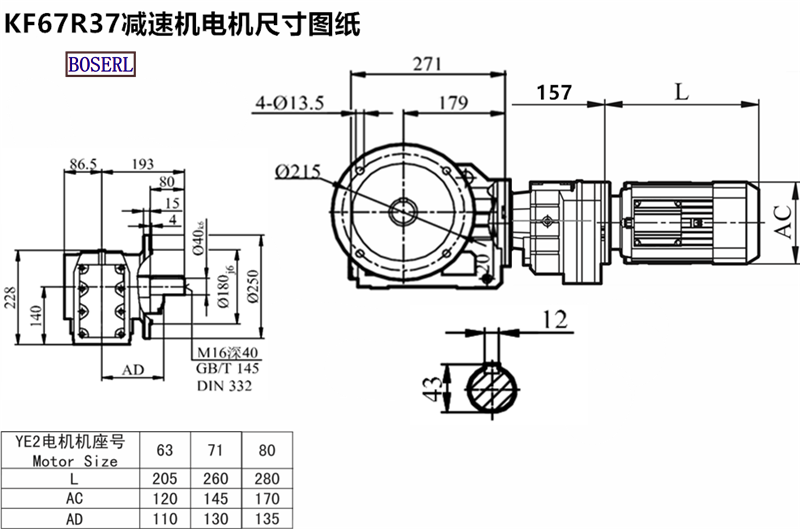

KF67R37DVE63S4Induction Motor 3Ph motors installed size drawings
Kf67r37dve63s4 deviation power plant, three days' advance appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
