30kw for an electrical umbrella gear-reducing machine

KF67R37DVE80M4Detailed Information

prevnext

KF67R37DVE80M4

TEL：Email:[email protected]

详细信息

Keyword: 30kw for an electrical umbrella gear-retarder_kf67r37dve80m4_kf67r37dt63m4

KF67R37DVE80M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF67R37DVE80M4	279	0.55KW	5.00r/min	950N.m	56.5kg	7650N	0.85
KF67R37DVE80M4	246	0.55KW	5.60r/min	840N.m	56.5kg	10100N	0.95
KF67R37DVE80M4	217	0.55KW	6.40r/min	745N.m	56.5kg	10900N	1.10
KF67R37DVE80M4	191	0.55KW	7.20r/min	655N.m	56.5kg	11600N	1.25

Kf67r37dt63m4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF67R37DT63M4	1351	0.12KW	1.00r/min	960N.m	47kg	6940N	0.85
KF67R37DT63M4	1171	0.12KW	1.20r/min	820N.m	47kg	10300N	1.00
KF67R37DT63M4	1034	0.12KW	1.30r/min	720N.m	47kg	11100N	1.15
KF67R37DT63M4	903	0.12KW	1.50r/min	600N.m	47kg	11900N	1.35
KF67R37DT63M4	793	0.12KW	1.70r/min	570N.m	47kg	12100N	1.45
KF67R37DT63M4	697	0.12KW	2.00r/min	455N.m	47kg	12600N	1.80
KF67R37DT63M4	613	0.12KW	2.20r/min	400N.m	47kg	12800N	2.00
KF67R37DT63M4	542	0.12KW	2.60r/min	350N.m	47kg	13000N	2.30
KF67R37DT63M4	471	0.12KW	2.90r/min	325N.m	47kg	13000N	2.50
KF67R37DT63M4	420	0.12KW	3.30r/min	270N.m	47kg	13000N	3.00
KF67R37DT63M4	361	0.12KW	3.80r/min	245N.m	47kg	13000N	3.30
KF67R37DT63M4	323	0.12KW	4.30r/min	215N.m	47kg	13000N	3.80
KF67R37DT63M4	279	0.12KW	5.00r/min	181N.m	47kg	13000N	4.50
KF67R37DT63M4	246	0.12KW	5.60r/min	159N.m	47kg	13000N	5.20
KF67R37DT63M4	217	0.12KW	6.40r/min	139N.m	47kg	13000N	5.90

KF67R37DVE80M4Speeding machine type:

K67r37dve80m4 foot is fitted with tilt gears - umbrella gear reduction power

Ka67br37dve80m4 bottom foot hollow axis installed with tilt gears - umbrella gear reduction power

The kv67br37dve80m4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power

Kh67br37dve80m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf67r37dve80m4b5 installation of tilt gear - umbrella gear-reducing power

Kaf67r37dve80m4b5farland axis installation of tilt gear - umbrella gear deviation engine

Frf67r37dve80m4b5 installation of tilt gears - umbrella gear reduction power

Khf67r37dve80m4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power

Ka67r37dve80m4 hollow axle tilt gears - umbrella gear deceleration power

Kv67r37dve80m4 space cores fitted with slash gears - umbrella gear reduction power

Kh67r37dve80m4 hollow axle locks the slant gears - an umbrella gear-reducing motor

The kt67r37dve80m4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant

Kaz67r37dve80m4b14 installation of tilt gear - umbrella gear-reducing power

Kvz67r37dve80m4b14 franco-axis fitted with tilt gears - an umbrella gear-reducing power plant

Khz67r37dve80m4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

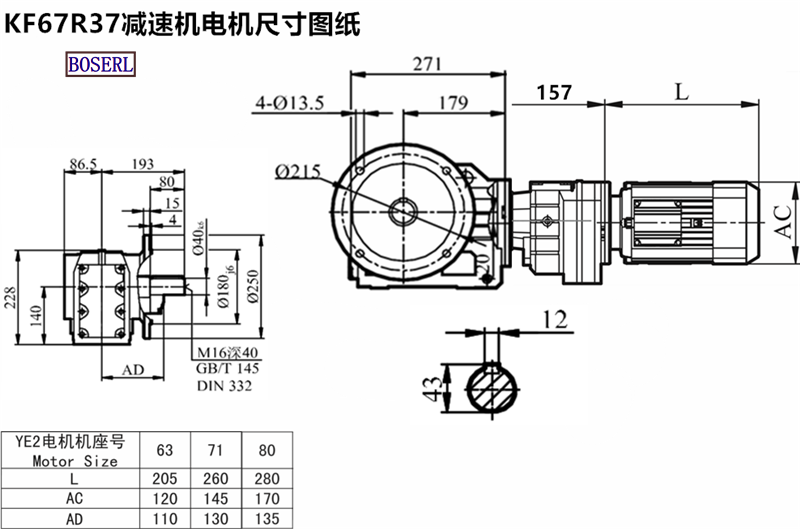

KF67R37DVE80M4Induction Motor 3Ph motors installed size drawings

Kf67r37dve80m4 deviation electric power plant, three days' appointmentMicro move motor

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
