KF77DM132MC4Detailed Information

prevnext

KF77DM132MC4

TEL：Email:[email protected]

详细信息

Keyword: flatten 65 tons of loader decelerator_kf77dm132mc4_kf77dm132ml4

KF77DM132MC4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF77DM132MC4	30.89	7.5KW	47rpm	1530N.m	110Kg	15500N	1
KF77DM132MC4	29.27	7.5KW	49rpm	1450N.m	110Kg	16000N	1.05
KF77DM132MC4	25.62	7.5KW	56rpm	1260N.m	110Kg	17100N	1.2
KF77DM132MC4	23.08	7.5KW	63rpm	1140N.m	110Kg	17700N	1.35
KF77DM132MC4	20.25	7.5KW	71rpm	1000N.m	110Kg	18300N	1.5
KF77DM132MC4	17.87	7.5KW	81rpm	880N.m	110Kg	18500N	1.65
KF77DM132MC4	15.84	7.5KW	91rpm	780N.m	110Kg	18200N	1.8
KF77DM132MC4	13.52	7.5KW	107rpm	670N.m	110Kg	17700N	2
KF77DM132MC4	12.36	7.5KW	117rpm	610N.m	110Kg	17000N	1.65
KF77DM132MC4	10.84	7.5KW	133rpm	535N.m	110Kg	16600N	1.85
KF77DM132MC4	9.56	7.5KW	151rpm	470N.m	110Kg	16300N	2
KF77DM132MC4	8.48	7.5KW	170rpm	420N.m	110Kg	15900N	2.1
KF77DM132MC4	7.24	7.5KW	200rpm	355N.m	110Kg	15400N	2.3

Kf77dm132ml4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF77DM132ML4	30.89	7.5KW	47rpm	1530N.m	110Kg	15500N	1
KF77DM132ML4	29.27	7.5KW	49rpm	1450N.m	110Kg	16000N	1.05
KF77DM132ML4	25.62	7.5KW	56rpm	1260N.m	110Kg	17100N	1.2
KF77DM132ML4	23.08	7.5KW	63rpm	1140N.m	110Kg	17700N	1.35
KF77DM132ML4	20.25	7.5KW	71rpm	1000N.m	110Kg	18300N	1.5
KF77DM132ML4	17.87	7.5KW	81rpm	880N.m	110Kg	18500N	1.65
KF77DM132ML4	15.84	7.5KW	91rpm	780N.m	110Kg	18200N	1.8
KF77DM132ML4	13.52	7.5KW	107rpm	670N.m	110Kg	17700N	2
KF77DM132ML4	12.36	7.5KW	117rpm	610N.m	110Kg	17000N	1.65
KF77DM132ML4	10.84	7.5KW	133rpm	535N.m	110Kg	16600N	1.85
KF77DM132ML4	9.56	7.5KW	151rpm	470N.m	110Kg	16300N	2
KF77DM132ML4	8.48	7.5KW	170rpm	420N.m	110Kg	15900N	2.1
KF77DM132ML4	7.24	7.5KW	200rpm	355N.m	110Kg	15400N	2.3

Type of kf77dm132mc4 deceleration machine:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

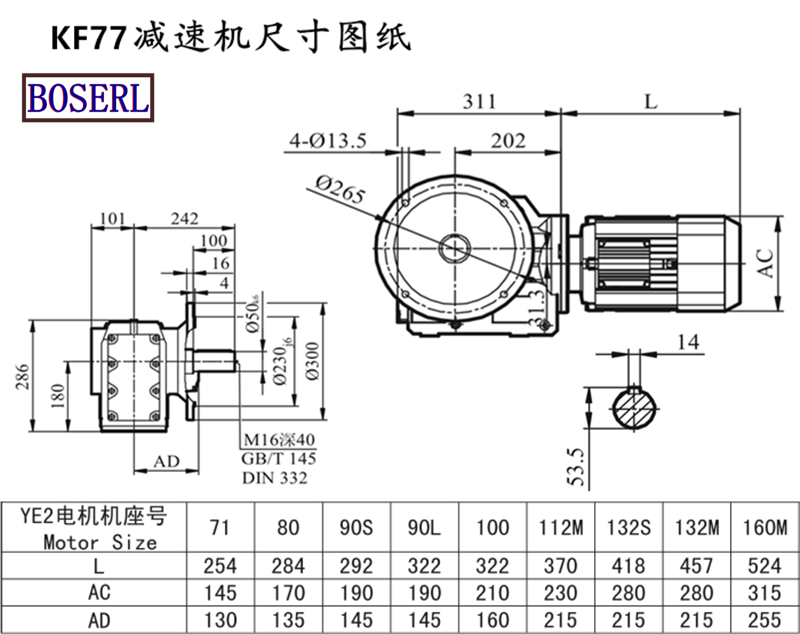

Installation of size drawings for kf77dm132mc4 reduction motor

Display of kf77dm132mc4 deviation plant: see the plant for three days

Micro move motorPresentation of application cases:

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
