KF77DV80M4Detailed Information
Keyword: delivery of 68 tons of loader reduction machine_kf77dv80m4_kf77dve80m4
KF77DV80M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77DV80M4 | 135.28 | 1.1KW | 10rpm | 1000N.m | 69Kg | 18300N | 1.55 |
| KF77DV80M4 | 128.52 | 1.1KW | 11rpm | 950N.m | 69Kg | 18500N | 1.6 |
| KF77DV80M4 | 113.56 | 1.1KW | 12rpm | 840N.m | 69Kg | 18800N | 1.85 |
| KF77DV80M4 | 97.05 | 1.1KW | 15rpm | 720N.m | 69Kg | 19200N | 2.1 |
| KF77DV80M4 | 88.97 | 1.1KW | 16rpm | 660N.m | 69Kg | 19400N | 2.3 |
| KF77DV80M4 | 78.07 | 1.1KW | 18rpm | 580N.m | 69Kg | 19500N | 2.7 |
| KF77DV80M4 | 73.99 | 1.1KW | 19rpm | 550N.m | 69Kg | 19600N | 2.8 |
KF77DVE80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77DVE80M4 | 135.28 | 1.1KW | 10rpm | 1000N.m | 69Kg | 18300N | 1.55 |
| KF77DVE80M4 | 128.52 | 1.1KW | 11rpm | 950N.m | 69Kg | 18500N | 1.6 |
| KF77DVE80M4 | 113.56 | 1.1KW | 12rpm | 840N.m | 69Kg | 18800N | 1.85 |
| KF77DVE80M4 | 97.05 | 1.1KW | 15rpm | 720N.m | 69Kg | 19200N | 2.1 |
| KF77DVE80M4 | 88.97 | 1.1KW | 16rpm | 660N.m | 69Kg | 19400N | 2.3 |
| KF77DVE80M4 | 78.07 | 1.1KW | 18rpm | 580N.m | 69Kg | 19500N | 2.7 |
| KF77DVE80M4 | 73.99 | 1.1KW | 19rpm | 550N.m | 69Kg | 19600N | 2.8 |
KF77DV80M4Speeding machine type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

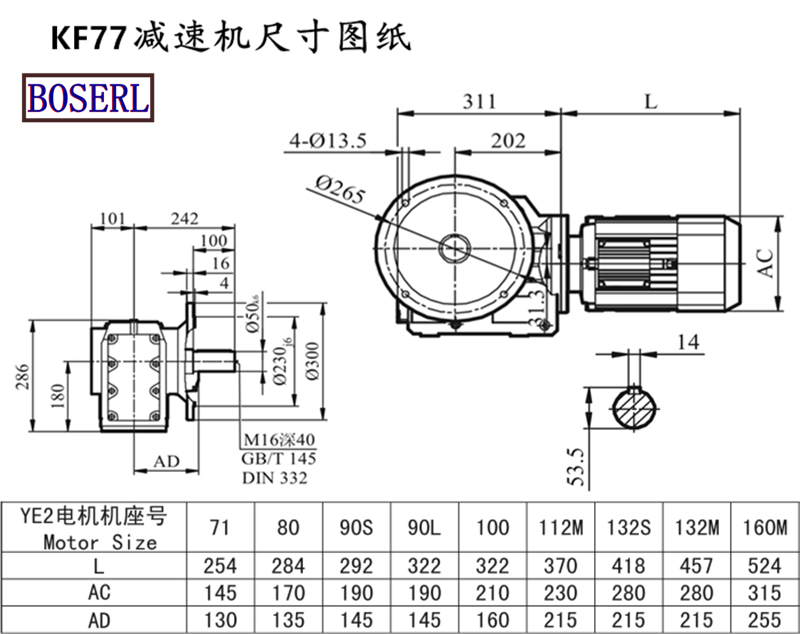

KF77DV80M4Induction Motor 3Ph motors installed size drawings
KF77DV80M4At thereducing plant: three days in advance
Micro move motorPresentation of application cases:
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
