KF77R37DRS63L4Detailed Information
Keyword: 0. 9 kw for an electrical umbrella gear-retarder _kf77r37drrs63l4_kf77r37dve80mk4
KF77R37DRS63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DRS63L4 | 1514 | 0.18KW | 0.87r/min | 1710N.m | 71.5kg | 14100N | 0.90 |
| KF77R37DRS63L4 | 1388 | 0.18KW | 0.95r/min | 1570N.m | 71.5kg | 15200N | 1.00 |
| KF77R37DRS63L4 | 1218 | 0.18KW | 1.10r/min | 1380N.m | 71.5kg | 16500N | 1.10 |
| KF77R37DRS63L4 | 1053 | 0.18KW | 1.20r/min | 1200N.m | 71.5kg | 17400N | 1.30 |
| KF77R37DRS63L4 | 924 | 0.18KW | 1.40r/min | 1050N.m | 71.5kg | 18100N | 1.45 |
| KF77R37DRS63L4 | 815 | 0.18KW | 1.60r/min | 930N.m | 71.5kg | 18600N | 1.65 |
| KF77R37DRS63L4 | 709 | 0.18KW | 1.90r/min | 760N.m | 71.5kg | 19100N | 2.00 |
| KF77R37DRS63L4 | 622 | 0.18KW | 2.10r/min | 665N.m | 71.5kg | 19300N | 2.30 |
| KF77R37DRS63L4 | 552 | 0.18KW | 2.40r/min | 600N.m | 71.5kg | 19500N | 2.60 |
| KF77R37DRS63L4 | 485 | 0.18KW | 2.70r/min | 525N.m | 71.5kg | 19600N | 2.90 |
| KF77R37DRS63L4 | 428 | 0.18KW | 3.10r/min | 465N.m | 71.5kg | 19800N | 3.30 |
| KF77R37DRS63L4 | 367 | 0.18KW | 3.60r/min | 410N.m | 71.5kg | 19800N | 3.80 |
Kf77r37dve80mk4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DVE80MK4 | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| KF77R37DVE80MK4 | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| KF77R37DVE80MK4 | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| KF77R37DVE80MK4 | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| KF77R37DVE80MK4 | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| KF77R37DVE80MK4 | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| KF77R37DVE80MK4 | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| KF77R37DVE80MK4 | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| KF77R37DVE80MK4 | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| KF77R37DVE80MK4 | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
KF77R37DRS63L4Speeding machine type:
K77r37drrs63l4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka77br37drrs63l4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv77br37drrs63l4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing motor
Kh77br37drrs63l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf77r37drrs63l4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37drrs63l4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37drrs63l4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf77r37drrs63l4b5farland axle locks with tilt gears - an umbrella gear-reducing motor
Ka77r37drrs63l4 hollow axle tilt gears - an umbrella gear deceleration power
Kv77-r37drrs63l4 spaced axles with tilt gears - umbrella gear-reducing power
Kh77r37drrs63l4 empty axle locks slashing gears - an umbrella gear decelerator
The kt77r37drrs63l4 hollow axle is fitted with tilt gears - an umbrella gear reduction power
Kaz77r37drrs63l4b14 installation of tilt gear - umbrella gear reduction power
Kvz77r37drrs63l4b14 franco-axis installation of tilt gears - umbrella gear-reducing motors
Khz77r37drrs63l4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

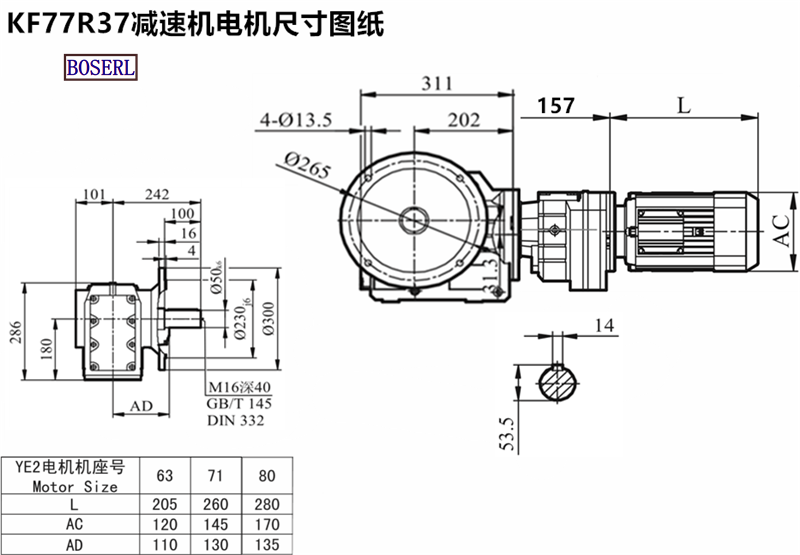

KF77R37DRS63L4Induction Motor 3Ph motors installed size drawings
Kf77r37drrs63l4 power-reducing plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 9kw for an electrical umbrella gear-reducing motor kf77r37drrs63l4 kf77r37dve80mk4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF77R37DRS63L4减速机样本 |
|
| KF77R37DRS63L4减速机三维图纸 |
|
