KF77R37DRS63S4Detailed Information
Keyword: 10kw for an electrical umbrella gear-retarder _kf77r37drrs63s4_kf77r37dve80n4
KF77R37DRS63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DRS63S4 | 2717 | 0.12KW | 0.51r/min | 1840N.m | 71kg | 11500N | 0.85 |
| KF77R37DRS63S4 | 2370 | 0.12KW | 0.58r/min | 1530N.m | 71kg | 15500N | 1.00 |
| KF77R37DRS63S4 | 2050 | 0.12KW | 0.67r/min | 1430N.m | 71kg | 16100N | 1.10 |
| KF77R37DRS63S4 | 1772 | 0.12KW | 0.78r/min | 1220N.m | 71kg | 17300N | 1.25 |
| KF77R37DRS63S4 | 1514 | 0.12KW | 0.91r/min | 1040N.m | 71kg | 18100N | 1.50 |
| KF77R37DRS63S4 | 1388 | 0.12KW | 0.99r/min | 960N.m | 71kg | 18500N | 1.60 |
| KF77R37DRS63S4 | 1218 | 0.12KW | 1.10r/min | 840N.m | 71kg | 18900N | 1.85 |
| KF77R37DRS63S4 | 1053 | 0.12KW | 1.30r/min | 735N.m | 71kg | 19200N | 2.10 |
| KF77R37DRS63S4 | 924 | 0.12KW | 1.50r/min | 645N.m | 71kg | 19400N | 2.40 |
| KF77R37DRS63S4 | 815 | 0.12KW | 1.70r/min | 570N.m | 71kg | 19600N | 2.70 |
| KF77R37DRS63S4 | 709 | 0.12KW | 2.00r/min | 445N.m | 71kg | 19800N | 3.50 |
| KF77R37DRS63S4 | 622 | 0.12KW | 2.20r/min | 390N.m | 71kg | 19900N | 3.90 |
Kf77r37dve80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DVE80N4 | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| KF77R37DVE80N4 | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| KF77R37DVE80N4 | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| K77R37DVE80N4 | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| K77R37DVE80N4 | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
KF77R37DRS63S4Speeding machine type:
K77r37drrs63s4 bottom foot is fitted with slash gears - umbrella gear reduction power
Ka77br37drrs63s4 bottom foot hollow axis with tilt gear - umbrella gear-reducing motor
The kv77br37drrs63s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh77br37drrs63s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37drrs63s4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37drrs63s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37drrs63s4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf77r37drrs63s4b5 french axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka77r37drrs63s4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv77r37drrs63s4 space cores fitted with tilt gears - umbrella gear reduction power
Kh77r37drrs63s4 empty axle locks slashing gears - an umbrella gear-reducing motor
The kt77r37drrs63s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz77r37drrs63s4b14 installation of tilt gear - umbrella gear-reducing power
Kvz77r37drrs63s4b14 flannel axles installed slashing gears - umbrella gear reduction power
Khz77r37drrs63s4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

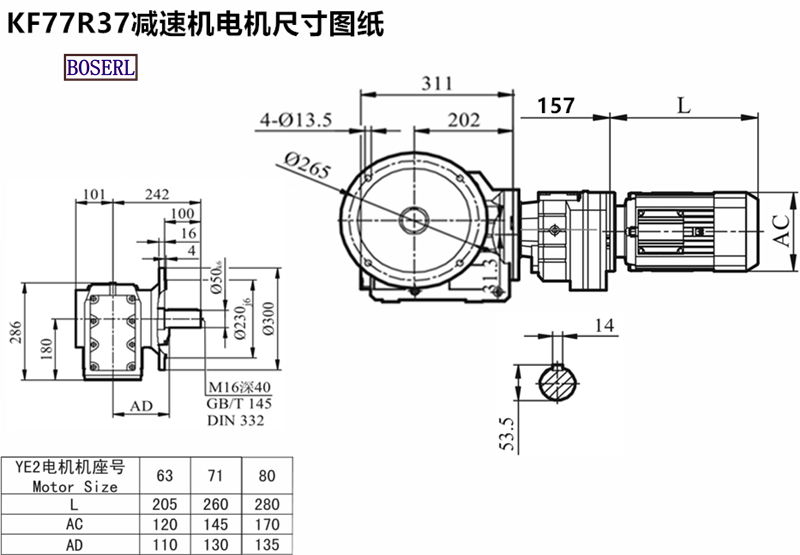

KF77R37DRS63S4Induction Motor 3Ph motors installed size drawings
Kf77r37drrs63s4 deviation power plant, three days' advance appointmentMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 10kw for an electrical umbrella gear-reducing motor kf77r37drs63s4kf77r37dve80n4
- 上一条KF77R37DM80S4
- 下一条KF77R37DRS71S4
