KF77R37DT63S4Detailed Information
Keyword: 0. 75 kw for turbo-turb-ret-reducing electric generator_kf77r37dt63s4_kf77r37dre80mk4
KF77R37DT63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DT63S4 | 2717 | 0.12KW | 0.51r/min | 1840N.m | 71kg | 11500N | 0.85 |
| KF77R37DT63S4 | 2370 | 0.12KW | 0.58r/min | 1530N.m | 71kg | 15500N | 1.00 |
| KF77R37DT63S4 | 2050 | 0.12KW | 0.67r/min | 1430N.m | 71kg | 16100N | 1.10 |
| KF77R37DT63S4 | 1772 | 0.12KW | 0.78r/min | 1220N.m | 71kg | 17300N | 1.25 |
| KF77R37DT63S4 | 1514 | 0.12KW | 0.91r/min | 1040N.m | 71kg | 18100N | 1.50 |
| KF77R37DT63S4 | 1388 | 0.12KW | 0.99r/min | 960N.m | 71kg | 18500N | 1.60 |
| KF77R37DT63S4 | 1218 | 0.12KW | 1.10r/min | 840N.m | 71kg | 18900N | 1.85 |
| KF77R37DT63S4 | 1053 | 0.12KW | 1.30r/min | 735N.m | 71kg | 19200N | 2.10 |
| KF77R37DT63S4 | 924 | 0.12KW | 1.50r/min | 645N.m | 71kg | 19400N | 2.40 |
| KF77R37DT63S4 | 815 | 0.12KW | 1.70r/min | 570N.m | 71kg | 19600N | 2.70 |
| KF77R37DT63S4 | 709 | 0.12KW | 2.00r/min | 445N.m | 71kg | 19800N | 3.50 |
| KF77R37DT63S4 | 622 | 0.12KW | 2.20r/min | 390N.m | 71kg | 19900N | 3.90 |
Kf77r37dre80mk4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DRE80MK4 | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| KF77R37DRE80MK4 | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| KF77R37DRE80MK4 | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| KF77R37DRE80MK4 | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| KF77R37DRE80MK4 | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| KF77R37DRE80MK4 | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| KF77R37DRE80MK4 | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| KF77R37DRE80MK4 | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| KF77R37DRE80MK4 | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| KF77R37DRE80MK4 | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
KF77R37DT63S4Speeding machine type:
K77r37dt63s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka77br37dt63s4 foot hollow axle is fitted with tilt gears - umbrella gear reduction power
Kv77br37dt63s4 foot larvae axis with tilt gears - umbrella gear reduction power
Kh77br37dt63s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37dt63s4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37dt63s4b5 french aerocentric axle is equipped with tilt gears - umbrella gear reduction power
Kvf77r37dt63s4b5franco-axis installation of tilt gears - umbrella gear reduction power
Khf77r37dt63s4b5 french axial axle locks fitted with tilt gears - umbrella gear-reducing power
Ka77r37dt63s4 hollow axle tilt gears - umbrella gear reduction power
Kv77r37dt63s4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh77r37dt63s4 empty axle locks slashing gears - umbrella gear reduction power
The kt77r37dt63s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz77r37dt63s4b14 installation of tilt gear - umbrella gear-reducing power
Kvz77r37dt63s4b14 installation of tilt gears - umbrella gear deviation engine
Khz77r37dt63s4b14 french axle axle locks fitted with tilt gears - umbrella gear reduction power

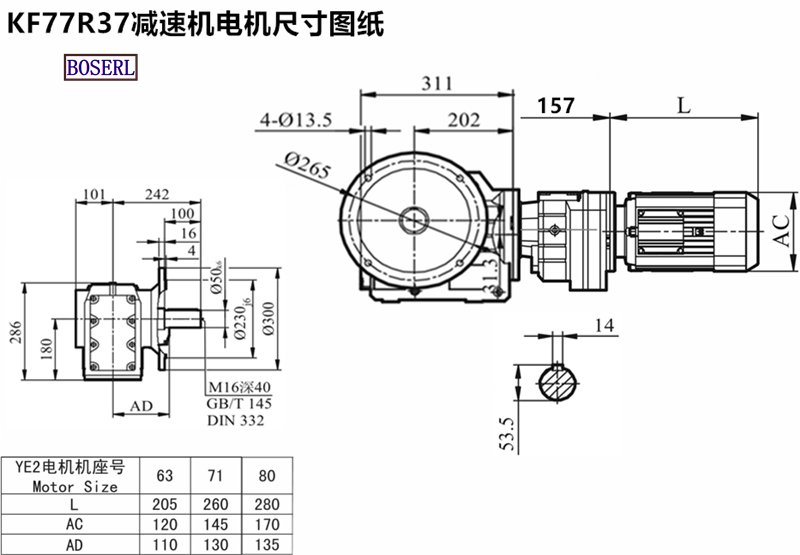

KF77R37DT63S4Induction Motor 3Ph motors installed size drawings
Kf77r37dt63s4 deviation power plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
