KF77R37DT71S4Detailed Information
Keyword: 0. 8 kw for an electrical umbrella gear-retarder _kf77r37dt71s4_kf77r37dre80k4
KF77R37DT71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DT71S4 | 1053 | 0.25KW | 1.20r/min | 1720N.m | 75.5kg | 14000N | 0.90 |
| KF77R37DT71S4 | 924 | 0.25KW | 1.40r/min | 1510N.m | 75.5kg | 15600N | 1.00 |
| KF77R37DT71S4 | 815 | 0.25KW | 1.60r/min | 1330N.m | 75.5kg | 16700N | 1.15 |
| KF77R37DT71S4 | 709 | 0.25KW | 1.80r/min | 1110N.m | 75.5kg | 17800N | 1.40 |
| KF77R37DT71S4 | 622 | 0.25KW | 2.10r/min | 970N.m | 75.5kg | 18400N | 1.60 |
| KF77R37DT71S4 | 552 | 0.25KW | 2.40r/min | 870N.m | 75.5kg | 18700N | 1.75 |
| KF77R37DT71S4 | 485 | 0.25KW | 2.70r/min | 765N.m | 75.5kg | 19100N | 2.00 |
| KF77R37DT71S4 | 428 | 0.25KW | 3.00r/min | 675N.m | 75.5kg | 19300N | 2.30 |
| KF77R37DT71S4 | 367 | 0.25KW | 3.50r/min | 590N.m | 75.5kg | 19500N | 2.60 |
| KF77R37DT71S4 | 328 | 0.25KW | 4.00r/min | 525N.m | 75.5kg | 19600N | 2.90 |
| KF77R37DT71S4 | 290 | 0.25KW | 4.50r/min | 465N.m | 75.5kg | 19700N | 3.30 |
| KF77R37DT71S4 | 252 | 0.25KW | 5.20r/min | 400N.m | 75.5kg | 19900N | 3.80 |
| KF77R37DT71S4 | 221 | 0.25KW | 5.90r/min | 350N.m | 75.5kg | 19900N | 4.40 |
| KF77R37DT71S4 | 195 | 0.25KW | 6.70r/min | 310N.m | 75.5kg | 20000N | 5.00 |
| KF77R37DT71S4 | 175 | 0.25KW | 7.40r/min | 270N.m | 75.5kg | 20000N | 5.60 |
Kf77r37dre80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF77R37DRE80K4 | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| KF77R37DRE80K4 | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| KF77R37DRE80K4 | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| KF77R37DRE80K4 | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| KF77R37DRE80K4 | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| KF77R37DRE80K4 | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| KF77R37DRE80K4 | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| KF77R37DRE80K4 | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| KF77R37DRE80K4 | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| KF77R37DRE80K4 | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
KF77R37DT71S4Speeding machine type:
K77r37dt71s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka77br37dt71s4 foot hollow axis with slash gears - umbrella gear-reducing power
The kv77br37dt71s4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh77br37dt71s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37dt71s4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37dt71s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37dt71s4b5francocardiograms installed with tilt gears - umbrella gear-reducing power
Khf77r37dt71s4b5 franium axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka77r37dt71s4 hollow axle tilt gears - umbrella gear reduction power
Kv77r37dt71s4 spaced axles with tilt gears - umbrella gear reduction power
Kh77r37dt71s4 empty axle locks slashing gears - umbrella gear reduction power
The kt77r37dt71s4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz77r37dt71s4b14 installation of tilt gear - umbrella gear reduction power
Kvz77r37dt71s4b14 flannel axles installed slashing gears - umbrella gear reduction power
Khz77r37dt71s4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

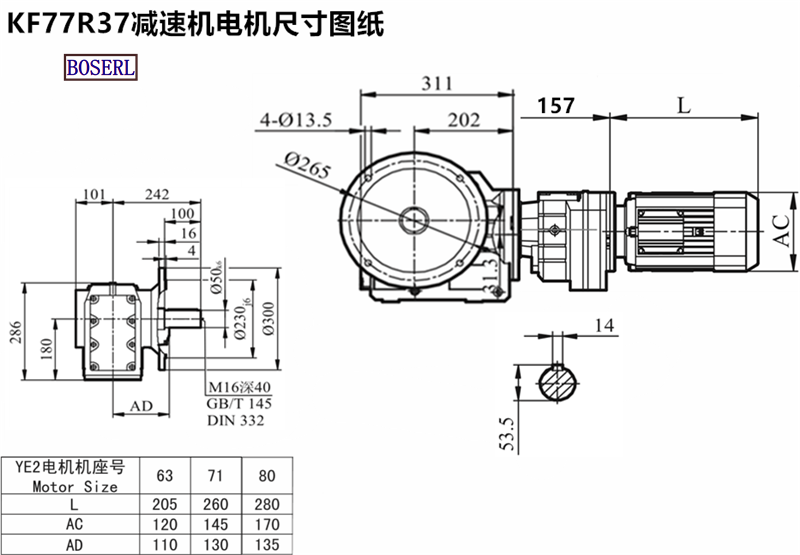

KF77R37DT71S4Induction Motor 3Ph motors installed size drawings
Kf77r37dt71s4 deviation power plant, three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 8kw for an electrical umbrella gear-reducing motor kf77r37dt71s4kkf77r37dre80k4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KF77R37DT71S4减速机样本 |
|
| KF77R37DT71S4减速机三维图纸 |
|
