0. 6 kw for electrical prop-pattern gear decelerator _kf97r57dm112m4

KF97R57DM112M4Detailed Information

prevnext

KF97R57DM112M4

TEL：Email:[email protected]

详细信息

Keyword: 0. 6 kw for the electric prop-pattern gear reduction machine_kf97r57dm112m4_kf97r57drrs63m4

KF97R57DM112M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF97R57DM112M4	199	4KW	7.30r/min	4880N.m	194kg	40000N	0.90

Kf97r57drrs63m4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF97R57DRS63M4	8054	0.12KW	0.17r/min	5460N.m	153.5kg	39400N	0.80
KF97R57DRS63M4	6970	0.12KW	0.20r/min	4420N.m	153.5kg	40000N	0.95
KF97R57DRS63M4	6027	0.12KW	0.23r/min	4000N.m	153.5kg	40000N	1.05
KF97R57DRS63M4	5391	0.12KW	0.26r/min	3650N.m	153.5kg	40000N	1.20
KF97R57DRS63M4	4669	0.12KW	0.30r/min	3020N.m	153.5kg	40000N	1.40
KF97R57DRS63M4	4082	0.12KW	0.34r/min	2730N.m	153.5kg	40000N	1.55
KF97R57DRS63M4	3583	0.12KW	0.39r/min	2370N.m	153.5kg	40000N	1.80
KF97R57DRS63M4	3108	0.12KW	0.44r/min	2090N.m	153.5kg	40000N	2.00
KF97R57DRS63M4	2757	0.12KW	0.50r/min	1770N.m	153.5kg	40000N	2.40
KF97R57DRS63M4	2419	0.12KW	0.57r/min	1650N.m	153.5kg	40000N	2.60
KF97R57DRS63M4	2123	0.12KW	0.65r/min	1420N.m	153.5kg	40000N	3.00
KF97R57DRS63M4	1856	0.12KW	0.74r/min	1270N.m	153.5kg	40000N	3.40
KF97R57DRS63M4	1625	0.12KW	0.85r/min	1040N.m	153.5kg	40000N	4.10
KF97R57DRS63M4	1430	0.12KW	0.96r/min	890N.m	153.5kg	40000N	4.80
KF97R57DRS63M4	1261	0.12KW	1.10r/min	860N.m	153.5kg	40000N	5.00
KF97R57DRS63M4	1102	0.12KW	1.20r/min	755N.m	153.5kg	40000N	5.70

KF97R57DM112M4Speeding machine type:

K97r57dm112m4 bottom foot is fitted with tilt gears - umbrella gear reduction power

Ka97r57dm112m4 foot hollow axis fitted with tilt gears - umbrella gear-reducing power

Kv97br57dm112m4 foot larvae axis installed with tilt gears - umbrella gear reduction power

Kh97br57dm112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf97r57dm112m4b5 is equipped with tilt gears - an umbrella gear decelerator

Kaf97r57dm112m4b5 french aerocentric axis with tilt gears - umbrella gear-reducing power

Kvf97r57dm112m4b5-franco cardiac axe installation of tilt gears - umbrella gear deviation engine

Khf97r57dm112m4b5 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

Ka97r57dm112m4 hollow axle tilt gears - an umbrella gear decelerator power

Kv97r57dm112m4 space cores equipped with tilt gears - umbrella gear reduction power

Kh97r57dm112m4 empty axle locks the wheel slashing gears - an umbrella gear decelerator

Kt97r57dm112m4 sky axis installation of tilt gear - umbrella gear deviation engine

Kaz97r57dm112m4b14 french aerocentric axis with tilt gears - umbrella gear reduction power

Kvz97r57dm112m4b14 flannel axles installed with tilt gears - umbrella gear-reducing power

Khz97r57dm112m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

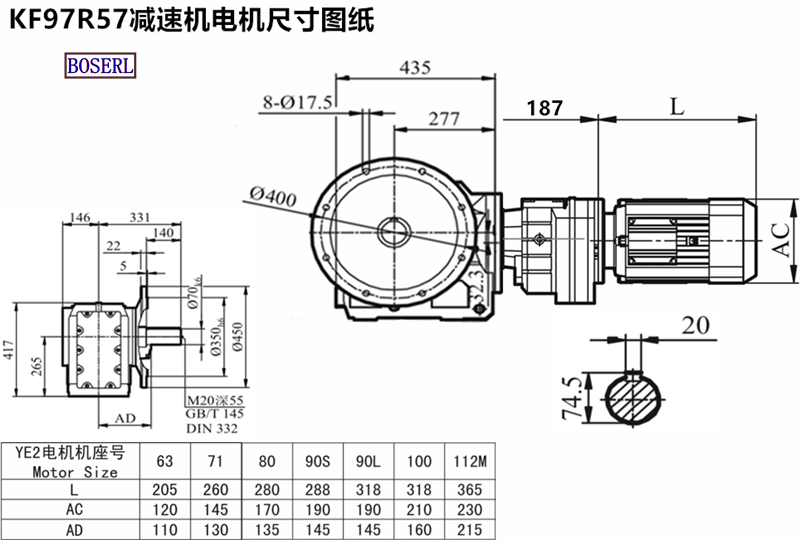

KF97R57DM112M4Induction Motor 3Ph motors installed size drawings

Kf97r57dm112m4reducing power plantMicro move motor

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: 0. 6kw for electric propeller-pattern gear-retarder kf97r57dm112m4 kf97r57drrs63m4

上一条KF97R57DM100M4
下一条KF97R57DT112M4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
KF97R57DM112M4减速机样本
KF97R57DM112M4减速机三维图纸
