KF97R57DT112M4Detailed Information
Keyword: 0. 5 kw for electron turp-pattern gear-retarder_kf97r57dt112m4_kf97r57dre80m4
KF97R57DT112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF97R57DT112M4 | 199 | 4KW | 7.30r/min | 4880N.m | 194kg | 40000N | 0.90 |
Kf97r57dre80m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF97R57DRE80M4 | 1102 | 0.75KW | 1.30r/min | 5030N.m | 164kg | 39900N | 0.85 |
| KF97R57DRE80M4 | 957 | 0.75KW | 1.50r/min | 4410N.m | 164kg | 40000N | 0.95 |
| KF97R57DRE80M4 | 855 | 0.75KW | 1.70r/min | 3940N.m | 164kg | 40000N | 1.10 |
| KF97R57DRE80M4 | 573 | 0.75KW | 2.50r/min | 2620N.m | 164kg | 40000N | 1.65 |
| KF97R57DRE80M4 | 743 | 0.75KW | 1.90r/min | 3320N.m | 164kg | 40000N | 1.30 |
| KF97R57DRE80M4 | 652 | 0.75KW | 2.20r/min | 2930N.m | 164kg | 40000N | 1.45 |
| KF97R57DRE80M4 | 504 | 0.75KW | 2.80r/min | 2250N.m | 164kg | 40000N | 1.90 |
| KF97R57DRE80M4 | 437 | 0.75KW | 3.30r/min | 1940N.m | 164kg | 40000N | 2.20 |
| KF97R57DRE80M4 | 382 | 0.75KW | 3.80r/min | 1720N.m | 164kg | 40000N | 2.50 |
| KF97R57DRE80M4 | 305 | 0.75KW | 4.70r/min | 1390N.m | 164kg | 40000N | 3.10 |
| KF97R57DRE80M4 | 258 | 0.75KW | 5.60r/min | 1170N.m | 164kg | 40000N | 3.70 |
| KF97R57DRE80M4 | 232 | 0.75KW | 6.20r/min | 1050N.m | 164kg | 40000N | 4.10 |
| KF97R57DRE80M4 | 199 | 0.75KW | 7.20r/min | 890N.m | 164kg | 40000N | 4.80 |
KF97R57DT112M4Speeding machine type:
K97r57dt112m4 bottom foot with tilt gear - umbrella gear deviation engine
Ka97r57dt112m4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv97br57dt112m4 foot larvae axis installed with slash gears - umbrella gear reduction power
Kh97br57dt112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf97r57dt112m4b5 installation of tilt gears - umbrella gear reduction power
Kaf97r57dt112m4b5farland air cardiac axe installation of tilt gear - umbrella gear deviation engine
Kvf97r57dt112m4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf97r57dt112m4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka97r57dt112m4 hollow axle tilt gears - an umbrella gear decelerator
Kv97r57dt112m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh97r57dt112m4 sky axes locked tilt gear - umbrella gear deviation engine
Kt97r57dt112m4 sky axis installation of tilt gear - umbrella gear deviation engine
Kaz97r57dt112m4b14 french aerocentric axles equipped with tilt gears - umbrella gear reduction power
Kvz97r57dt112m4b14 installing cardiac axle gears - umbrella gear reduction power
Khz97r57dt112m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

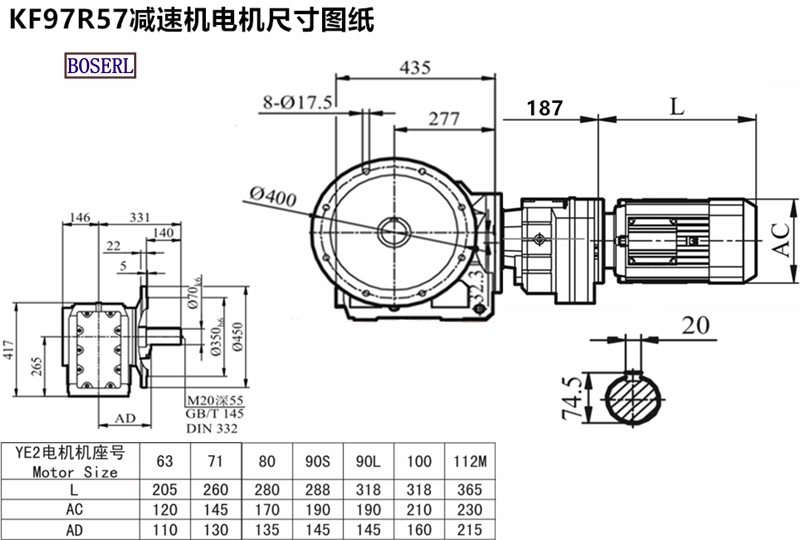

KF97R57DT112M4Induction Motor 3Ph motors installed size drawings
Kf97r57dt112m4 deviation electric power plant. please make an appointment three days in advanceMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
