KF97R57DV63MS4Detailed Information

prevnext

KF97R57DV63MS4

TEL：Email:[email protected]

详细信息

Keyword: 0. 8 kw for electron prop-pattern gear reduction

KF97R57DV63MS4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF97R57DV63MS4	8054	0.12KW	0.17r/min	5460N.m	153.5kg	39400N	0.80
KF97R57DV63MS4	6970	0.12KW	0.20r/min	4420N.m	153.5kg	40000N	0.95
KF97R57DV63MS4	6027	0.12KW	0.23r/min	4000N.m	153.5kg	40000N	1.05
KF97R57DV63MS4	5391	0.12KW	0.26r/min	3650N.m	153.5kg	40000N	1.20
KF97R57DV63MS4	4669	0.12KW	0.30r/min	3020N.m	153.5kg	40000N	1.40
KF97R57DV63MS4	4082	0.12KW	0.34r/min	2730N.m	153.5kg	40000N	1.55
KF97R57DV63MS4	3583	0.12KW	0.39r/min	2370N.m	153.5kg	40000N	1.80
KF97R57DV63MS4	3108	0.12KW	0.44r/min	2090N.m	153.5kg	40000N	2.00
KF97R57DV63MS4	2757	0.12KW	0.50r/min	1770N.m	153.5kg	40000N	2.40
KF97R57DV63MS4	2419	0.12KW	0.57r/min	1650N.m	153.5kg	40000N	2.60
KF97R57DV63MS4	2123	0.12KW	0.65r/min	1420N.m	153.5kg	40000N	3.00
KF97R57DV63MS4	1856	0.12KW	0.74r/min	1270N.m	153.5kg	40000N	3.40
KF97R57DV63MS4	1625	0.12KW	0.85r/min	1040N.m	153.5kg	40000N	4.10
KF97R57DV63MS4	1430	0.12KW	0.96r/min	890N.m	153.5kg	40000N	4.80
KF97R57DV63MS4	1261	0.12KW	1.10r/min	860N.m	153.5kg	40000N	5.00
KF97R57DV63MS4	1102	0.12KW	1.20r/min	755N.m	153.5kg	40000N	5.70

Kf97r57drn80k4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KF97R57DRN80K4	1430	0.55KW	0.96r/min	4860N.m	163kg	40000N	0.90
KF97R57DRN80K4	1261	0.55KW	1.10r/min	4360N.m	163kg	40000N	1.00
KF97R57DRN80K4	1102	0.55KW	1.20r/min	3810N.m	163kg	40000N	1.15
KF97R57DRN80K4	957	0.55KW	1.40r/min	3340N.m	163kg	40000N	1.30
KF97R57DRN80K4	855	0.55KW	1.60r/min	2990N.m	163kg	40000N	1.45
KF97R57DRN80K4	573	0.55KW	2.40r/min	1980N.m	163kg	40000N	2.20
KF97R57DRN80K4	743	0.55KW	1.90r/min	2500N.m	163kg	40000N	1.70
KF97R57DRN80K4	652	0.55KW	2.10r/min	2210N.m	163kg	40000N	1.95
KF97R57DRN80K4	504	0.55KW	2.70r/min	1690N.m	163kg	40000N	2.50
KF97R57DRN80K4	437	0.55KW	3.20r/min	1450N.m	163kg	40000N	3.00
KF97R57DRN80K4	382	0.55KW	3.60r/min	1300N.m	163kg	40000N	3.30
KF97R57DRN80K4	305	0.55KW	4.50r/min	1040N.m	163kg	40000N	4.10

KF97R57DV63MS4Speeding machine type:

K97r57dv63ms4 bottom foot is fitted with tilt gears - umbrella gear reduction power

Ka97r57dv63ms4 foot hollow axis with tilt gears - umbrella gear reduction power

The kv97br57dv63ms4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power

Kh97br57dv63ms4-federation axes locked--Right-angle shaft reducer motor

Frf97r57dv63ms4b5 installation of tilt gear - umbrella gear reduction power

Kaf97r57dv63ms4b5farland axis installation of tilt gears - umbrella gear reduction power

Installation of tilt gears - umbrella gear-reducing power units on the frfv97r57dv63ms4b5

Khf97r57dv63ms4b5farland axle locks fitted with tilt gears - an umbrella gear-reducing power plant

Ka97r57dv63ms4 hollow axial tilt gear - umbrella gear reduction power

Kv97r57dv63ms4 spaced axles with tilt gears - an umbrella gear decelerator

Kh97r57dv63ms4 sky axes locked tilt tilt gear - umbrella gear deviation engine

Kt97r57dv63ms4 hole gears - umbrella gear reduction power

Kaz97r57dv63ms4b14 installation of tilt gear - umbrella gear reduction power

Kvz97r57dv63ms4b14 installation of tilt gear - umbrella gear-reducing power

Khz97r57dv63ms4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

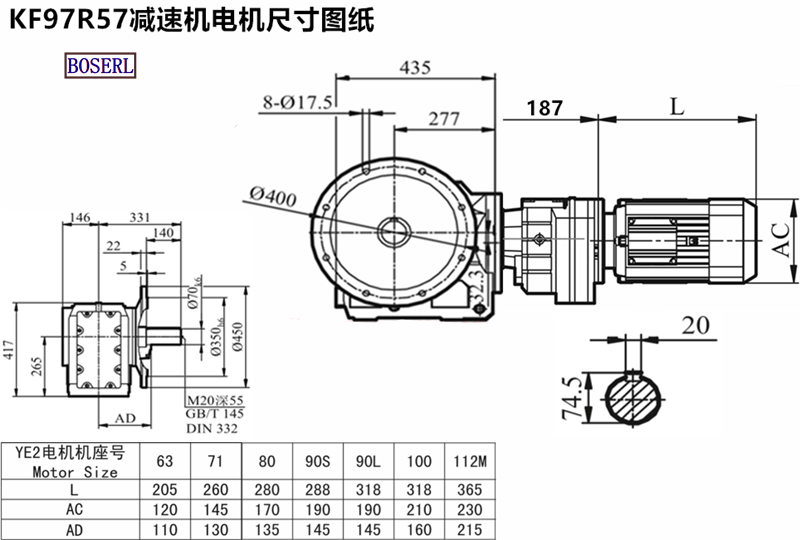

KF97R57DV63MS4Induction Motor 3Ph motors installed size drawings

Kf97r57dv63ms4 deviation power plant, three days' advance appointmentMicro move motor

Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor

KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox

KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
