KF97RF57-Y0.55KWDetailed Information
Keyword: 0. 32 kw to service the electron prop-pattern gear brakes_kf97rf57-y0. 55kw_kf97rf57-y90m4
KF97RF57-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF97RF57-Y0.55KW | 1430 | 0.55KW | 0.96r/min | 4860N.m | 163kg | 40000N | 0.90 |
| KF97RF57-Y0.55KW | 1261 | 0.55KW | 1.10r/min | 4360N.m | 163kg | 40000N | 1.00 |
| KF97RF57-Y0.55KW | 1102 | 0.55KW | 1.20r/min | 3810N.m | 163kg | 40000N | 1.15 |
| KF97RF57-Y0.55KW | 957 | 0.55KW | 1.40r/min | 3340N.m | 163kg | 40000N | 1.30 |
| KF97RF57-Y0.55KW | 855 | 0.55KW | 1.60r/min | 2990N.m | 163kg | 40000N | 1.45 |
| KF97RF57-Y0.55KW | 573 | 0.55KW | 2.40r/min | 1980N.m | 163kg | 40000N | 2.20 |
| KF97RF57-Y0.55KW | 743 | 0.55KW | 1.90r/min | 2500N.m | 163kg | 40000N | 1.70 |
| KF97RF57-Y0.55KW | 652 | 0.55KW | 2.10r/min | 2210N.m | 163kg | 40000N | 1.95 |
| KF97RF57-Y0.55KW | 504 | 0.55KW | 2.70r/min | 1690N.m | 163kg | 40000N | 2.50 |
| KF97RF57-Y0.55KW | 437 | 0.55KW | 3.20r/min | 1450N.m | 163kg | 40000N | 3.00 |
| KF97RF57-Y0.55KW | 382 | 0.55KW | 3.60r/min | 1300N.m | 163kg | 40000N | 3.30 |
| KF97RF57-Y0.55KW | 305 | 0.55KW | 4.50r/min | 1040N.m | 163kg | 40000N | 4.10 |
Kf97rf57-y90m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KF97RF57-Y90M4 | 573 | 1.5KW | 2.50r/min | 5340N.m | 171kg | 39500N | 0.80 |
| KF97RF57-Y90M4 | 504 | 1.5KW | 2.80r/min | 4610N.m | 171kg | 40000N | 0.95 |
| KF97RF57-Y90M4 | 437 | 1.5KW | 3.30r/min | 3980N.m | 171kg | 40000N | 1.10 |
| KF97RF57-Y90M4 | 382 | 1.5KW | 3.70r/min | 3510N.m | 171kg | 40000N | 1.20 |
| KF97RF57-Y90M4 | 342 | 1.5KW | 4.20r/min | 3110N.m | 171kg | 40000N | 1.40 |
| KF97RF57-Y90M4 | 305 | 1.5KW | 4.70r/min | 2830N.m | 171kg | 40000N | 1.50 |
| KF97RF57-Y90M4 | 258 | 1.5KW | 5.60r/min | 2390N.m | 171kg | 40000N | 1.80 |
| KF97RF57-Y90M4 | 232 | 1.5KW | 6.20r/min | 2150N.m | 171kg | 40000N | 2.00 |
| KF97RF57-Y90M4 | 199 | 1.5KW | 7.20r/min | 1840N.m | 171kg | 40000N | 2.30 |
KF97RF57-Y0.55KWSpeeding machine type:
K97rf57-y0. 55 kw bottom foot installation of tilt gears - umbrella gear deviation engine
Ka97rf57-y0. 55kw bottom foot hollow axis fitted with tilt gear - umbrella gear reduction power
Kv97brf57-y0. 55kw bottom foot flow axis installation of tilt gear - umbrella gear deviation power
Kh97brf57-y0. 55kw foot hollow axle locks installed with tilt gears -Right-angle shaft reducer motor
Frf97rf57-y0. 55 kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf97rf57-y0. 55 kwb5 installation of tilt gears - umbrella gear reduction power
Frf97rf57-y0. 55kwb5 installation of tilt gear - umbrella gear-reducing power
Khf97rf57-y0. 55 kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka97rf57-y0. 55kw hollow axle tilt gears - umbrella gear reduction power
Kv97rf57-y0. 55kw spaced axle installation of tilt gears - umbrella gear reduction power
Kh97rf57-y0. 55kw sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt97rf57-y0. 55kw hollow cores - umbrella gear-reducing power
Kaz97rf57-y0. 55 kwb14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flavour axles of the flavour z97rf57-y0. 55 kwb14
Dhz97rf57-y0. 55 kwb14 franium axle locks fitted with tilt gears - umbrella gear reduction power

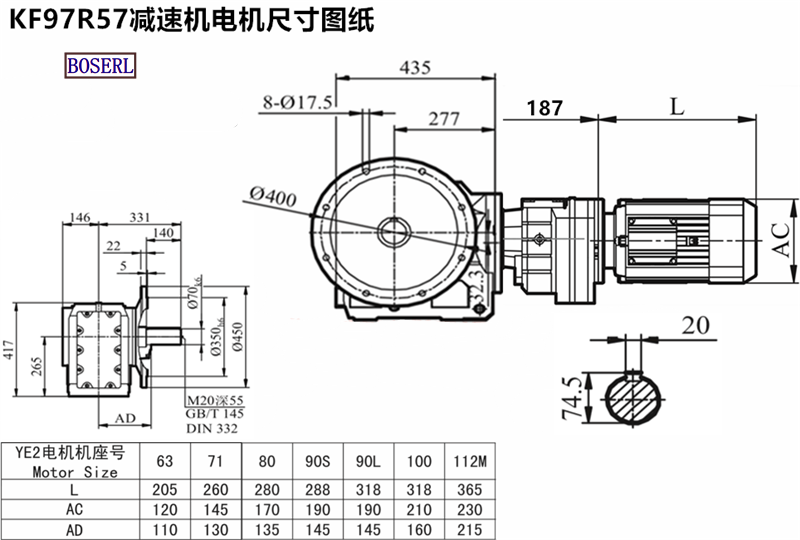

KF97RF57-Y0.55KWInduction Motor 3Ph motors installed size drawings
Kf97rf57-y0. 55kw power-reducing plantMicro move motor
Micro move motor,Gearboc coal feeder,Motor with gearbox assembly Geared motor
KF37 Reducer, KF47 Reducer, KF57 Reducer, KF67 Reducer, KF77 Reducer, KF87 Reducer, KF97 Gear Reducer, KF107 Gear Reducer, KF127 Gear Reducer, KF157 Gear Reducer, KF167 Gear Reducer, KF187 Gear Reducer Helical bewel gearbox
KF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
