R137DT132M4Detailed Information
Keyword:down 1:69 _r137dt132m4 _r137drs132m4 _reducing _69 _69 _69:reducing _1:69
R137DT132M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R137DT132M4 | 188.45 | 7.5kw | 7.7rpm | 9340N.m | 300kg | 43800N | 0.85 |
| R137DT132M4 | 174.4 | 7.5kw | 8.3rpm | 8640N.m | 300kg | 51200N | 0.95 |
| R137DT132M4 | 156.31 | 7.5kw | 9.2rpm | 7740N.m | 300kg | 53900N | 1.05 |
| R137DT132M4 | 141.12 | 7.5kw | 10rpm | 6990N.m | 300kg | 55400N | 1.15 |
| R137DT132M4 | 128.18 | 7.5kw | 11rpm | 6350N.m | 300kg | 56500N | 1.25 |
| R137DT132M4 | 113.72 | 7.5kw | 13rpm | 5630N.m | 300kg | 57600N | 1.4 |
| R137DT132M4 | 103.2 | 7.5kw | 14rpm | 5110N.m | 300kg | 58300N | 1.55 |
| R137DT132M4 | 88.7 | 7.5kw | 16rpm | 4390N.m | 300kg | 59100N | 1.8 |
| R137DT132M4 | 80.91 | 7.5kw | 18rpm | 4010N.m | 300kg | 59500N | 2 |
| R137DT132M4 | 73.49 | 7.5kw | 20rpm | 3640N.m | 300kg | 59800N | 2.2 |
| R137DT132M4 | 65.2 | 7.5kw | 22rpm | 3230N.m | 300kg | 60200N | 2.5 |
| R137DT132M4 | 59.17 | 7.5kw | 24rpm | 2930N.m | 300kg | 60400N | 2.7 |
| R137DT132M4 | 50.86 | 7.5kw | 28rpm | 2520N.m | 300kg | 60700N | 3.2 |
R137DRS132M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R137DRS132M4 | 188.45 | 7.5kw | 7.7rpm | 9340N.m | 300kg | 43800N | 0.85 |
| R137DRS132M4 | 174.4 | 7.5kw | 8.3rpm | 8640N.m | 300kg | 51200N | 0.95 |
| R137DRS132M4 | 156.31 | 7.5kw | 9.2rpm | 7740N.m | 300kg | 53900N | 1.05 |
| R137DRS132M4 | 141.12 | 7.5kw | 10rpm | 6990N.m | 300kg | 55400N | 1.15 |
| R137DRS132M4 | 128.18 | 7.5kw | 11rpm | 6350N.m | 300kg | 56500N | 1.25 |
| R137DRS132M4 | 113.72 | 7.5kw | 13rpm | 5630N.m | 300kg | 57600N | 1.4 |
| R137DRS132M4 | 103.2 | 7.5kw | 14rpm | 5110N.m | 300kg | 58300N | 1.55 |
| R137DRS132M4 | 88.7 | 7.5kw | 16rpm | 4390N.m | 300kg | 59100N | 1.8 |
| R137DRS132M4 | 80.91 | 7.5kw | 18rpm | 4010N.m | 300kg | 59500N | 2 |
| R137DRS132M4 | 73.49 | 7.5kw | 20rpm | 3640N.m | 300kg | 59800N | 2.2 |
| R137DRS132M4 | 65.2 | 7.5kw | 22rpm | 3230N.m | 300kg | 60200N | 2.5 |
| R137DRS132M4 | 59.17 | 7.5kw | 24rpm | 2930N.m | 300kg | 60400N | 2.7 |
| R137DRS132M4 | 50.86 | 7.5kw | 28rpm | 2520N.m | 300kg | 60700N | 3.2 |
R137DT132M4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

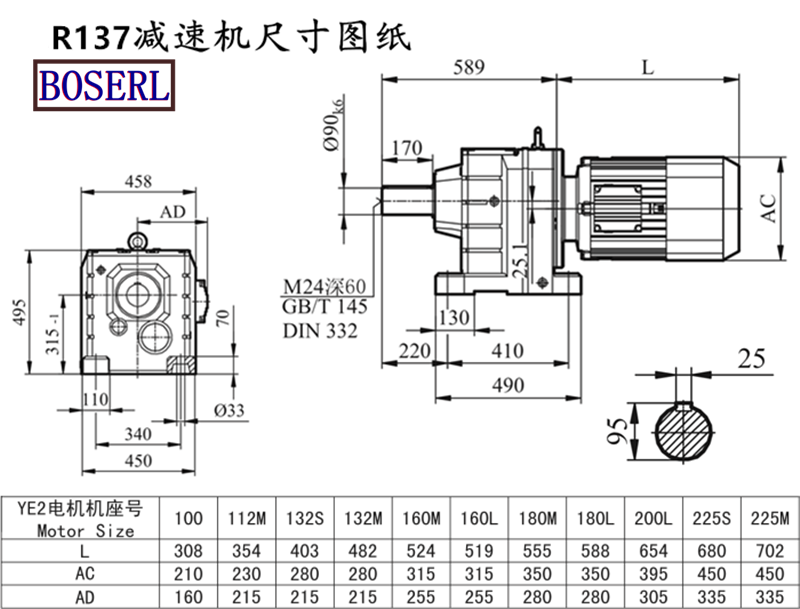

R137DT132M4Induction Motor 3Ph motors installed size drawings
R137DT132M4At thereducing plant: three days in advance
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
