R137R77DVE112M4Detailed Information
Keywords: how to fit 4kw power with an oscillated gear-reducing power _R137R77DVE112M4_R137R77DRE80M4
R137R77DVE112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R137R77DVE112M4 | 381 | 4KW | 3.80r/min | 9300N.m | 302kg | 44400N | 0.85 |
| R137R77DVE112M4 | 323 | 4KW | 4.50r/min | 7890N.m | 302kg | 53600N | 1.00 |
| R137R77DVE112M4 | 291 | 4KW | 5.00r/min | 7100N.m | 302kg | 55200N | 1.15 |
| R137R77DVE112M4 | 255 | 4KW | 5.70r/min | 6210N.m | 302kg | 56700N | 1.30 |
| R137R77DVE112M4 | 223 | 4KW | 6.50r/min | 5440N.m | 302kg | 57800N | 1.45 |
| R137R77DVE112M4 | 376 | 4KW | 3.90r/min | 9290N.m | 302kg | 44600N | 0.85 |
| R137R77DVE112M4 | 339 | 4KW | 4.30r/min | 8360N.m | 302kg | 52400N | 0.95 |
| R137R77DVE112M4 | 297 | 4KW | 4.90r/min | 7320N.m | 302kg | 54800N | 1.10 |
R137R77DRE80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R137R77DRE80M4 | 1863 | 0.75KW | 0.77r/min | 8370N.m | 272kg | 52400N | 0.95 |
| R137R77DRE80M4 | 1586 | 0.75KW | 0.90r/min | 7090N.m | 272kg | 55200N | 1.15 |
| R137R77DRE80M4 | 1391 | 0.75KW | 1.00r/min | 6320N.m | 272kg | 56500N | 1.25 |
| R137R77DRE80M4 | 1256 | 0.75KW | 1.10r/min | 5680N.m | 272kg | 57500N | 1.40 |
| R137R77DRE80M4 | 2073 | 0.75KW | 0.69r/min | 9410N.m | 272kg | 42400N | 0.85 |
| R137R77DRE80M4 | 1839 | 0.75KW | 0.78r/min | 8260N.m | 272kg | 52800N | 0.95 |
| R137R77DRE80M4 | 1598 | 0.75KW | 0.90r/min | 7110N.m | 272kg | 55200N | 1.10 |
| R137R77DRE80M4 | 1397 | 0.75KW | 1.00r/min | 6320N.m | 272kg | 56500N | 1.25 |
| R137R77DRE80M4 | 1226 | 0.75KW | 1.20r/min | 5520N.m | 272kg | 57700N | 1.45 |
| R137R77DRE80M4 | 1090 | 0.75KW | 1.30r/min | 4930N.m | 272kg | 58500N | 1.60 |
| R137R77DRE80M4 | 951 | 0.75KW | 1.50r/min | 4300N.m | 272kg | 59200N | 1.85 |
| R137R77DRE80M4 | 831 | 0.75KW | 1.70r/min | 3700N.m | 272kg | 59800N | 2.20 |
| R137R77DRE80M4 | 730 | 0.75KW | 2.00r/min | 3220N.m | 272kg | 60200N | 2.50 |
R137R77DVE112M4Speeding machine type:
Rx137r77dve112m4 single-step foot installation of tilt gear-reducing power
Rxf137r77dve112m4 single b5franeMotor geared reducer
R137r77dve112m4 bottom foot installation of tilt gear-reducing electric power
R137fr77dve112m4 bottom foot, b5fl installation of tilt gear reduction power
Rf137r77dve112m4b5 installation of tilt gear reduction power
Rz137r77dve112m4b14 installation of tilt gear-reducing electric power

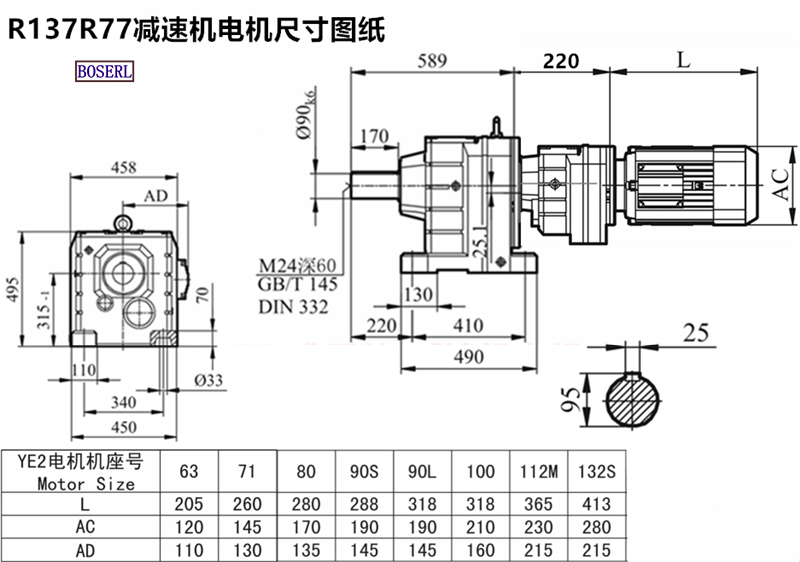

R137R77DVE112M4Induction Motor 3Ph motors installed size drawings
R137r77dve112m4 deviation power plant, three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
