R147R77DR71MS4Detailed Information
Keywords: how to fit 15kw power with a slasher gear brake_r147r77dr71ms4_r147r77dre100lc4
R147R77DR71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R147R77DR71MS4 | 9743 | 0.25KW | 0.13r/min | 15100N.m | 446kg | 48200N | 0.85 |
| R147R77DR71MS4 | 8443 | 0.25KW | 0.15r/min | 12700N.m | 446kg | 63100N | 1.00 |
| R147R77DR71MS4 | 7307 | 0.25KW | 0.18r/min | 11000N.m | 446kg | 66200N | 1.20 |
| R147R77DR71MS4 | 6447 | 0.25KW | 0.20r/min | 9740N.m | 446kg | 68100N | 1.35 |
| R147R77DR71MS4 | 5568 | 0.25KW | 0.23r/min | 8410N.m | 446kg | 69800N | 1.55 |
| R147R77DR71MS4 | 4926 | 0.25KW | 0.26r/min | 7590N.m | 446kg | 70700N | 1.70 |
| R147R77DR71MS4 | 4325 | 0.25KW | 0.30r/min | 6570N.m | 446kg | 71700N | 2.00 |
| R147R77DR71MS4 | 3754 | 0.25KW | 0.35r/min | 5790N.m | 446kg | 72400N | 2.20 |
| R147R77DR71MS4 | 3302 | 0.25KW | 0.39r/min | 5020N.m | 446kg | 72900N | 2.60 |
| R147R77DR71MS4 | 2898 | 0.25KW | 0.45r/min | 4370N.m | 446kg | 73300N | 3.00 |
R147R77DRE100LC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R147R77DRE100LC4 | 889 | 3KW | 1.60r/min | 16200N.m | 471kg | 33100N | 0.80 |
| R147R77DRE100LC4 | 784 | 3KW | 1.90r/min | 14200N.m | 471kg | 58800N | 0.90 |
| R147R77DRE100LC4 | 695 | 3KW | 2.10r/min | 12600N.m | 471kg | 63300N | 1.05 |
| R147R77DRE100LC4 | 619 | 3KW | 2.40r/min | 11300N.m | 471kg | 65700N | 1.15 |
| R147R77DRE100LC4 | 558 | 3KW | 2.60r/min | 10200N.m | 471kg | 67500N | 1.25 |
R147R77DR71MS4Speeding machine type:
Rx147r77dr71ms4 single foot installation of tilt gearreducing power
Rxf147r77dr71ms4 single b5Motor geared reducer
R147r77dr71ms4 bottom foot installation of tilt gear-reducing electric power
R147 fr77dr71ms4 bottom foot, b5 flang installation of tilt gear reduction power
Rf147r77dr71ms4b5 franc installation of tilt gear reduction power
Rz147r77dr71ms4b14 plain installation of tilt gear-reducing power

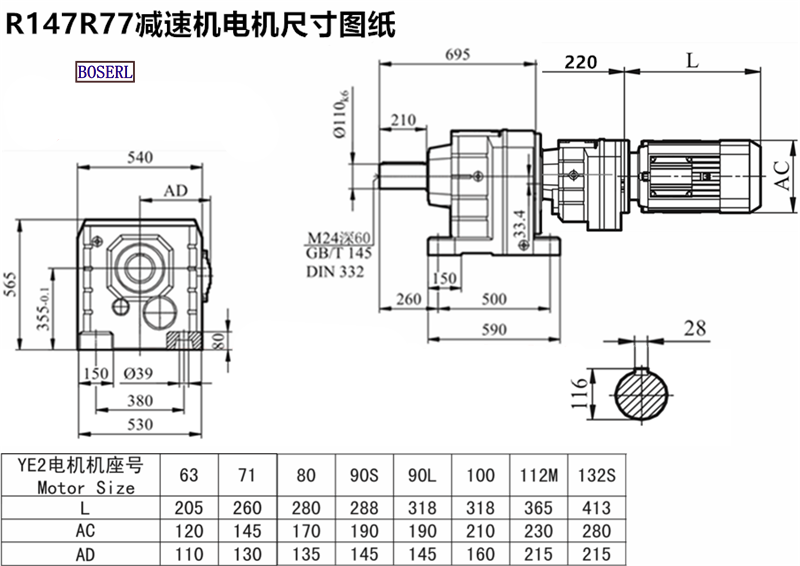

R147R77DR71MS4Induction Motor 3Ph motors installed size drawings
R147r77dr71ms4 power-reducing plant, three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: How 15kw power is fitted with an oscillated gear reduction engine r147r77dr71ms4 r147r77dr100lc4
- 上一条R147R77DRE71M4
- 下一条R147R77DR71D4
