R167DR280M4Detailed Information
Keyword: output turn 242. 5 laps/minute reduction motor _r167dr280m4_r167dve280m4_output turn 242. 5 laps/minutes of reduction motor s 242. 5 laps/minutes of gear reduction
R167DR280M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167DR280M4 | 39.92 | 90kw | 37rpm | 23100N.m | 1190kg | 120000N | 0.8 |
| R167DR280M4 | 34.41 | 90kw | 43rpm | 19900N.m | 1190kg | 120000N | 0.9 |
| R167DR280M4 | 27.96 | 90kw | 53rpm | 16200N.m | 1190kg | 120000N | 1.1 |
| R167DR280M4 | 23.71 | 90kw | 62rpm | 13700N.m | 1190kg | 120000N | 1.3 |
| R167DR280M4 | 19.03 | 90kw | 78rpm | 11000N.m | 1190kg | 120000N | 1.45 |
| R167DR280M4 | 16.98 | 90kw | 87rpm | 9860N.m | 1190kg | 120000N | 1.5 |
| R167DR280M4 | 14.48 | 90kw | 102rpm | 8400N.m | 1190kg | 117300N | 2.1 |
| R167DR280M4 | 11.99 | 90kw | 123rpm | 6960N.m | 1190kg | 113500N | 2.4 |
| R167DR280M4 | 10.24 | 90kw | 145rpm | 5940N.m | 1190kg | 110100N | 2.9 |
R167DVE280M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167DVE280M4 | 39.92 | 90kw | 37rpm | 23100N.m | 1190kg | 120000N | 0.8 |
| R167DVE280M4 | 34.41 | 90kw | 43rpm | 19900N.m | 1190kg | 120000N | 0.9 |
| R167DVE280M4 | 27.96 | 90kw | 53rpm | 16200N.m | 1190kg | 120000N | 1.1 |
| R167DVE280M4 | 23.71 | 90kw | 62rpm | 13700N.m | 1190kg | 120000N | 1.3 |
| R167DVE280M4 | 19.03 | 90kw | 78rpm | 11000N.m | 1190kg | 120000N | 1.45 |
| R167DVE280M4 | 16.98 | 90kw | 87rpm | 9860N.m | 1190kg | 120000N | 1.5 |
| R167DVE280M4 | 14.48 | 90kw | 102rpm | 8400N.m | 1190kg | 117300N | 2.1 |
| R167DVE280M4 | 11.99 | 90kw | 123rpm | 6960N.m | 1190kg | 113500N | 2.4 |
| R167DVE280M4 | 10.24 | 90kw | 145rpm | 5940N.m | 1190kg | 110100N | 2.9 |
R167dr280m4reducing machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

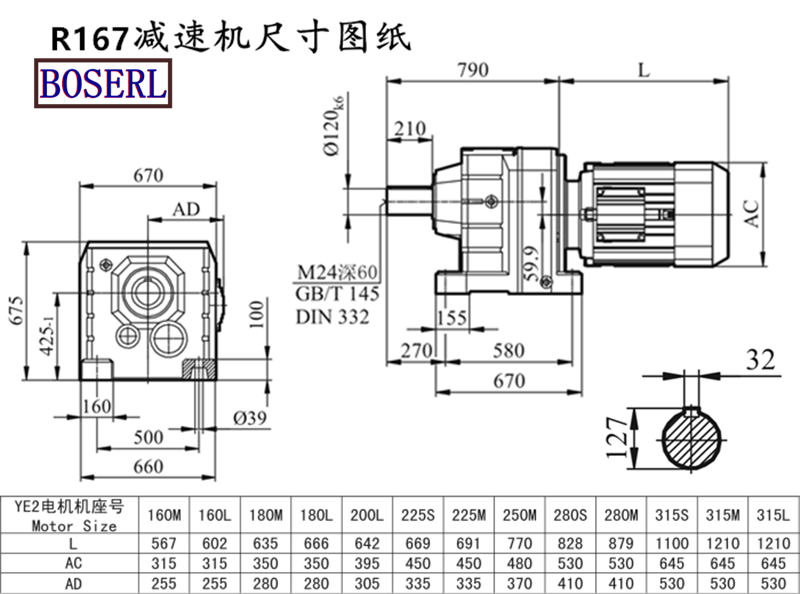

R167DR280M4Induction Motor 3Ph motors installed size drawings
R167DR280M4At thereducing plant: three days in advance
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
