R167R107DM160S4Detailed Information
Keyword: how does a 45kw power fit a plattered slasher? r167r107dm160s4_r167r107drrs160l4
R167R107DM160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R107DM160S4 | 295 | 11KW | 5.00r/min | 19100N.m | 968kg | 120000N | 0.95 |
| R167R107DM160S4 | 270 | 11KW | 5.50r/min | 17700N.m | 968kg | 120000N | 1.00 |
| R167R107DM160S4 | 229 | 11KW | 6.40r/min | 15000N.m | 968kg | 120000N | 1.20 |
| R167R107DM160S4 | 200 | 11KW | 7.40r/min | 13000N.m | 968kg | 120000N | 1.40 |
| R167R107DM160S4 | 169 | 11KW | 8.70r/min | 10900N.m | 968kg | 120000N | 1.65 |
| R167R107DM160S4 | 291 | 11KW | 5.10r/min | 19400N.m | 968kg | 120000N | 0.90 |
R167R107DRS160L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R107DRS160L4 | 229 | 15KW | 6.40r/min | 20700N.m | 988kg | 120000N | 0.85 |
| R167R107DRS160L4 | 200 | 15KW | 7.30r/min | 18000N.m | 988kg | 120000N | 1.00 |
| R167R107DRS160L4 | 169 | 15KW | 8.60r/min | 15200N.m | 988kg | 120000N | 1.20 |
| R167R107DRS160L4 | 227 | 15KW | 6.50r/min | 20800N.m | 988kg | 120000N | 0.85 |
| R167R107DRS160L4 | 198 | 15KW | 7.40r/min | 18100N.m | 988kg | 120000N | 1.00 |

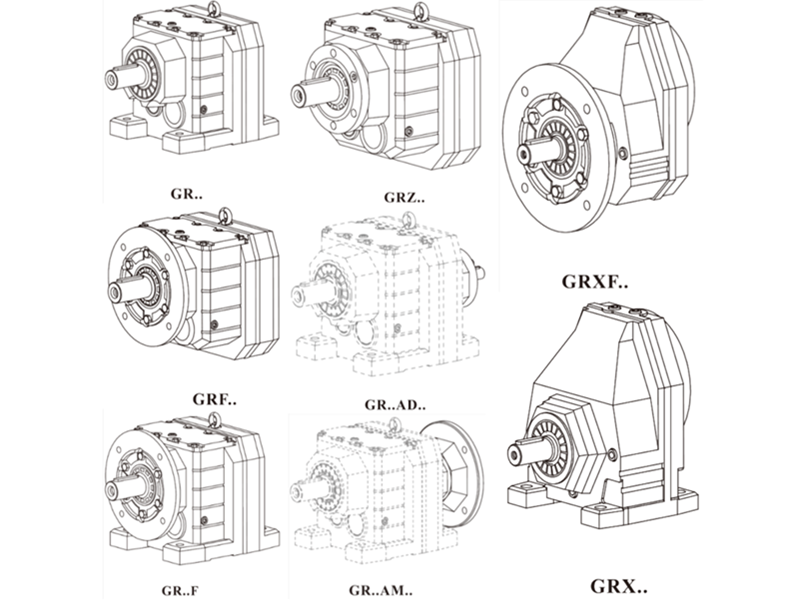

R167R107DM160S4Speeding machine type:
Rx167r107dm160s4 sole foot installation of tilt gear-reducing electric power
Rxf167r107dm160s4 single-class b5 franMotor geared reducer
R167r107dm160s4 bottom foot installation of tilt gear-reducing electric power
R167fr107dm160s4 foot, b5 flang installation of tilt gearreducing power
Rf167r107dm160s4b5 installation of tilt gear reduction power
Rz167r107dm160s4b14 installation of tilt gear-reducing electric power

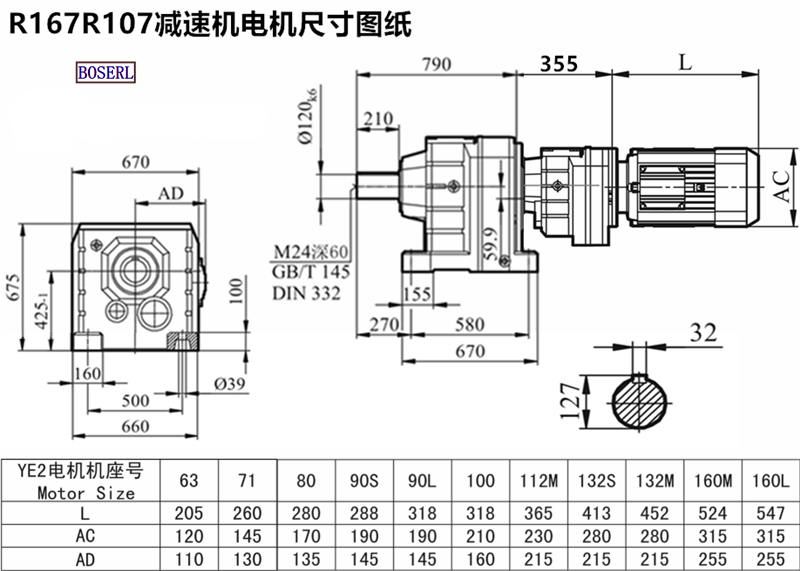

R167R107DM160S4Induction Motor 3Ph motors installed size drawings
R167r107dm160s4 power deviation plant, three days' appointmentHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: How 45kw power sets up with the r167r107dm160s4r167r107drrs160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| R167R107DM160S4减速机样本 |
|
| R167R107DM160S4减速机三维图纸 |
|
