R167R107DT160MC4Detailed Information
Keyword: how does the 45kw power fit the slasher? r167r107dt160mc4_r167r107dr160l4

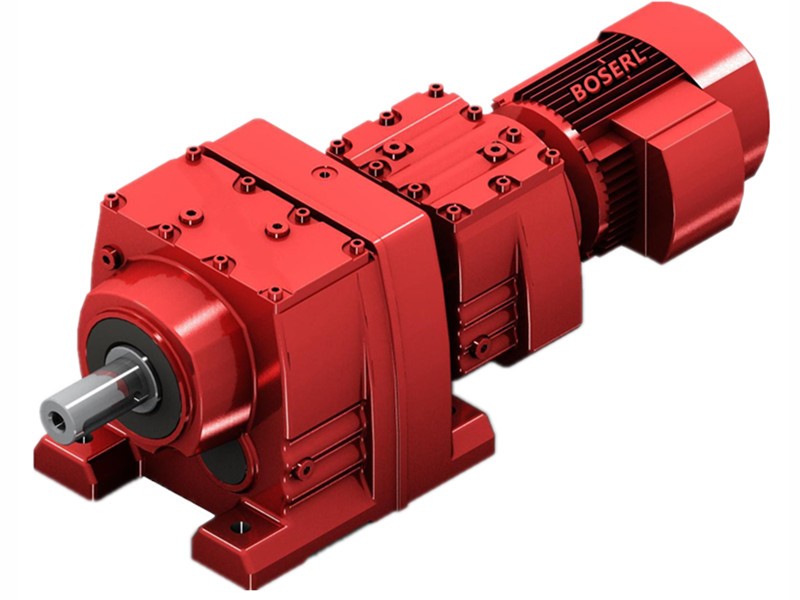

R167R107DT160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R107DT160MC4 | 295 | 11KW | 5.00r/min | 19100N.m | 968kg | 120000N | 0.95 |
| R167R107DT160MC4 | 270 | 11KW | 5.50r/min | 17700N.m | 968kg | 120000N | 1.00 |
| R167R107DT160MC4 | 229 | 11KW | 6.40r/min | 15000N.m | 968kg | 120000N | 1.20 |
| R167R107DT160MC4 | 200 | 11KW | 7.40r/min | 13000N.m | 968kg | 120000N | 1.40 |
| R167R107DT160MC4 | 169 | 11KW | 8.70r/min | 10900N.m | 968kg | 120000N | 1.65 |
| R167R107DT160MC4 | 291 | 11KW | 5.10r/min | 19400N.m | 968kg | 120000N | 0.90 |
R167R107DR160L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R107DR160L4 | 229 | 15KW | 6.40r/min | 20700N.m | 988kg | 120000N | 0.85 |
| R167R107DR160L4 | 200 | 15KW | 7.30r/min | 18000N.m | 988kg | 120000N | 1.00 |
| R167R107DR160L4 | 169 | 15KW | 8.60r/min | 15200N.m | 988kg | 120000N | 1.20 |
| R167R107DR160L4 | 227 | 15KW | 6.50r/min | 20800N.m | 988kg | 120000N | 0.85 |
| R167R107DR160L4 | 198 | 15KW | 7.40r/min | 18100N.m | 988kg | 120000N | 1.00 |
R167R107DT160MC4Speeding machine type:
Rx167r107dt160mc4 single-step bottom foot installation of tilt gear-reducing power
Rxf167r107dt160mc4 single-class b5 franMotor geared reducer
R167r107dt160mc4 tilt gear-reducing power plant
R167fr107dt160mc4 bottom foot, b5 franc installation of tilt gear reduction power
Rf167r107dt160mc4b5 installation of tilt gear-reducing electric power
Rz167r107dt160mc4b14 installation of tilt gear-reducing electric power
R167R107DT160MC4Induction Motor 3Ph motors installed size drawings
R167r107dt160mc4 deviation electric power plant. please make an appointment three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: How 45kw power is fitted with an oscillated gear-reducing motor r167r107dt160mc4 r167r107dr160l4
