R167R97DRS160S4Detailed Information
Keyword: how the 75kw power is matched with the axle reducer_r167r97drrs160s4_r167r97dr100lc4
R167R97DRS160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R97DRS160S4 | 335 | 11KW | 4.40r/min | 22200N.m | 916kg | 120000N | 0.80 |
| R167R97DRS160S4 | 303 | 11KW | 4.90r/min | 19900N.m | 916kg | 120000N | 0.90 |
| R167R97DRS160S4 | 279 | 11KW | 5.30r/min | 18400N.m | 916kg | 120000N | 1.00 |
R167R97DR100LC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R167R97DR100LC4 | 760 | 3KW | 1.90r/min | 13800N.m | 836kg | 120000N | 1.30 |
| R167R97DR100LC4 | 1123 | 3KW | 1.30r/min | 20300N.m | 836kg | 120000N | 0.90 |
| R167R97DR100LC4 | 999 | 3KW | 1.50r/min | 18100N.m | 836kg | 120000N | 1.00 |
| R167R97DR100LC4 | 861 | 3KW | 1.70r/min | 15600N.m | 836kg | 120000N | 1.15 |
| R167R97DR100LC4 | 656 | 3KW | 2.20r/min | 11600N.m | 836kg | 120000N | 1.55 |
| R167R97DR100LC4 | 503 | 3KW | 2.90r/min | 8950N.m | 836kg | 120000N | 2.00 |
R167R97DRS160S4Speeding machine type:
Rx167r97drrs160s4 single-step bottom foot installation of tilt gear-reducing electric power
Rxf167r97drrs160s4 single b5Motor geared reducer
R167r97drrs160s4 bottom foot installation of tilt gear-retard electric power
R167fr97drrs160s4 foot, b5frand installation of tilt gear reduction power
Rf167r97drrs160s4b5 installation of tilt gear-reducing power
Rz167r97drrs160s4b14 installation of tilt gear-reducing electric power

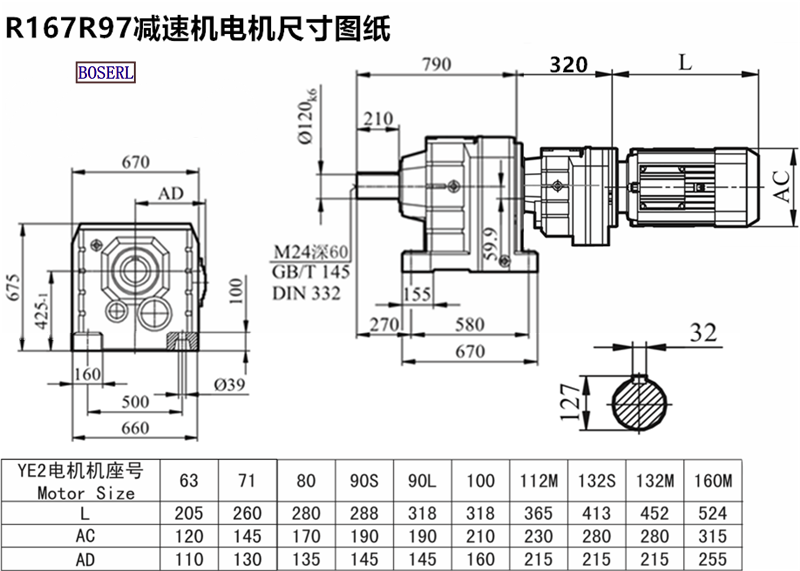

R167R97DRS160S4Induction Motor 3Ph motors installed size drawings
R167r97drrs160s4 power-reducing plant. please make an appointment three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
