R17DV71D4Detailed Information

R17DV71D4
prevnext

R17DV71D4

TEL：Email:[email protected]
  1. 详细信息

Keywords: output tm 268 -- r17dv71d4_r17dv71ms4_268 -- one minutereducing machine _ 268 rtg motors _ 268 rt/ minutereducing machine _ 268

R17DV71D4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R17DV71D438.610.37KW36.0rpm99N.m14.5kg770N0.85
R17DV71D436.200.37KW38.0rpm93N.m14.5kg1260N0.90
R17DV71D431.940.37KW43.0rpm82N.m14.5kg1910N1.05
R17DV71D428.320.37KW49.0rpm72N.m14.5kg1880N1.15
R17DV71D424.070.37KW57.0rpm62N.m14.5kg1830N1.40
R17DV71D425.230.37KW55.0rpm65N.m14.5kg1840N1.30
R17DV71D423.150.37KW60.0rpm59N.m14.5kg1820N1.45
R17DV71D419.710.37KW70.0rpm50N.m14.5kg1760N1.70
R17DV71D416.990.37KW81.0rpm44N.m14.5kg1710N1.95
R17DV71D415.840.37KW87.0rpm40N.m14.5kg1680N2.10
R17DV71D413.840.37KW100rpm35N.m14.5kg1630N2.40
R17DV71D412.980.37KW106rpm33N.m14.5kg1610N2.60
R17DV71D411.450.37KW121rpm29N.m14.5kg1560N2.80
R17DV71D410.150.37KW136rpm26N.m14.5kg1520N3.00
R17DV71D48.630.37KW160rpm22N.m14.5kg1460N3.30
R17DV71D47.550.37KW183rpm19N.m14.5kg1370N2.90
R17DV71D47.040.37KW196rpm18N.m14.5kg1350N3.10
R17DV71D46.150.37KW224rpm16N.m14.5kg1300N3.40
R17DV71D45.760.37KW239rpm15N.m14.5kg1280N3.60
R17DV71D45.090.37KW271rpm13N.m14.5kg1240N3.90
R17DV71D44.510.37KW306rpm12N.m14.5kg1200N4.20
R17DV71D43.830.37KW360rpm9.8N.m14.5kg1140N4.60

R17dv71ms4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R17DV71MS457.350.25KW23.0rpm105N.m14kg156N0.80
R17DV71MS453.760.25KW24.0rpm99N.m14kg785N0.85
R17DV71MS447.440.25KW27.0rpm87N.m14kg1630N1.00
R17DV71MS444.180.25KW29.0rpm81N.m14kg2000N1.05
R17DV71MS438.610.25KW34.0rpm71N.m14kg2200N1.20
R17DV71MS436.200.25KW36.0rpm66N.m14kg2180N1.30
R17DV71MS431.940.25KW41.0rpm59N.m14kg2120N1.45
R17DV71MS428.320.25KW46.0rpm52N.m14kg2070N1.65
R17DV71MS424.070.25KW54.0rpm44N.m14kg2000N1.90
R17DV71MS425.230.25KW52.0rpm46N.m14kg2020N1.85
R17DV71MS423.150.25KW56.0rpm42N.m14kg1980N2.00
R17DV71MS419.710.25KW66.0rpm36N.m14kg1910N2.40
R17DV71MS416.990.25KW77.0rpm31N.m14kg1840N2.70
R17DV71MS415.840.25KW82.0rpm29N.m14kg1810N2.90
R17DV71MS413.840.25KW94.0rpm25N.m14kg1740N3.40
R17DV71MS412.980.25KW100rpm24N.m14kg1720N3.60
R17DV71MS411.450.25KW114rpm21N.m14kg1660N3.90

R17dv71d4 gear deviator motorType:

Rx17dv71d4 single foot installation of tilt gear reduction power

Rxf17dv71d4 single b5 installation slopeMotor geared reducer

R17dv71d4 bottom foot installation of tilt gear reduction power

R17fdv71d4 bottom foot, b5frand installation of tilt gear deviation engine

Rf17dv71d4b5 installation of tilt gear-reducing power

Rz17dv71d4b14 installation of tilt gear-reducing electric power

Rx17dv71ms4 single-step foot installation of tilt gear-reducing power

Rxf17dv71ms4 single-scale b5 francs with tilt gear-reducing machines

R17dv71ms4 bottom foot installation of tilt gearreducing power

R17fdv71ms4 bottom foot, b5frand installation of tilt gear reduction power

Rf17dv71ms4b5 franc installation of tilt gear reduction power

Rz17dv71ms4b14 installation of tilt gear-retarding motors

Horizontal reducer.png

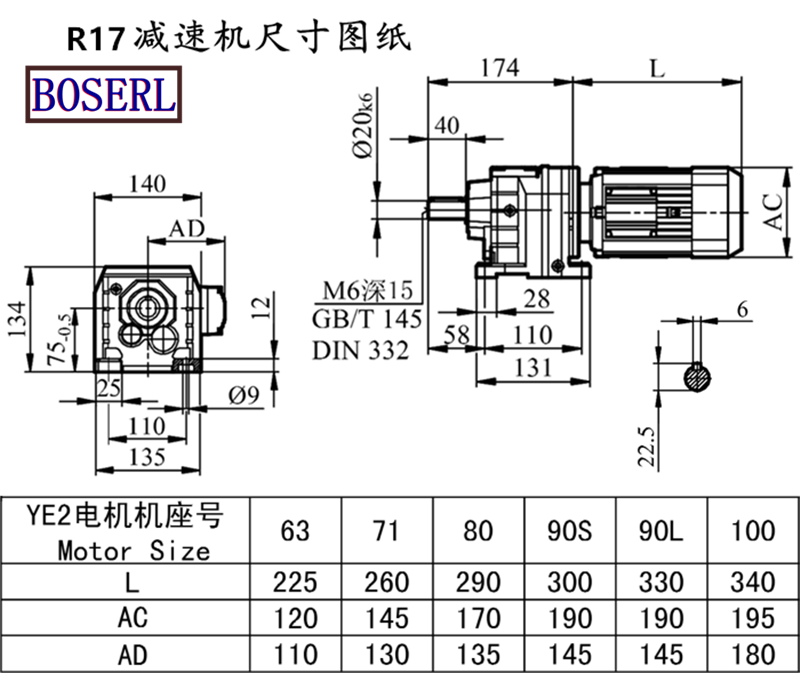

R17dv71d4 gear deviator motorInstall size drawings

R17 gear-reducing motors installed size drawings.pngHorizontal reducer.png

R17dv71d4 gear deviator motorProducer: Please make an appointment three days in advanceHorizontal reducer

Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
