Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Horizontal reducer

R27DT80MK4Detailed Information

R27DT80MK4
prevnext

R27DT80MK4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 0. 75 kw power-depressor_r27dt80mk4_r27dt80n4_0. 75kw power-depressor0. 75kw

R27DT80MK4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R27DT80MK439.250.55KW35.0rpm149N.m20.5kg3270N0.85
R27DT80MK436.790.55KW38.0rpm140N.m20.5kg3230N0.95
R27DT80MK432.470.55KW42.0rpm124N.m20.5kg3150N1.05
R27DT80MK428.780.55KW48.0rpm110N.m20.5kg3070N1.20
R27DT80MK424.470.55KW56.0rpm93N.m20.5kg2960N1.40
R27DT80MK422.320.55KW62.0rpm85N.m20.5kg2900N1.55
R27DT80MK419.350.55KW71.0rpm74N.m20.5kg2800N1.75
R27DT80MK418.080.55KW76.0rpm69N.m20.5kg2750N1.90
R27DT80MK415.630.55KW88.0rpm60N.m20.5kg2650N2.20
R27DT80MK413.280.55KW104rpm50N.m20.5kg2540N2.60
R27DT80MK411.860.55KW116rpm45N.m20.5kg2460N2.90
R27DT80MK410.130.55KW136rpm38N.m20.5kg2360N3.20
R27DT80MK49.410.55KW147rpm36N.m20.5kg2280N3.40
R27DT80MK48.160.55KW169rpm31N.m20.5kg2190N3.70
R27DT80MK47.630.55KW181rpm29N.m20.5kg2150N3.90
R27DT80MK46.590.55KW209rpm25N.m20.5kg2070N4.20
R27DT80MK45.600.55KW246rpm21N.m20.5kg1970N4.60
R27DT80MK45.000.55KW276rpm19N.m20.5kg1910N5.00
R27DT80MK44.270.55KW323rpm16N.m20.5kg1820N5.30
R27DT80MK44.000.55KW345rpm15N.m20.5kg1780N5.60
R27DT80MK43.370.55KW410rpm13N.m20.5kg1690N6.20

R27dt80n4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R27DT80N428.780.75KW50.0rpm144N.m21.5kg2860N0.90
R27DT80N424.470.75KW59.0rpm122N.m21.5kg2780N1.05
R27DT80N422.320.75KW64.0rpm111N.m21.5kg2730N1.15
R27DT80N419.350.75KW74.0rpm97N.m21.5kg2650N1.35
R27DT80N418.080.75KW79.0rpm90N.m21.5kg2610N1.45
R27DT80N415.630.75KW92.0rpm78N.m21.5kg2520N1.65
R27DT80N413.280.75KW108rpm66N.m21.5kg2430N1.95
R27DT80N411.860.75KW121rpm59N.m21.5kg2360N2.20
R27DT80N410.130.75KW142rpm50N.m21.5kg2270N2.40
R27DT80N49.410.75KW152rpm47N.m21.5kg2190N2.60
R27DT80N48.160.75KW176rpm41N.m21.5kg2110N2.80
R27DT80N47.630.75KW188rpm38N.m21.5kg2070N2.90
R27DT80N46.590.75KW218rpm33N.m21.5kg1990N3.20
R27DT80N45.600.75KW256rpm28N.m21.5kg1900N3.60
R27DT80N45.000.75KW287rpm25N.m21.5kg1850N3.80

R27dt80mk4 deviatorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

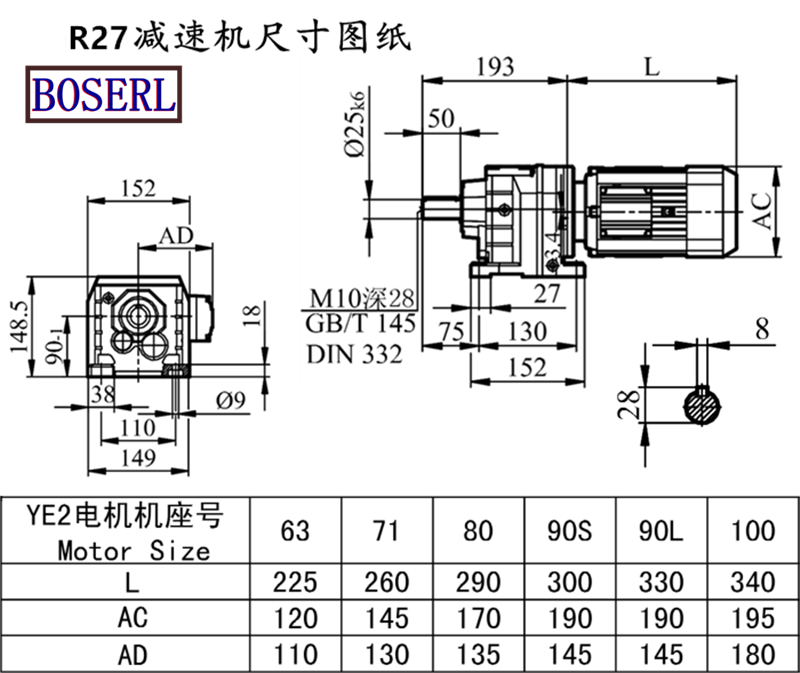

R27dt80mk4 deviatorInstall size drawings

R27 power-reducing motors installation size drawings.pngHorizontal reducer.png

R27dt80mk4 deviatorProduction plant display: three days' appointment for the factory

Horizontal reducerPresentation of application cases:

Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.


标签:  R27dt80mk4  r27dt80n4  0. 75kw power deviator 0. 75kw
tags： R27dt80mk4    r27dt80n4    0. 75kw power deviator 0. 75kw

Documentation related to this product / Related DownLoad

Product Document Name Click to download
R27DT80MK4减速机样本 Click to download
R27DT80MK4减速机三维图纸 Click to download
