R47DR100M4Detailed Information

R47DR100M4
prevnext

R47DR100M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: output-turner 225 laps/minutereducing motor _ r47dr100m4_r47dve100m4_output-turner 225 lap-minutereducing motor _ minute-turner 225 wheel-reducing motor _ minute-turner 225 laps

R47DR100M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R47DR100M419.27
2.2KW74.0rpm280N.m42Kg3550N1.05
R47DR100M416.222.2KW88.0rpm235N.m42Kg3460N1.15
R47DR100M414.562.2KW98.0rpm210N.m42Kg3390N1.25
R47DR100M412.542.2KW114rpm185N.m42Kg3300N1.35
R47DR100M411.792.2KW121rpm174N.m42Kg3260N1.40
R47DR100M410.152.2KW140rpm150N.m42Kg3160N1.55
R47DR100M49.072.2KW157rpm134N.m42Kg3080N1.65
R47DR100M48.012.2KW178rpm118N.m42Kg2990N1.75
R47DR100M47.762.2KW184rpm114N.m42Kg2900N1.45
R47DR100M46.962.2KW205rpm103N.m42Kg2830N1.55
R47DR100M46.002.2KW238rpm88N.m42Kg2730N1.75
R47DR100M45.642.2KW253rpm83N.m42Kg2690N1.85
R47DR100M44.852.2KW294rpm72N.m42Kg2590N2.10
R47DR100M44.342.2KW329rpm64N.m42Kg2520N2.30
R47DR100M43.832.2KW372rpm56N.m42Kg2440N2.60

R47dve100m4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R47DVE100M419.27
2.2KW74.0rpm280N.m42Kg3550N1.05
R47DVE100M416.222.2KW88.0rpm235N.m42Kg3460N1.15
R47DVE100M414.562.2KW98.0rpm210N.m42Kg3390N1.25
R47DVE100M412.542.2KW114rpm185N.m42Kg3300N1.35
R47DVE100M411.792.2KW121rpm174N.m42Kg3260N1.40
R47DVE100M410.152.2KW140rpm150N.m42Kg3160N1.55
R47DVE100M49.072.2KW157rpm134N.m42Kg3080N1.65
R47DVE100M48.012.2KW178rpm118N.m42Kg2990N1.75
R47DVE100M47.762.2KW184rpm114N.m42Kg2900N1.45
R47DVE100M46.962.2KW205rpm103N.m42Kg2830N1.55
R47DVE100M46.002.2KW238rpm88N.m42Kg2730N1.75
R47DVE100M45.642.2KW253rpm83N.m42Kg2690N1.85
R47DVE100M44.852.2KW294rpm72N.m42Kg2590N2.10
R47DVE100M44.342.2KW329rpm64N.m42Kg2520N2.30
R47DVE100M43.832.2KW372rpm56N.m42Kg2440N2.60

R47dr100m4reducing motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

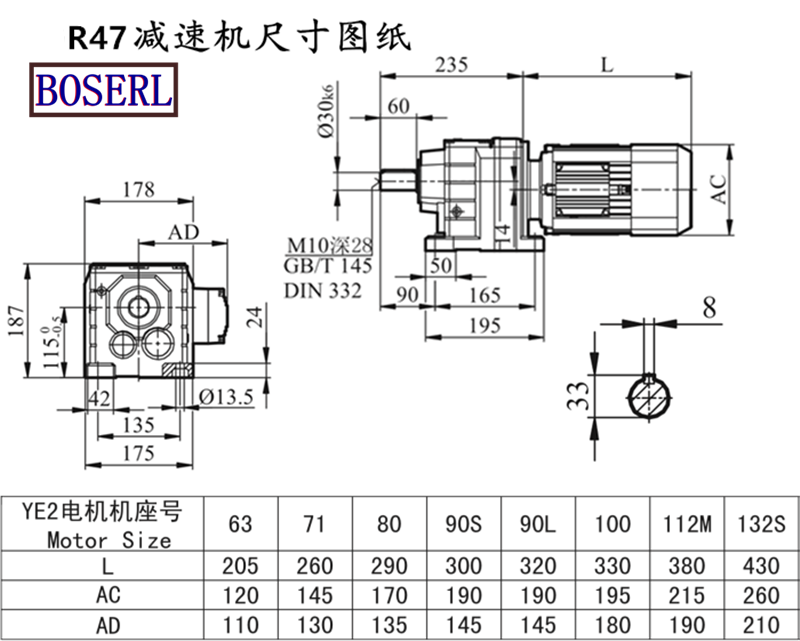

R47dr100m4reducing motorInstall size drawings

R47 Speed Depressor Power Motion Installation Size Drawings.pngHorizontal reducer.png

R47dr100m4reducing motorProduction plant display: three days' appointment for the factory

Horizontal reducerPresentation of application cases:

Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.


标签:  225 laps/minute speed-reducing machine   r47dr100m4rr47dve100m4   225 laps of speed-reducing machine   225 laps of gear-reducing tank motor   225 laps of speed-reducing machine   225 laps of power-reducing machine
tags： 225 laps/minute speed-reducing machine    r47dr100m4rr47dve100m4    225 laps of speed-reducing machine    225 laps of gear-reducing tank motor    225 laps of speed-reducing machine    225 laps of power-reducing machine
