R57DRE112M4Detailed Information
Keywords: output tm339 _r57dre112m4_r57dm112m4_339 rt339 +1 minute rt339 tm motor _ 339 rt/ minute decelerator _ 339 rt339
R57DRE112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R57DRE112M4 | 18.60 | 4KW | 78.0rpm | 485N.m | 64kg | 3660N | 0.90 |
| R57DRE112M4 | 16.79 | 4KW | 87.0rpm | 435N.m | 64kg | 3820N | 1.00 |
| R57DRE112M4 | 14.77 | 4KW | 99.0rpm | 385N.m | 64kg | 3790N | 1.15 |
| R57DRE112M4 | 13.95 | 4KW | 105rpm | 365N.m | 64kg | 3770N | 1.20 |
| R57DRE112M4 | 11.88 | 4KW | 123rpm | 310N.m | 64kg | 3700N | 1.30 |
| R57DRE112M4 | 10.79 | 4KW | 135rpm | 280N.m | 64kg | 3650N | 1.40 |
| R57DRE112M4 | 9.35 | 4KW | 156rpm | 240N.m | 64kg | 3570N | 1.50 |
| R57DRE112M4 | 9.06 | 4KW | 161rpm | 235N.m | 64kg | 3570N | 1.60 |
| R57DRE112M4 | 7.97 | 4KW | 183rpm | 205N.m | 64kg | 3490N | 1.70 |
| R57DRE112M4 | 7.53 | 4KW | 194rpm | 197N.m | 64kg | 3450N | 1.80 |
| R57DRE112M4 | 6.41 | 4KW | 228rpm | 168N.m | 64kg | 3330N | 2.00 |
| R57DRE112M4 | 5.82 | 4KW | 251rpm | 152N.m | 64kg | 3260N | 2.10 |
| R57DRE112M4 | 5.05 | 4KW | 289rpm | 132N.m | 64kg | 3160N | 2.30 |
| R57DRE112M4 | 4.39 | 4KW | 333rpm | 115N.m | 64kg | 3050N | 2.40 |
R57dm112m4 reduction machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R57DM112M4 | 14.77 | 5.5KW | 98.0rpm | 530N.m | 78kg | 1840N | 0.80 |
| R57DM112M4 | 13.95 | 5.5KW | 104rpm | 500N.m | 78kg | 2170N | 0.85 |
| R57DM112M4 | 11.88 | 5.5KW | 122rpm | 425N.m | 78kg | 2980N | 0.95 |
| R57DM112M4 | 10.79 | 5.5KW | 135rpm | 385N.m | 78kg | 3270N | 1.00 |
| R57DM112M4 | 9.35 | 5.5KW | 156rpm | 335N.m | 78kg | 3240N | 1.10 |
| R57DM112M4 | 7.97 | 5.5KW | 183rpm | 285N.m | 78kg | 3220N | 1.25 |
| R57DM112M4 | 7.53 | 5.5KW | 193rpm | 270N.m | 78kg | 3190N | 1.30 |
| R57DM112M4 | 6.41 | 5.5KW | 227rpm | 230N.m | 78kg | 3120N | 1.45 |
| R57DM112M4 | 5.82 | 5.5KW | 250rpm | 210N.m | 78kg | 3070N | 1.50 |
| R57DM112M4 | 5.05 | 5.5KW | 288rpm | 182N.m | 78kg | 2990N | 1.65 |
| R57DM112M4 | 4.39 | 5.5KW | 331rpm | 158N.m | 78kg | 2900N | 1.75 |
R57dre112m4 rollerType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

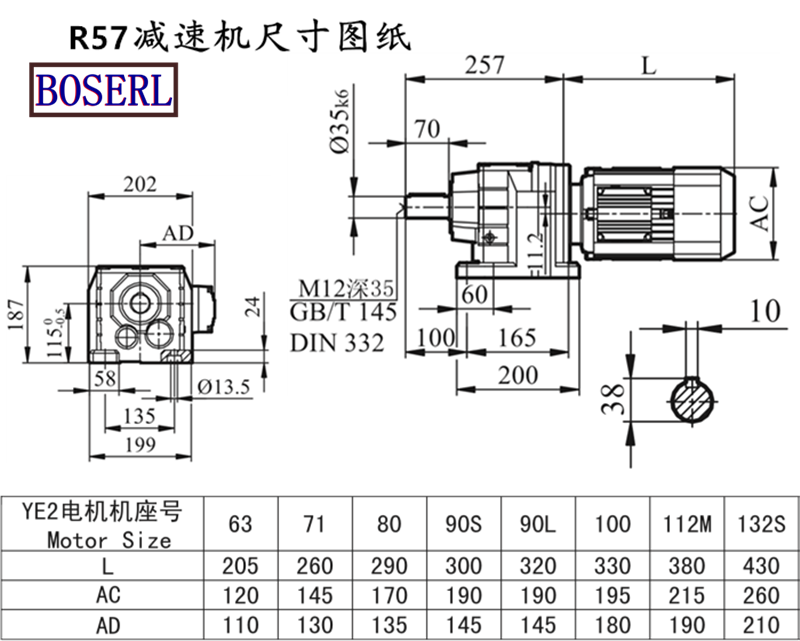

R57dre112m4 rollerInstall size drawings
R57dre112m4 rollerProduction plant display: three days' appointment for the factory
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
