R57DRE132MC4Detailed Information
Keywords: 5. 5 kilowatt electric motor reduction machine_r57dre132mc4_r57dre132ml4
R57DRE132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R57DRE132MC4 | 7.97 | 7.5KW | 184rpm | 385N.m | 91kg | 1130N | 0.90 |
| R57DRE132MC4 | 7.53 | 7.5KW | 195rpm | 365N.m | 91kg | 1420N | 0.95 |
| R57DRE132MC4 | 6.41 | 7.5KW | 229rpm | 310N.m | 91kg | 2130N | 1.05 |
| R57DRE132MC4 | 5.82 | 7.5KW | 252rpm | 280N.m | 91kg | 2470N | 1.15 |
| R57DRE132MC4 | 5.05 | 7.5KW | 291rpm | 245N.m | 91kg | 2750N | 1.25 |
| R57DRE132MC4 | 4.39 | 7.5KW | 335rpm | 210N.m | 91kg | 2800N | 1.30 |
R57dre132ml4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R57DRE132ML4 | 186.89 | 0.12KW | 7.40rpm | 155N.m | 23.5kg | 7920N | 2.90 |
| R57DRE132ML4 | 172.17 | 0.12KW | 8.00rpm | 143N.m | 23.5kg | 7940N | 3.20 |
| R57DRE132ML4 | 147.92 | 0.12KW | 9.30rpm | 123N.m | 23.5kg | 7960N | 3.70 |
| R57DRE132ML4 | 128.77 | 0.12KW | 11.0rpm | 107N.m | 23.5kg | 7980N | 4.20 |
R57dre132mc4 motor deceleratorType:

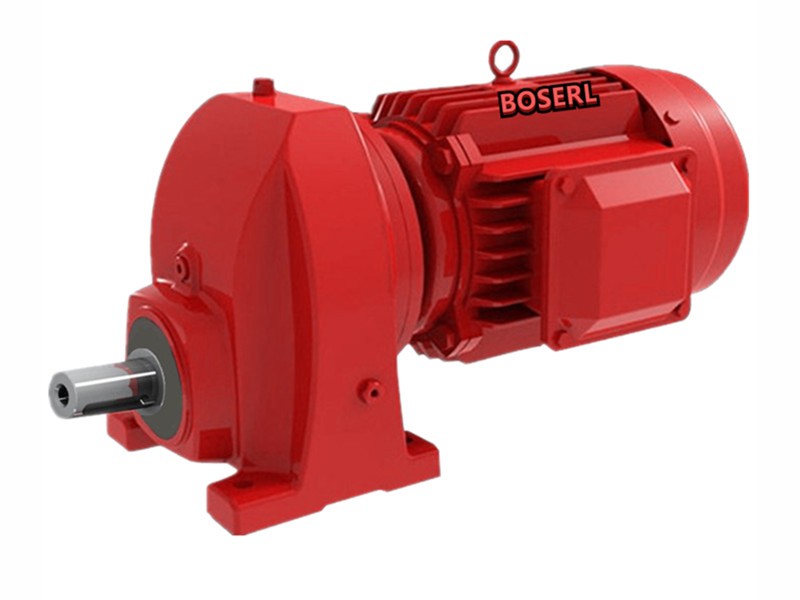

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

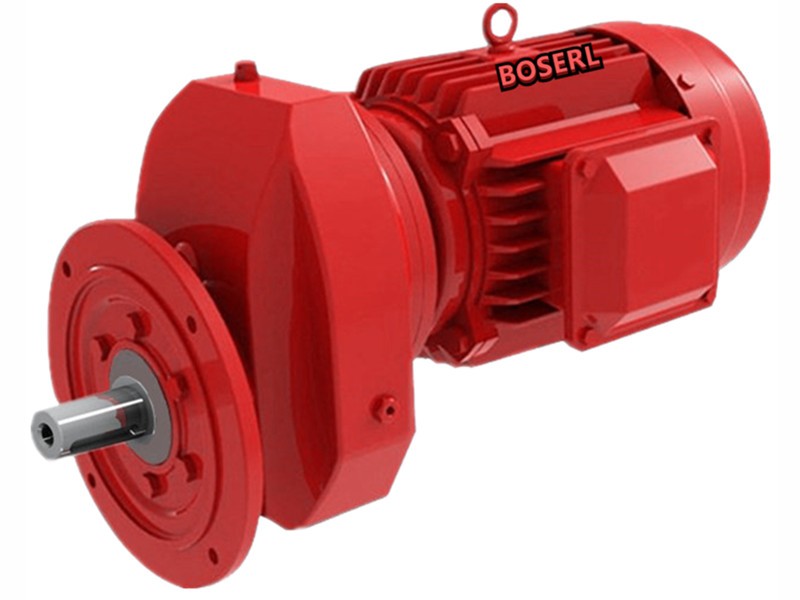

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction
R57dre132mc4 motor deceleratorInstall size drawings
R57dre132mc4 motor deceleratorProduction plant display: three days' appointment for the factory
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
