0. 18kw power plant with a double axle decelerator _r57r37drs71d4

R57R37DRS71D4Detailed Information

prevnext

R57R37DRS71D4

TEL：Email:[email protected]

详细信息

Keyword: 0. 18 kw power sets with a two-axis decelerator _r57r37drs71d4_r57r37dve63l4

R57R37DRS71D4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
R57R37DRS71D4	319	0.25KW	4.10r/min	515N.m	36.5kg	6050N	0.85
R57R37DRS71D4	273	0.25KW	4.80r/min	435N.m	36.5kg	7160N	1.05
R57R37DRS71D4	241	0.25KW	5.40r/min	380N.m	36.5kg	7380N	1.20
R57R37DRS71D4	215	0.25KW	6.00r/min	340N.m	36.5kg	7510N	1.30
R57R37DRS71D4	187	0.25KW	7.00r/min	300N.m	36.5kg	7630N	1.50
R57R37DRS71D4	164	0.25KW	7.90r/min	260N.m	36.5kg	7730N	1.75
R57R37DRS71D4	142	0.25KW	9.20r/min	225N.m	36.5kg	7800N	2.00
R57R37DRS71D4	324	0.25KW	4.00r/min	540N.m	36.5kg	4980N	0.85
R57R37DRS71D4	290	0.25KW	4.50r/min	480N.m	36.5kg	6950N	0.95
R57R37DRS71D4	262	0.25KW	5.00r/min	435N.m	36.5kg	7160N	1.05
R57R37DRS71D4	246	0.25KW	5.30r/min	405N.m	36.5kg	7280N	1.10
R57R37DRS71D4	220	0.25KW	5.90r/min	360N.m	36.5kg	7440N	1.25

R57r37dve63l4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
R57R37DVE63L4	454	0.18KW	2.90r/min	500N.m	32.5kg	6650N	0.90
R57R37DVE63L4	410	0.18KW	3.20r/min	450N.m	32.5kg	7090N	1.00
R57R37DVE63L4	471	0.18KW	2.80r/min	535N.m	32.5kg	5250N	0.85
R57R37DVE63L4	357	0.18KW	3.70r/min	400N.m	32.5kg	7300N	1.10
R57R37DVE63L4	319	0.18KW	4.10r/min	355N.m	32.5kg	7460N	1.25
R57R37DVE63L4	273	0.18KW	4.80r/min	300N.m	32.5kg	7630N	1.50
R57R37DVE63L4	241	0.18KW	5.50r/min	260N.m	32.5kg	7730N	1.75
R57R37DVE63L4	215	0.18KW	6.10r/min	230N.m	32.5kg	7790N	1.95
R57R37DVE63L4	359	0.18KW	3.70r/min	420N.m	32.5kg	7230N	1.05
R57R37DVE63L4	324	0.18KW	4.10r/min	375N.m	32.5kg	7380N	1.20
R57R37DVE63L4	290	0.18KW	4.60r/min	335N.m	32.5kg	7530N	1.35
R57R37DVE63L4	262	0.18KW	5.00r/min	300N.m	32.5kg	7620N	1.50
R57R37DVE63L4	246	0.18KW	5.40r/min	280N.m	32.5kg	7680N	1.60
R57R37DVE63L4	220	0.18KW	6.00r/min	245N.m	32.5kg	7750N	1.80
R57R37DVE63L4	188	0.18KW	7.00r/min	210N.m	32.5kg	7830N	2.10
R57R37DVE63L4	159	0.18KW	8.30r/min	177N.m	32.5kg	7890N	2.60

R57r37drrs71d4 deviation motorType:

Rx57r37drrs71d4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors

Rxf57r37drrs71d4 power-motion single level b5 franMotor geared reducer

R57r37drrs71d4 electric motor base foot installation of tilt gear reduction power

R57fr37drrs71d4 motor base foot forreducing machines, b5franc installation of tilt gear-reducing motors

Rf57r37drrs71d4 electric motor b5 frf installation of tilt gear reduction power

Rz57r37drs71d4 electric motor b14frane installation of tilt gear reduction power

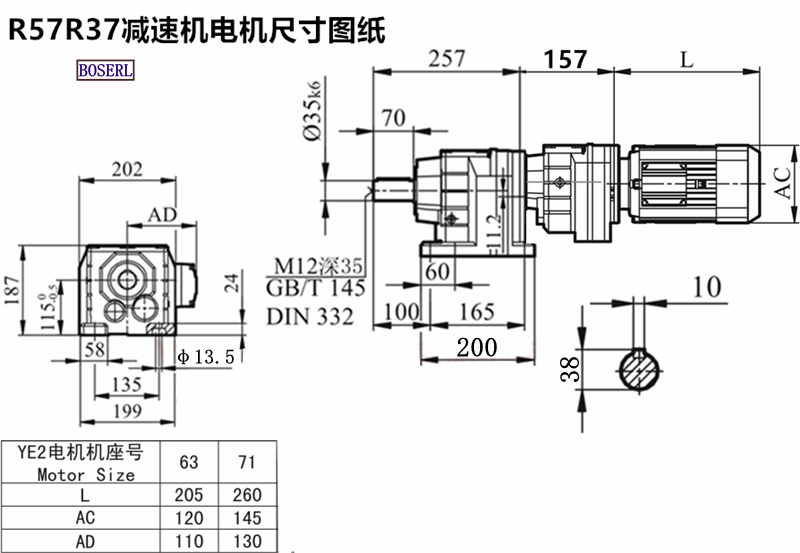

R57r37drrs71d4 deviation motorInstall size drawings

Horizontal reducer.png

R57r37drs71d4 power-reducing plant. please make an appointment three days in advanceHorizontal reducer

Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
