R67DRE132L4Detailed Information
Keywords: 5. 5 kw power-driver _r67dre132l4_r67dre132mc4
R67DRE132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67DRE132L4 | 12.7 | 7.5KW | 116rpm | 615N.m | 98kg | 4420N | 0.85 |
| R67DRE132L4 | 11.54 | 7.5KW | 127rpm | 560N.m | 98kg | 5020N | 0.90 |
| R67DRE132L4 | 10.00 | 7.5KW | 147rpm | 485N.m | 98kg | 5750N | 0.95 |
| R67DRE132L4 | 8.70 | 7.5KW | 169rpm | 420N.m | 98kg | 5900N | 1.05 |
| R67DRE132L4 | 7.79 | 7.5KW | 189rpm | 375N.m | 98kg | 5610N | 1.00 |
| R67DRE132L4 | 7.36 | 7.5KW | 200rpm | 355N.m | 98kg | 5760N | 1.05 |
| R67DRE132L4 | 6.27 | 7.5KW | 235rpm | 305N.m | 98kg | 5560N | 1.10 |
| R67DRE132L4 | 5.70 | 7.5KW | 258rpm | 275N.m | 98kg | 5450N | 1.10 |
| R67DRE132L4 | 4.93 | 7.5KW | 298rpm | 240N.m | 98kg | 5270N | 1.20 |
| R67DRE132L4 | 4.29 | 7.5KW | 342rpm | 205N.m | 98kg | 5100N | 1.30 |
| R67DRE132L4 | 7.97 | 7.5KW | 184rpm | 385N.m | 98kg | 1130N | 0.90 |
| R67DRE132L4 | 7.53 | 7.5KW | 195rpm | 365N.m | 98kg | 1420N | 0.95 |
| R67DRE132L4 | 6.41 | 7.5KW | 229rpm | 310N.m | 98kg | 2130N | 1.05 |
R67dre132mc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67DRE132MC4 | 199.81 | 0.12KW | 6.9rpm | 166N.m | 30.5kg | 10300N | 3.60 |
| R67DRE132MC4 | 184.07 | 0.12KW | 7.5rpm | 153N.m | 30.5kg | 10400N | 3.90 |
R67dre132l4 motor deceleratorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

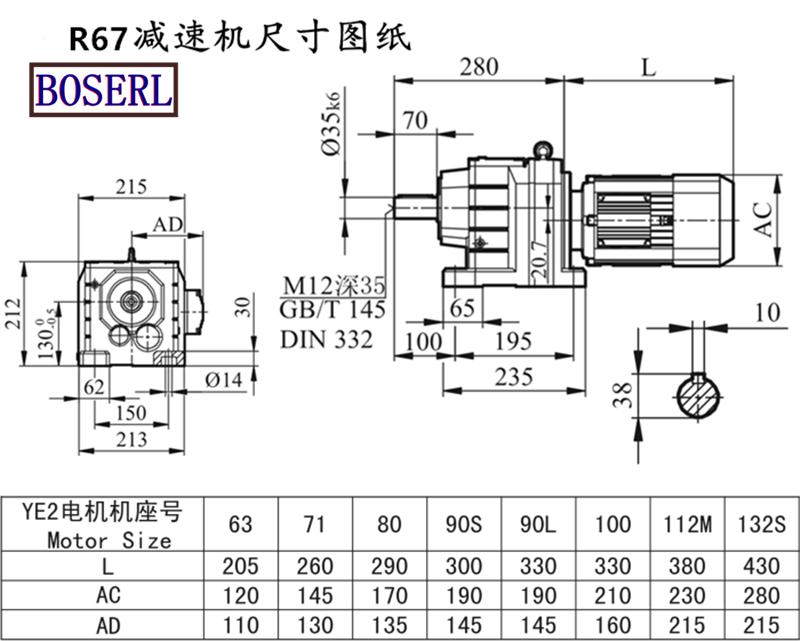

R67dre132l4 motor deceleratorInstall size drawings
R67dre132l4 motor deceleratorProduction plant display: three days' appointment for the factory
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: 5. 5kw power-driver r67dre132l4 r67dre132mc4
- 上一条R67DRE132ML4
- 下一条R67DM132MC4
